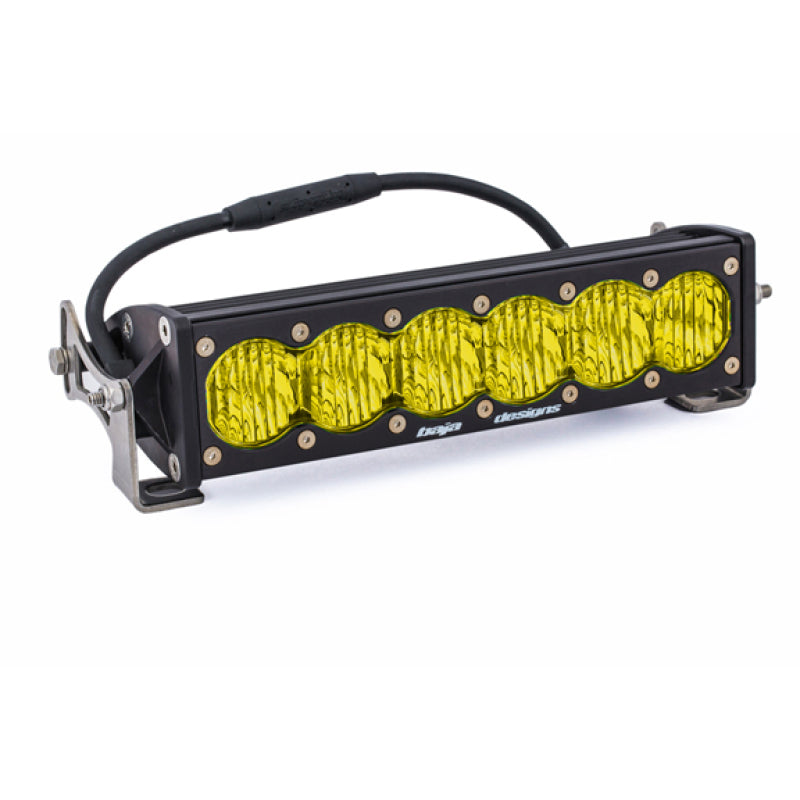

Baja Designs 451014 OnX6+ 10 in. LED Light Bar Amber Wide Cornering

Vehicle Fitment

• Universal Fit - compatible with any vehicle, truck, UTV, ATV, motorcycle, marine, agricultural, military, or industrial application. No vehicle-specific fitment restrictions apply.

Fitment Notes

• Universal mounting brackets are included and are compatible with industry-standard aftermarket mounting systems across all applications.
• Vertical aim adjustment is built into the mounting system and can be locked in for the optimal beam angle regardless of mount location.
• Wiring harness is NOT included. For this 10-inch bar, use Baja Designs On/Off Wiring Harness (p/n 640115), compatible with OnX6+ 10-20-inch bars.
• This specific SKU (451014) is the 10-inch, Baja Amber lens, Wide Cornering (Lighting Zones 1 & 2) configuration - provides a 42-degree flattened horizontal beam optimized for cornering, dust, and fog conditions.
• For white/clear lens versions of the same 10-inch Wide Cornering bar, refer to SKU 451004. For Amber Driving/Combo, refer to SKU 451013.

Features

• Baja Designs trademarked High Speed Spot™ reflector technology - the same reflector system used by Team Enlightened professional racers - delivers the furthest-projecting beam available in any LED light bar.
• Wide Cornering beam pattern (Lighting Zones 1 & 2) produces a 42-degree flattened horizontal spread, purpose-built for cornering visibility, dust penetration, and fog conditions at low to mid speeds.
• Baja Amber lens provides enhanced contrast and depth perception in low-visibility environments including dust, fog, rain, and sand - reduces eye fatigue compared to white light in these conditions.
• BMT Battery Management Technology eliminates flickering at low voltage, adds overcurrent/spike protection for vehicle wiring, and safeguards both the light and the vehicle's electrical system.
• CopperDrive® technology drives all LEDs at 100 percent power capacity for maximum output efficiency and consistent lumen performance over the full LED lifespan.
• MoistureBlock® technology ensures the light bar remains waterproof and dustproof even if the power cord is cut - exceeds standard IP69K protection expectations.
• uService® field-serviceable design allows lenses and optics to be replaced or upgraded without voiding the warranty - the only LED light bar line offering this capability.
• ClearView® optical system delivers all available light precisely where it is needed, eliminating wasted output and maximizing usable illumination in front of the vehicle.
• 5000K Daylight color temperature closely matches natural sunlight, reducing driver eye fatigue during extended use and improving object color recognition at night.
• High beam / low beam dual-mode operation via included Hi-Low dongle - allows output to be reduced from 10,817 lumens (high) to 9,230 lumens (low) for different driving conditions.

Specifications

• Part Number: 451014
• Product: OnX6+ 10-Inch Straight LED Light Bar
• Beam Pattern: Wide Cornering (Lighting Zones 1 & 2) - 42° Horizontal Spread
• Lens Color: Baja Amber
• Lens Material: Hardcoated Polycarbonate
• Housing Material: Aircraft Grade Aluminum with Mil-Spec Hard Anodize
• Bezel Material: Billet Machined Aluminum
• Hardware / Bracket Material: Stainless Steel
• Housing Color: Black
• LED Quantity: 6
• Lighting Modes: High Beam / Low Beam
• Brightness: 10,817 lumens (High) / 9,230 lumens (Low)
• Wattage: 106.26W
• Amperage: 7.7A
• LED Life Expectancy: 49,930 hours
• Dimensions: 10 in. (L) x 4.29 in. (D) x 2.69 in. (H)
• Weight: 4.25 lbs.
• IP Rating: IP69K (waterproof up to 9 ft., pressure washable)
• Impact Rating: IK10 Compliant (mechanical impact testing)
• Durability Standard: Exceeds MIL-STD-810G (Mil-Spec Testing)
• Overvoltage Protection: Built-In
• Lighting Type: Forward Projecting
• Fitment: Universal
• Wiring Harness: Not Included (use p/n 640115 for 10-20 in. bars)
• Warranty: Limited Lifetime (light bar); 30-Day Money Back Satisfaction Guarantee

Included Components

• 1x Baja Designs OnX6+ 10-Inch Straight LED Light Bar (Amber, Wide Cornering)
• 1x Set of Universal Mounting Brackets (stainless steel hardware)
• 1x Hi-Low Dongle (for high beam / low beam switching)

Product Description

The Baja Designs OnX6+ 10-Inch Straight LED Light Bar (451014) in Baja Amber with Wide Cornering optics is engineered for drivers who demand maximum near-field and lateral visibility in dust, fog, rain, and sand conditions. The Wide Cornering beam pattern - covering Lighting Zones 1 and 2 - projects a 42-degree flattened horizontal spread that illuminates the periphery of the road or trail rather than pushing light straight ahead, making it ideal as a supplemental fog and cornering light or as a primary light for slow-speed off-road navigation. The Baja Amber lens further enhances contrast and depth perception in these environments, cutting through suspended particulate more effectively than white light while reducing driver eye fatigue on extended runs.

Built around Baja Designs' trademarked High Speed Spot™ reflector - the same technology used in their Team Enlightened race program - the OnX6+ delivers class-leading output at 10,817 lumens on high and 9,230 lumens on low through six high-performance LEDs driven at 100 percent power via CopperDrive® technology. The aircraft-grade aluminum housing with Mil-Spec hard anodize finish, combined with IP69K waterproof and IK10 impact certifications, ensures the bar survives pressure washing, submersion, rock strikes, and the sustained vibration of serious off-road use. MoistureBlock® technology seals the system even if the wiring cord is cut, and the bar exceeds MIL-STD-810G environmental testing requirements.

Installation is universal and straightforward - the included stainless steel mounting brackets are compatible with industry-standard aftermarket mounting positions across trucks, UTVs, ATVs, Jeeps, motorcycles, and specialty vehicles. Vertical aim adjustment allows the beam to be dialed in and locked regardless of mounting location. Baja Designs' uService® technology allows lenses and optics to be replaced or upgraded in the field without voiding the warranty - a feature unique to Baja Designs in the LED light bar market. Note that a wiring harness is not included; use Baja Designs part number 640115 (On/Off Wiring Harness for OnX6+ 10-20-inch bars). This light bar is backed by Baja Designs' Limited Lifetime Warranty and 30-Day Satisfaction Guarantee.
