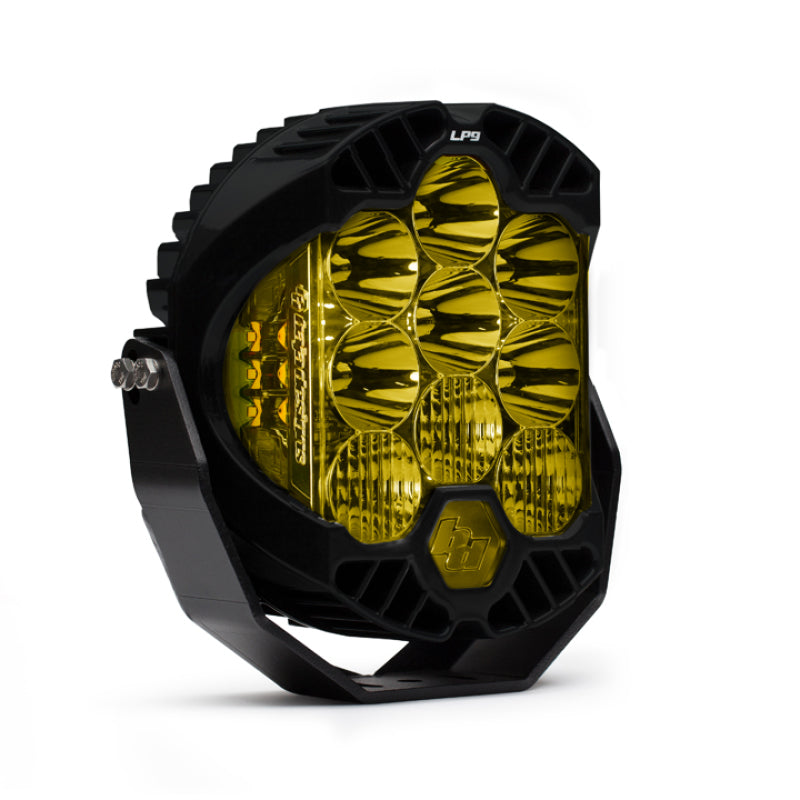

Baja Designs 350013 LP9 Sport LED Light Pod Driving/Combo Amber -9421 Lumens/88W

Vehicle Fitment

• Universal Fitment -- No vehicle-specific application

Fitment Notes

• Wiring harness not included -- compatible harness: 640175 (sold separately)
• Simple on/off function only -- no hi/lo beam switching
• No amber backlit feature -- available on LP9 Pro and Racer Editions only
• Amber lens intended for off-road and adverse weather use -- verify local road use laws before installation

Features

• 9 forward-projecting LEDs
• 200-degree spread via Integrated Peripheral Technology (IPT)
• Direct Ducted Cooling (DDC) thermal management
• uService replaceable lens and optics
• CopperDrive LED driver technology
• MoistureBlock waterproof and submersible construction
• ClearView optics
• 5,000K daylight color temperature
• Built-in overvoltage protection
• Stainless steel mounting hardware included
• Deutsch DT06-4S terminal connector
• Exceeds MIL-STD-810G durability standard
• IK10 mechanical impact rating
• IP69K waterproof rating -- submersible up to 9 ft, pressure washable
• Limited lifetime warranty

Specifications

• Beam Pattern: Driving/Combo
• Lens Color: Baja Amber
• Lens Material: Hardcoated Polycarbonate
• Forward Lumens: 9,421
• IPT Lumens: 2,302
• Main Wattage: 88.32W
• Main Amperage: 6.4A
• IPT Wattage: 21W
• IPT Amperage: 1.52A
• Color Temperature: 5,000K
• Rated Life: 49,930 hours
• Housing Material: Powder Coat Cast Aluminum
• Housing Color: Black
• Bezel Material: Powder Coat Cast Aluminum
• Terminal Connector: Deutsch DT06-4S
• Dimensions: 8" H x 8" L x 3.25" D
• Weight: 6.5 lbs
• Patent No.: 5,504,603
• UPC: 819314027067

Included Components

• 1x LP9 Sport LED light pod
• 1x Stainless steel mounting hardware kit

Product Description

The Baja Designs 350013 LP9 Sport is a single full-size 8-inch round LED auxiliary light pod in Driving/Combo beam pattern with Baja Amber lens. It delivers 9,421 forward lumens at 88.32 watts through 9 forward-projecting LEDs, with an additional 2,302 lumens of peripheral illumination via 6 dedicated IPT LEDs at 21 watts -- producing a 200-degree spread of usable light that eliminates the need for separate cornering lights. The Baja Amber lens enhances contrast in dust, fog, rain, and other low-visibility conditions while reducing glare and eye strain at night. Direct Ducted Cooling channels airflow from the front of the housing across the rear heat sinks to maintain consistent output during extended high-demand use. CopperDrive technology drives all LEDs at 100% capacity without voltage-induced degradation, while MoistureBlock construction provides IP69K-rated waterproof and pressure-washable protection. The LP9 Sport is rated for 49,930 hours of service life and exceeds MIL-STD-810G durability standards with an IK10 mechanical impact rating. Built-in overvoltage protection is standard. The LP9 Sport is designed for simple on/off operation and does not include hi/lo beam switching or the amber backlit feature -- both of which are available on the LP9 Pro and Racer Editions. The uService system allows field replacement of the lens and optics without voiding the lifetime warranty. Wiring harness 640175 is required for installation and
