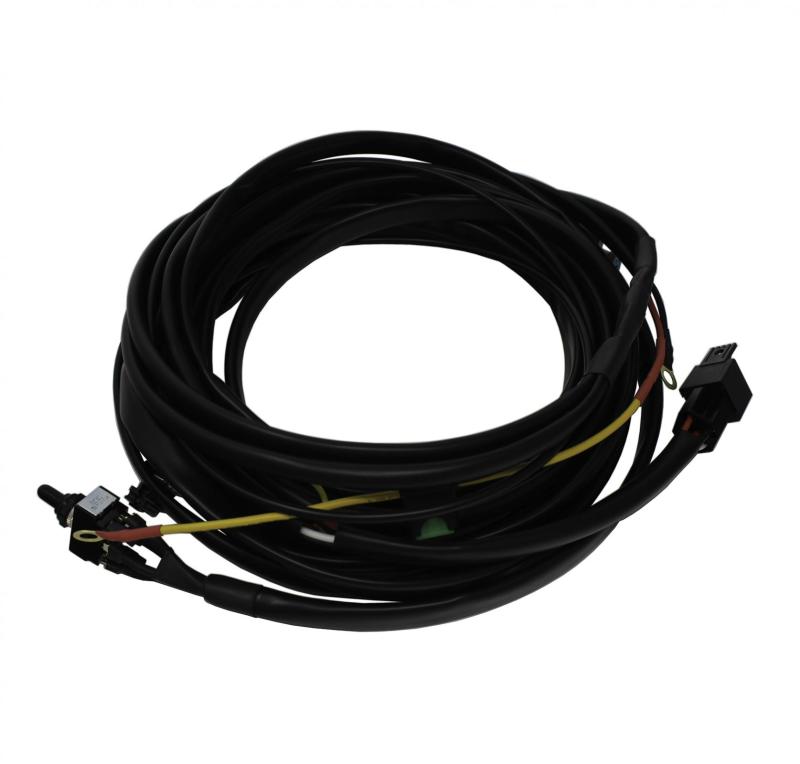

Baja Designs 640172 LP6/LP9 Pro 2-Light Wiring Harness Universal Hi/Lo Switch

Vehicle Fitment

• Universal -- fits any vehicle equipped with Baja Designs LP6 or LP9 Pro Series lights

Fitment Notes

• Not vehicle-specific -- for use with Baja Designs LP6/LP9 Pro Series lights only
• Powers up to 2 lights maximum (built-in splitter)
• Not compatible with other Baja Designs light series without a separate application-specific harness

Features

• Plug and play Deutsch style connectors
• Built-in splitter powers two LP9/LP6 Pro lights from one harness
• 3-position, 30amp DC rated DPDT On-Off-On switch
• Independent high and low beam operation
• Large automotive-style ring terminals
• Extra wire lead with splice connector for amber DRL operation
• 15-foot length, instrument cluster to light mounting location

Specifications

• Compatible lights: LP6 Pro, LP9 Pro
• Maximum lights powered: 2
• Switch type: 3-position DPDT, On-Off-On
• Switch rating: 30 amp DC
• Harness length: 15 ft (144")
• Connector type: Deutsch style

Included Components

• 1x Wiring harness with built-in splitter
• 1x DPDT On-Off-On switch
• 1x Set of ring terminals
• 1x DRL splice connector lead

Product Description

The Baja Designs 640172 is a purpose-built wiring harness for LP6 and LP9 Pro Series lights, giving owners full versatility and functionality from their lights in one complete, plug-and-play package. Deutsch style connectors make installation straightforward, while a built-in splitter allows this single harness to power up to two LP9 or LP6 Pro lights simultaneously.

A 3-position, 30amp DC rated DPDT On-Off-On switch operates high and low beam independently, giving drivers precise control over which lights are active in different driving conditions. An extra wire lead with a splice connector is included for operating an amber daytime running light function, adding real flexibility without requiring a separate accessory harness.

Running 15 feet from the instrument cluster to the light mounting location, this harness ships with large automotive-style ring terminals for a secure, reliable electrical connection. Built specifically for LP6/LP9 Pro Series lights, this harness is the correct, purpose-matched wiring solution rather than a generic universal switch kit -- built for Baja Designs LP6/LP9 Pro owners who want a clean, fully-featured install without splicing together a harness themselves.
