Baja Designs 440022 Squadron Sport 2.0 A-Pillar Kit for 2021-2026 F-150 Raptor

Vehicle Fitment

• 2021-2026 Ford F-150 Raptor, 3.5L EcoBoost V6, 4WD
• 2024-2026 Ford F-150 Raptor 37, 3.5L EcoBoost V6, 4WD
• 2024-2026 Ford F-150 Raptor R, 5.2L Supercharged V8, 4WD

Fitment Notes

• Vehicle-specific A-pillar mounting kit engineered for the 2021-2026 Ford F-150 Raptor platform.
• Raptor 37 and Raptor R applications begin in 2024.
• Not confirmed for non-Raptor F-150 models.
• 2020 and earlier F-150 Raptor models are excluded.

Features

• Squadron 2.0 Sport LED auxiliary lighting system.
• 3,200 lumens per light pod.
• 30W power consumption per light pod.
• Driving/Combo beam pattern for forward and peripheral illumination.
• RGBW backlight with 9 selectable colors.
• uService clip-in reflector system for tool-free lens changes.
• 12-32V operating range.
• IP69K-rated construction for high-pressure washing and water exposure.
• IK10 mechanical impact resistance.
• Exceeds MIL-STD-810G durability requirements.
• 5000K daylight color temperature.
• 4-pin Deutsch weather-sealed electrical connector.
• Vehicle-specific A-pillar brackets provide increased vertical adjustment.
• Designed for integration with factory Ford Raptor upfitter switches.

Specifications

• Brand: Baja Designs
• Part Number: 440022
• Product: Squadron 2.0 Sport A-Pillar Light Kit
• Position: Left and right A-pillars
• Quantity: 2 LED light pods
• Output: 3,200 lumens per pod
• Power: 30W per pod
• Current Draw: 2.2A per pod at 13.8V
• Operating Voltage: 12-32V
• Color Temperature: 5000K
• Beam Pattern: Driving/Combo
• Additional Lens Options: Spot and Wide Cornering
• Backlight: RGBW, 9 selectable colors
• Connector: 4-pin Deutsch
• Waterproof Rating: IP69K
• Impact Rating: IK10
• Lens Material: Hard-coated polycarbonate
• Housing Material: Powder-coated cast aluminum
• Drivetrain: 4WD

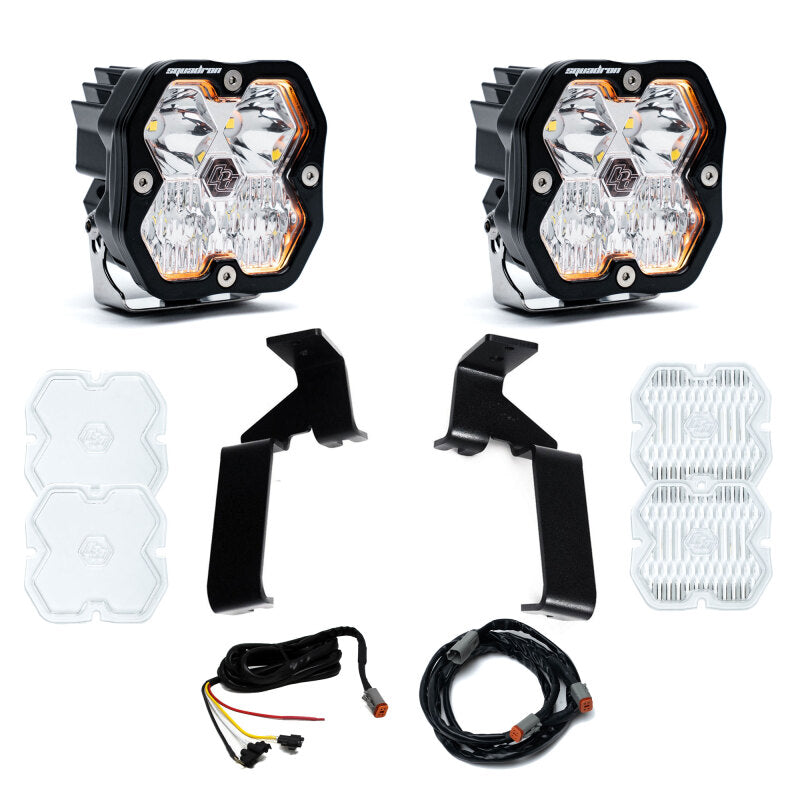

Included Components

• 2x Squadron 2.0 Sport LED light pods
• 2x Ford F-150 Raptor A-pillar mounting brackets
• 1x Upfitter Harness
• 1x 55-inch Splitter Harness
• 2x Squadron 2.0 Spot Clear Lens Kits
• 2x Squadron 2.0 Wide Cornering Clear Lens Kits
• 1x Mounting hardware set

Product Description

The Baja Designs 440022 Squadron Sport 2.0 A-Pillar Kit is a vehicle-specific auxiliary lighting system engineered for the 2021-2026 Ford F-150 Raptor, 2024-2026 Raptor 37, and 2024-2026 Raptor R. The kit supplies two Squadron 2.0 Sport LED pods producing 3,200 lumens each at 30W, with a Driving/Combo beam designed to provide useful forward reach while maintaining wider trail illumination.

Each pod features RGBW backlighting with nine selectable colors, a 4-pin Deutsch connector, IP69K protection, IK10 impact resistance, and a hard-coated polycarbonate lens. The uService clip-in reflector system allows the included Spot and Wide Cornering lenses to be exchanged without tools, providing additional beam-pattern flexibility for different off-road conditions.

The included Raptor-specific A-pillar brackets provide increased vertical adjustment for beam aiming, while the Upfitter Harness and 55-inch Splitter Harness are designed for integration with the factory Raptor upfitter-switch system. The kit is intended for 4WD Raptor models and is not confirmed for standard non-Raptor F-150 configurations.
