Baja Designs 440021 Squadron Pro 2.0 A-Pillar Kit for 21-25 Ford F-150 Raptor

Vehicle Fitment

• 2021-2025 Ford F-150 Raptor, 3.5L EcoBoost V6, 4WD
• 2023-2025 Ford F-150 Raptor R, 5.2L Supercharged V8, 4WD

Fitment Notes

• Vehicle-specific A-pillar mounting kit for the 2021-2025 Ford F-150 Raptor platform.
• Raptor R coverage begins with the 2023 model year.
• Not confirmed for non-Raptor F-150 trims.
• 2026 Ford F-150 Raptor/Raptor R fitment is not confirmed by the validated sources and is therefore not listed.

Features

• Squadron Pro 2.0 LED auxiliary lighting system.
• 5,921 raw lumens per light.
• 65W output per light.
• Driving/Combo beam pattern for combined near-field and long-range illumination.
• Vehicle-specific A-pillar brackets designed for the Raptor platform.
• No-drill mounting design using existing vehicle mounting points.
• Wiring harness compatible with Ford factory upfitter switches.
• IP69K-rated construction for demanding off-road environments.
• Deutsch 4-pin electrical connectors for secure connections.
• Hard-anodized and powder-coated cast-aluminum housing.
• Hard-coated polycarbonate clear lenses for durability and UV resistance.
• Redesigned brackets provide increased vertical adjustment for beam aiming.
• LED life expectancy rated at 49,930 hours.

Specifications

• Brand: Baja Designs
• Part Number: 440021
• Light: Squadron Pro 2.0
• Position: A-Pillar, left and right
• Quantity: 2 lights
• Beam Pattern: Driving/Combo
• Output: 5,921 raw lumens per light
• Power: 65W per light
• Current Draw: 4.7A per light at 13.8V
• Operating Voltage: 12-32V DC
• IP Rating: IP69K
• Connector: Deutsch 4-pin
• Housing: Hard-anodized and powder-coated cast aluminum
• Lens: Hard-coated polycarbonate, clear
• LED Life Expectancy: 49,930 hours
• Drivetrain: 4WD

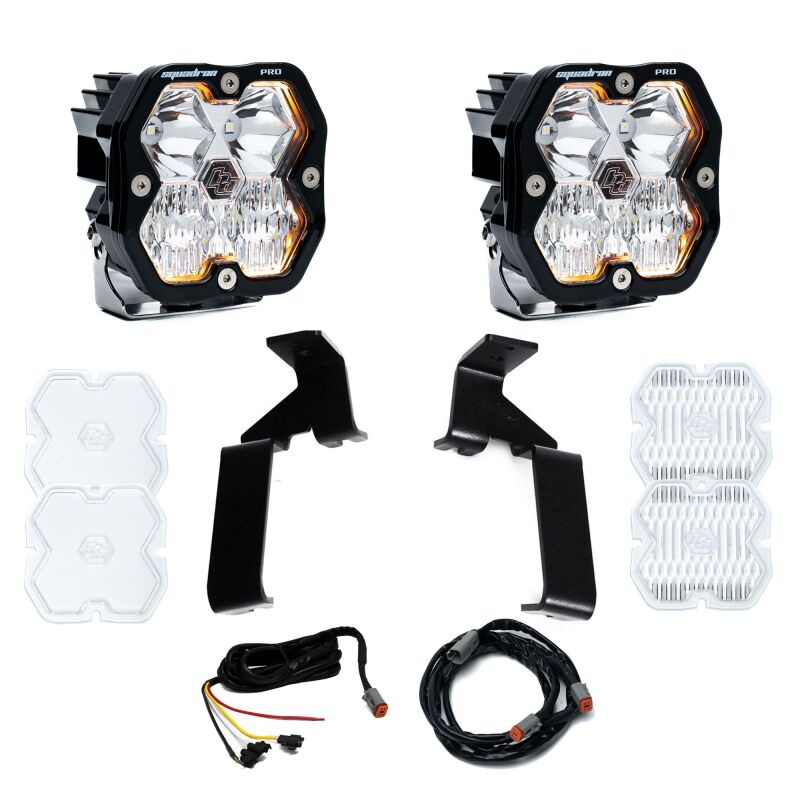

Included Components

• 2x Squadron Pro 2.0 LED lights with clear Driving/Combo beam
• 2x Vehicle-specific Raptor A-pillar mounting brackets
• 1x Toggle-switch 4-pin wiring harness
• 2x Clear/Driving Combo lens kits
• 2x Clear/Wide Cornering lens kits
• 1x Stainless mounting hardware set

Product Description

The Baja Designs 440021 Squadron Pro 2.0 A-Pillar Kit is a vehicle-specific auxiliary lighting package engineered for the 2021-2025 Ford F-150 Raptor and 2023-2025 F-150 Raptor R. The kit includes two high-output Squadron Pro 2.0 LED lights producing 5,921 raw lumens each at 65W, with a Driving/Combo beam pattern designed to provide both forward reach and broader trail illumination.

Vehicle-specific A-pillar brackets allow the lights to mount to the Raptor without drilling, while the included wiring harness is designed for integration with the truck's factory upfitter switches. The Squadron Pro 2.0 lights feature IP69K protection, Deutsch 4-pin connectors, durable cast-aluminum housings, and hard-coated polycarbonate lenses for demanding off-road environments.

This kit is intended specifically for the listed Raptor configurations and should not be treated as a universal F-150 A-pillar lighting solution. The 2021-2025 Raptor uses the 3.5L EcoBoost V6, while the 2023-2025 Raptor R uses the 5.2L supercharged V8; both applications use 4WD. 2026 fitment is not included because it could not be independently confirmed through the required validation sources.
