Baja Designs 440009 Squadron Sport A-Pillar Lights for 2024-2026 Toyota Tacoma

Vehicle Fitment

• 2024-2026 Toyota Tacoma SR (2.4L I4 Turbo, RWD/4WD)
• 2024-2026 Toyota Tacoma SR5 (2.4L I4 Turbo, RWD/4WD)
• 2024-2026 Toyota Tacoma TRD PreRunner (2.4L I4 Turbo, RWD)
• 2024-2026 Toyota Tacoma TRD Sport (2.4L I4 Turbo, RWD/4WD)
• 2024-2026 Toyota Tacoma TRD Off-Road (2.4L I4 Turbo, RWD/4WD)
• 2024-2026 Toyota Tacoma Limited (2.4L I4 Turbo, RWD/4WD)
• 2024-2026 Toyota Tacoma TRD Pro (2.4L I4 Turbo i-FORCE MAX Hybrid, 4WD)
• 2024-2026 Toyota Tacoma Trailhunter (2.4L I4 Turbo i-FORCE MAX Hybrid, 4WD)

Fitment Notes

• Designed specifically for the fourth-generation 2024-2026 Toyota Tacoma platform.
• Uses vehicle-specific A-pillar mounting brackets for the Tacoma application.
• TRD PreRunner is a rear-wheel-drive configuration; 4WD configurations are available on applicable Tacoma trims.
• No 2023-and-earlier Toyota Tacoma fitment is confirmed for this part number.

Features

• Squadron Sport 2.0 LED auxiliary lighting technology.
• 3,200 lumens of output per light pod.
• 30W power consumption per light pod.
• Driving/Combo beam pattern provides focused forward and broader peripheral illumination.
• RGBW backlighting with nine selectable colors.
• 12-32V operating range for compatibility with the Tacoma electrical system.
• IP69K-rated construction for resistance to dust and high-pressure water exposure.
• 4-pin Deutsch connector for a sealed and durable electrical connection.
• Hard-coated polycarbonate lens for improved impact and scratch resistance.
• Die-cast aluminum housing provides durable structural protection and heat management.
• Vehicle-specific A-pillar brackets provide application-specific mounting.
• Designed for off-road, trail, overland and auxiliary lighting applications.

Specifications

• Brand: Baja Designs
• Part Number: 440009
• Series: Squadron Sport 2.0
• Light Quantity: 2x
• Output: 3,200 lumens per pod
• Power: 30W per pod
• Current Draw: 2.2A per pod at 13.8V
• Operating Voltage: 12-32V
• Beam Pattern: Driving/Combo
• Lens: Clear hard-coated polycarbonate
• Backlight: RGBW, 9 selectable colors
• Connector: 4-pin Deutsch
• Ingress Protection: IP69K
• Housing: Die-cast aluminum
• Mounting Position: A-pillar, left and right sides
• Application: 2024-2026 Toyota Tacoma

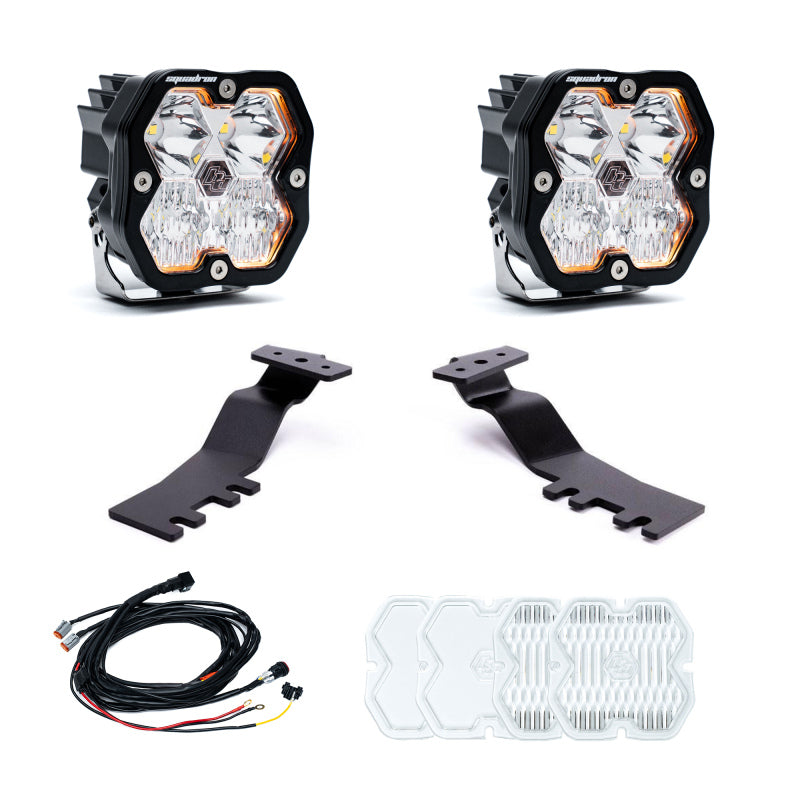

Included Components

• 2x Squadron Sport 2.0 LED light pods
• 2x Tacoma-specific A-pillar mounting brackets
• 1x Wiring harness
• 1x RGBW backlight controller
• 1x Relay
• 1x Fuse
• 1x Stainless hardware pack
• 1x Installation instruction sheet

Product Description

The Baja Designs 440009 Squadron Sport 2.0 A-Pillar Kit is a vehicle-specific auxiliary lighting solution for the 2024-2026 Toyota Tacoma. The kit pairs two Squadron Sport 2.0 LED pods with Tacoma-specific A-pillar brackets, providing additional illumination while maintaining a clean, application-specific mounting arrangement. Each light produces 3,200 lumens at 30 watts and uses a Driving/Combo beam pattern for a combination of forward projection and wider surrounding coverage.

The Squadron Sport 2.0 pods feature RGBW backlighting with nine selectable colors, a hard-coated polycarbonate lens, die-cast aluminum housing, 4-pin Deutsch connections and IP69K-rated protection. The 12-32V operating range is suited to the Tacoma electrical system, while the included wiring components provide the necessary hardware for the two-light setup.

This kit is intended for the fourth-generation 2024-2026 Toyota Tacoma and includes dedicated A-pillar brackets rather than universal mounting hardware. It is suited to Tacoma owners seeking additional lighting for off-road, trail, overland and low-light driving applications while retaining the factory vehicle structure and application-specific mounting points.
