Baja Designs 440008 Squadron Pro 2.0 A-Pillar Lights for 2024-2026 Toyota Tacoma

Vehicle Fitment

• 2024-2026 Toyota Tacoma SR (2.4L I4 Turbo, RWD; 4WD available)
• 2024-2026 Toyota Tacoma SR5 (2.4L I4 Turbo, RWD; 4WD available)
• 2024-2026 Toyota Tacoma TRD PreRunner (2.4L I4 Turbo, RWD)
• 2024-2026 Toyota Tacoma TRD Sport (2.4L I4 Turbo, RWD/4WD; 2.4L I4 i-FORCE MAX Hybrid, 4WD)
• 2024-2026 Toyota Tacoma TRD Off-Road (2.4L I4 Turbo, RWD/4WD; 2.4L I4 i-FORCE MAX Hybrid, 4WD)
• 2024-2026 Toyota Tacoma Limited (2.4L I4 Turbo, RWD/4WD; 2.4L I4 i-FORCE MAX Hybrid, 4WD)
• 2024-2026 Toyota Tacoma TRD Pro (2.4L I4 i-FORCE MAX Hybrid, 4WD)
• 2024-2026 Toyota Tacoma Trailhunter (2.4L I4 i-FORCE MAX Hybrid, 4WD)

Fitment Notes

• Designed for the fourth-generation 2024-2026 Toyota Tacoma A-pillar mounting locations.
• Vehicle-specific A-pillar brackets are included for the Tacoma application.
• TRD PreRunner is a rear-wheel-drive application; other listed trims have drivetrain configurations as specified above.
• No 2023-and-earlier Tacoma fitment is included; this kit is designed around the 2024+ Tacoma platform.

Features

• Squadron Pro 2.0 LED auxiliary lighting system with two light pods.
• 5,921 lumens per light for high-output trail and off-road illumination.
• 65W power consumption per light.
• Driving/Combo beam pattern combines focused forward illumination with broader peripheral coverage.
• RGBW backlighting provides nine selectable color options.
• uService clip-in reflector design allows lens and optic changes without specialized service procedures.
• IP69K-rated construction provides protection against dust, water and high-pressure exposure.
• 4-pin Deutsch connectors provide a sealed, durable electrical connection.
• Vehicle-specific Tacoma A-pillar brackets provide application-specific mounting.
• Included toggle-switch harness provides in-cab control of the auxiliary lights.
• 12-32V operating range supports the Tacoma's electrical system configurations.
• Designed for demanding trail, overland and off-road lighting applications.

Specifications

• Brand: Baja Designs
• Part Number: 440008
• Series: Squadron Pro 2.0
• Light Quantity: 2x
• Output: 5,921 lumens per light
• Power: 65W per light
• Current Draw: 5.2A per light at 13.8V
• Operating Voltage: 12-32V
• Beam Pattern: Driving/Combo
• Lens: Clear
• Backlight: RGBW with 9 selectable colors
• Connector: 4-pin Deutsch
• Ingress Protection: IP69K
• Mounting Position: A-pillar, left and right sides
• Application: 2024-2026 Toyota Tacoma

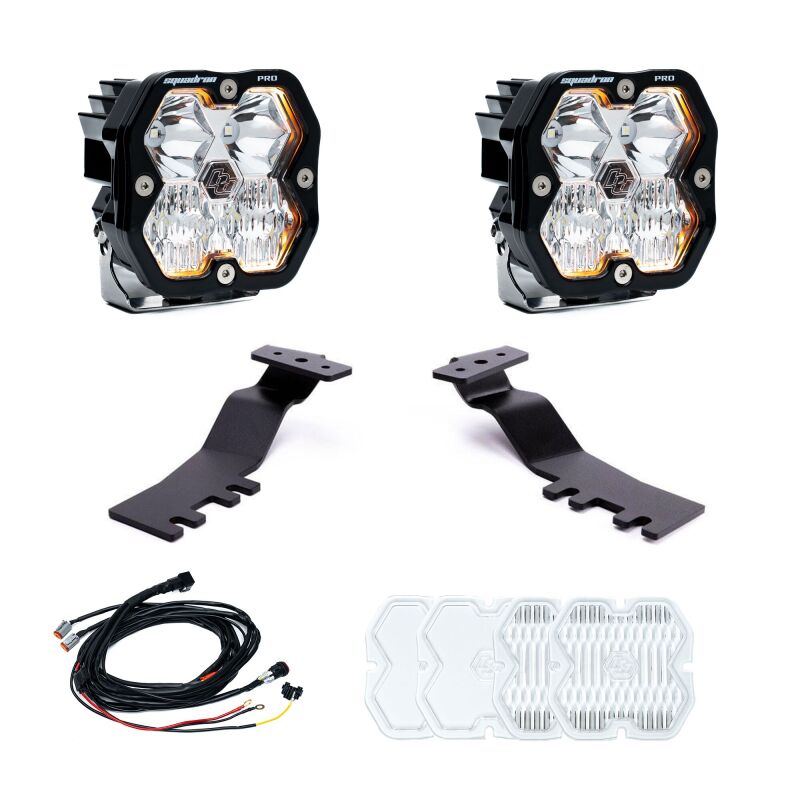

Included Components

• 2x Squadron Pro 2.0 LED light pods
• 2x Toyota Tacoma A-pillar mounting brackets
• 1x Toggle-switch wiring harness
• 2x Clear/Spot lens kits
• 2x Clear/Wide Cornering lens kits
• 1x Mounting hardware set

Product Description

The Baja Designs 440008 Squadron Pro 2.0 A-Pillar Kit is a vehicle-specific auxiliary lighting solution engineered for the 2024-2026 Toyota Tacoma. It combines two high-output Squadron Pro 2.0 LED pods with Tacoma-specific A-pillar brackets to provide additional forward and peripheral illumination for off-road, trail, desert and overland driving. Each pod produces 5,921 lumens at 65W and uses a Driving/Combo beam pattern for a combination of long-range projection and wider trail coverage.

Each Squadron Pro 2.0 pod features RGBW backlighting with nine selectable colors, a durable 4-pin Deutsch connector and IP69K-rated protection. The uService clip-in reflector design allows the included lens options to be changed for different lighting requirements. The 12-32V operating range and included toggle-switch harness provide a straightforward electrical setup for the two-light configuration.

This kit is specifically intended for the fourth-generation 2024-2026 Toyota Tacoma and includes application-specific A-pillar mounting hardware. Verify the vehicle's exact trim and drivetrain configuration before installation, particularly on models equipped with factory or aftermarket accessories around the A-pillar mounting area.
