Baja Designs 448209UP S2 Sport Dual Reverse Light Kit for 23-26 Ford F-250/F-350

Vehicle Fitment

• 2023-2026 Ford F-250 Super Duty (all configurations)
• 2023-2026 Ford F-350 Super Duty (all configurations)

Fitment Notes

• Mounts underneath the rear bumper
• This version (UP suffix) includes upfitter wiring harness
• Upfitter harness triggers lights when transmission is in reverse
• Also available with toggle switch harness or plug-n-play trailer harness (separate part numbers)
• Fits all cab and bed configurations (Regular, SuperCab, Crew Cab / 6.75' and 8' beds)
• Fits gas (7.3L V8) and diesel (6.7L Power Stroke) models
• 100% bolt-on installation -- no drilling or cutting required

Features

• Two S2 Sport LED pods -- 1,581 raw lumens each at only 0.9 amps
• Wide Cornering beam pattern -- 42° flattened horizontal spread
• Clear lens -- 5000K daylight color temperature
• Doubles as a dust/trail light for off-road visibility
• CopperDrive technology -- LEDs driven at 100% without overheating
• ClearView optics -- focused, usable light output with minimal waste
• MoistureBlock -- waterproof, rain-proof, submersible
• Built-in overvoltage protection
• uService design -- replaceable lenses and optics in the field
• Hard anodized and powder-coated cast aluminum housing
• Billet machined aluminum bezel
• Hard-coated polycarbonate front lens
• Stainless steel hardware and brackets

Specifications

• Part Number: 448209UP
• UPC: 810160460800
• Product Line: Baja Designs S2 Sport
• Beam Pattern: Wide Cornering (42° horizontal)
• Lens Color: Clear
• Color Temperature: 5000K daylight
• Raw Lumens: 1,581 per light
• LEDs: 2 Cree XM-L2 per light
• Wattage: 12W per light
• Amperage: 0.9A per light
• Light Dimensions: 2.93" W x 1.76" H x 1.68" D (per pod)
• Weight: 8 oz per light
• LED Life Expectancy: 49,930 hours
• IP Rating: IP69K (submersible to 9 ft, pressure washable)
• Impact Rating: IK10 compliant
• Military Spec: Exceeds MIL-STD-810G
• Salt Spray Certified
• Wiring: Upfitter harness (reverse-triggered)
• Warranty: Limited Lifetime Warranty + 30-day satisfaction guarantee
• Made in USA

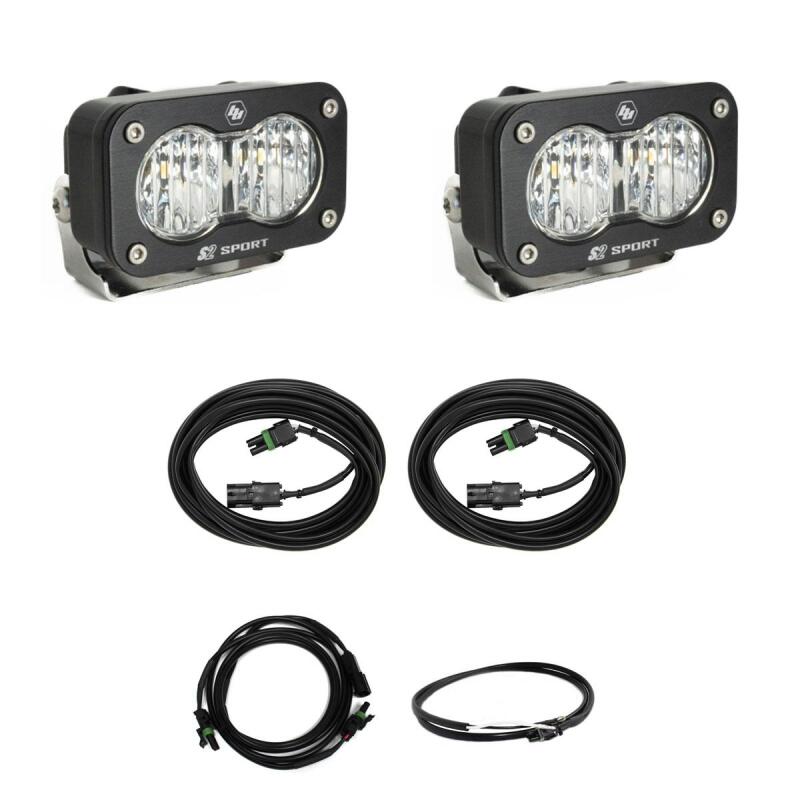

Included Components

• S2 Sport Wide Cornering LED light pods (2)
• Upfitter wiring harness (reverse-triggered)
• Vehicle-specific mounting brackets
• Stainless steel mounting hardware
• Installation instructions

Product Description

The Baja Designs 448209UP is a dual S2 Sport reverse light kit engineered specifically for 2023-2025 Ford F-250 and F-350 Super Duty trucks. Each compact LED pod delivers 1,581 raw lumens through a Wide Cornering beam pattern with a 42-degree flattened horizontal spread, providing exceptional rear illumination when backing up at night or navigating tight off-road trails. The kit mounts cleanly underneath the rear bumper using vehicle-specific brackets and includes a plug-and-play upfitter wiring harness that activates the lights automatically when the transmission shifts into reverse. Beyond reverse lighting, the S2 Sport pods double as effective dust and chase lights for off-road use, cutting through airborne debris so trailing vehicles can maintain visual contact on dusty trails. Each pod measures just 2.93 x 1.76 x 1.68 inches and weighs only 8 ounces, yet packs Baja Designs' CopperDrive technology to run the Cree XM-L2 LEDs at full 100% output without thermal throttling. The cast aluminum housing is hard anodized and powder coated, the bezel is billet machined aluminum, and all hardware is stainless steel. IP69K waterproof certification means the lights are submersible to 9 feet and fully pressure-washable, while IK10 impact compliance and MIL-STD-810G testing ensure durability in harsh conditions. The uService design allows field-replaceable lenses and optics without replacing the entire light. Backed by Baja Designs' Limited Lifetime Warranty and 30-day satisfaction guarantee.
