Baja Designs 448063 OnX6+ 10" Dual Behind Grille Light Kit for 21-26 Ford Raptor

Vehicle Fitment

• 2021-2026 Ford F-150 Raptor
• 2024-2026 Ford F-150 Raptor R
• 2024-2026 Ford F-150 Raptor 37

Fitment Notes

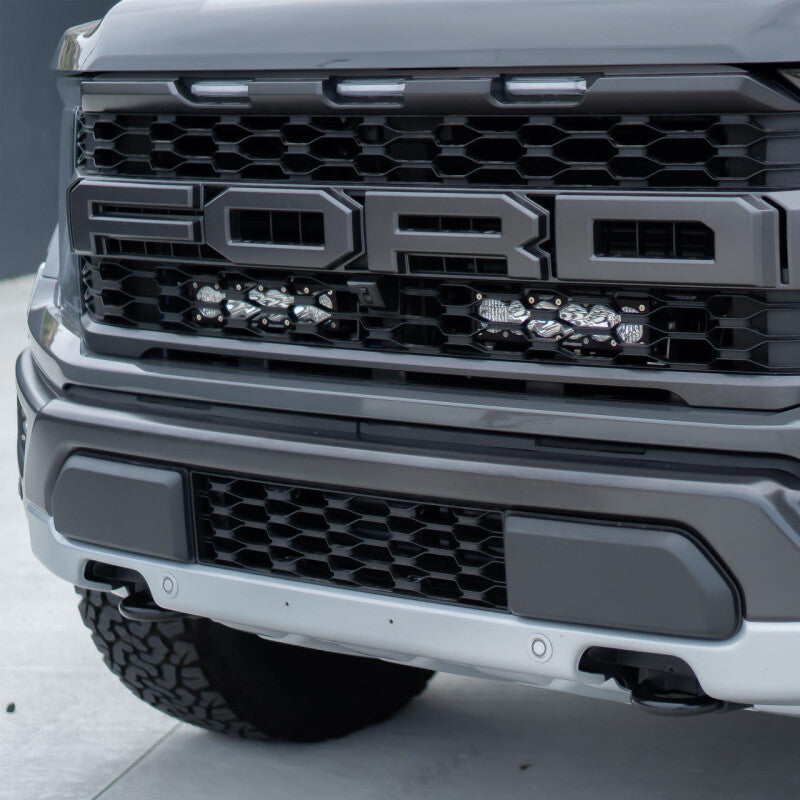

• Mounts behind factory grille for seamless OEM appearance
• Does NOT work with adaptive cruise control relocation kits
• Complete plug-and-play kit with all mounting hardware included
• No cutting or drilling required for installation
• Wiring harness activates lights with factory high beam switch

Features

• Dual OnX6+ 10-inch LED light bars produce 10,817 raw lumens each on high power
• Driving/Combo beam pattern optimized for forward trail illumination
• ClearView optics deliver precise light placement without scatter or hot spots
• CopperDrive technology runs LEDs at 100% efficiency for maximum output
• 5000K daylight color temperature reduces eye strain and fatigue
• MoistureBlock waterproof design rated IP69K for submersion up to 9 feet
• Pressure washable without damage to seals or electronics
• Aircraft-grade aluminum housing with Mil-Spec hard anodize finish
• Hardcoated polycarbonate lens resists impacts, scratches, and UV damage
• uService design allows field-replaceable lenses and optics
• High/Low beam functionality via included wiring harness
• Built-in overvoltage protection prevents damage from electrical spikes
• Exceeds MIL-STD810G military specification durability testing
• IK10 mechanical impact resistance rating

Specifications

• Part Number: 448063
• Brand: Baja Designs
• Series: OnX6+
• Light Bar Length: 10 inches (each)
• Quantity: 2 Light Bars
• Lens Color: Clear
• Beam Pattern: Driving/Combo
• Lumens (per bar): 10,817 (High) / 9,230 (Low)
• Wattage (per bar): 106.26W
• Amperage (per bar): 7.7A
• LED Count: 6 per bar
• Light Bar Dimensions: 10" L x 2.69" H x 4.29" D
• Light Bar Weight: 4.25 lbs each
• Housing Material: Aircraft Grade Aluminum with Mil-Spec Hard Anodize
• Housing Color: Black
• Lens Material: Hardcoated Polycarbonate
• Bezel Material: Billet Machined Aluminum
• Mounting Hardware: Stainless Steel
• Water Resistance: IP69K (Waterproof to 9 ft, Pressure Washable)
• Impact Resistance: IK10 Compliant
• Durability Rating: Exceeds MIL-STD810G
• Average Rated Life: 49,930 hours
• Voltage: 12-36V DC
• Warranty: Limited Lifetime
• Country of Origin: USA

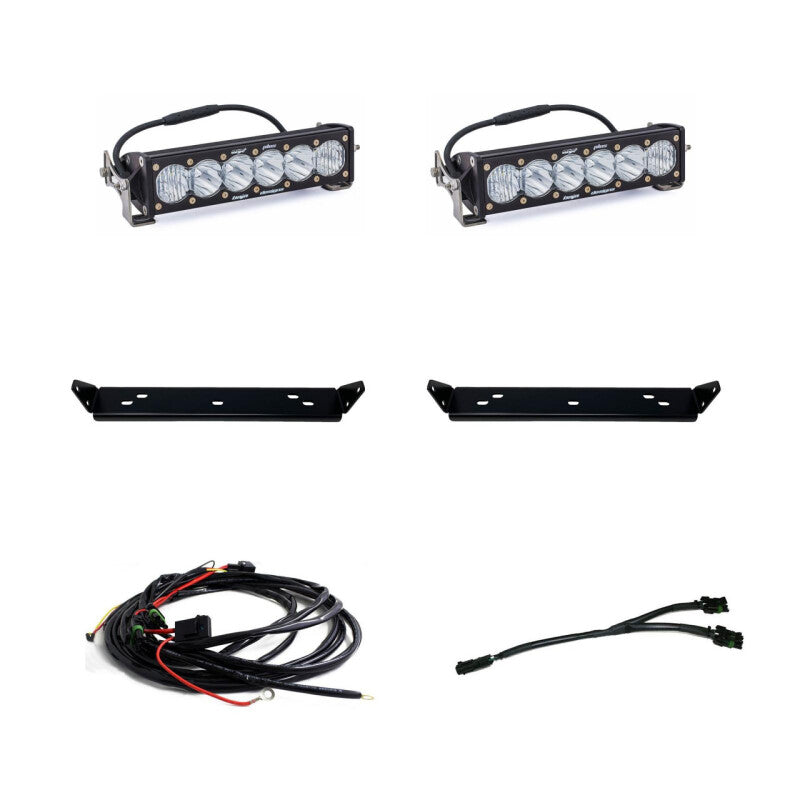

Included Components

• 2x OnX6+ 10-Inch LED Light Bars (Driving/Combo, Clear Lens)
• 2x Behind-the-Grille Mounting Brackets
• 1x Splitter Wiring Harness
• 1x Hi-Beam Wiring Harness
• All Necessary Mounting Hardware

Product Description

The Baja Designs 448063 OnX6+ 10-Inch Dual Behind Grille Light Bar Kit delivers professional-grade off-road lighting for 2021-2026 Ford F-150 Raptor models. This complete kit includes two powerful OnX6+ 10-inch LED light bars that mount discreetly behind the factory grille, producing a combined 21,634 lumens on high power to illuminate trails and terrain with daylight-quality 5000K output. The Driving/Combo beam pattern provides optimal forward coverage with ClearView optics that eliminate scatter and place light precisely where needed. Aircraft-grade aluminum housings with Mil-Spec hard anodizing resist corrosion while IP69K waterproofing al
