Baja Designs 448064 OnX6+ Dual 10in Grille Kit for 2021-2026 F-150 Raptor/Raptor

Vehicle Fitment

• 2021-2026 Ford F-150 Raptor, 3.5L EcoBoost V6, 4WD
• 2024-2026 Ford F-150 Raptor 37, 3.5L EcoBoost V6, 4WD
• 2024-2026 Ford F-150 Raptor R, 5.2L Supercharged V8, 4WD

Fitment Notes

• Vehicle-specific behind-the-grille lighting kit for the third-generation Ford F-150 Raptor platform.
• Raptor 37 and Raptor R applications begin with the 2024 model year for this part number.
• Raptor R is powered by the 5.2L supercharged V8; standard Raptor and Raptor 37 use the 3.5L EcoBoost V6.
• Not compatible with adaptive cruise control relocation kits.
• Designed for the factory grille configuration of the listed Raptor applications.
• Non-Raptor F-150 models are excluded from the validated fitment.

Features

• Dual OnX6+ 10-inch LED light bar configuration.
• Driving/Combo beam pattern for combined distance and peripheral illumination.
• 10,817 raw lumens per light bar on high power.
• 9,230 raw lumens per light bar on low power.
• 106.26W power consumption per light bar.
• High/low lighting modes for adaptable output.

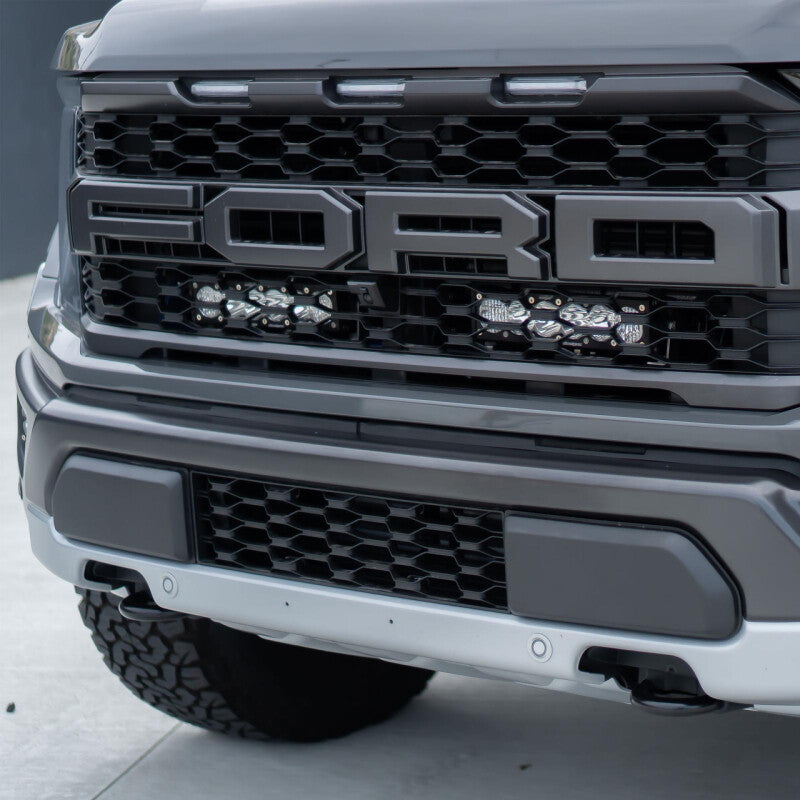

• Behind-the-grille mounting provides an integrated, low-profile installation.
• Vehicle-specific mounting brackets designed for the Raptor grille.
• uService construction allows lens and optic replacement.
• ClearView optics provide controlled light distribution.
• MoistureBlock technology provides waterproof, rainproof, and submersible protection.
• CopperDrive technology drives the LEDs at 100% output.
• 5000K daylight color temperature provides natural-looking illumination.
• IK10 mechanical impact resistance.
• IP69K water resistance and pressure-wash protection.
• Exceeds MIL-STD-810G durability testing requirements.

Specifications

• Brand: Baja Designs
• Part Number: 448064
• Product: OnX6+ 10-Inch Dual Behind-the-Grille Light Bar Kit
• Mounting Position: Behind front grille
• Light Quantity: 2x OnX6+ 10-inch LED light bars
• Beam Pattern: Driving/Combo
• Lens Color: Baja Amber
• Output: 10,817 raw lumens high / 9,230 raw lumens low per light
• Power: 106.26W per light
• Current Draw: 7.7A per light
• Lighting Modes: High Beam/Low Beam
• Color Temperature: 5000K
• Light Bar Length: 10 inches
• Housing Material: Aircraft-grade aluminum with Mil-Spec hard anodize
• Bezel Material: Billet-machined aluminum
• Lens Material: Hard-coated polycarbonate
• Connector/Wiring: Hi-low and splitter harness configuration
• Water Resistance: IP69K
• Impact Resistance: IK10
• Average Rated Life: 49,930 hours
• Drivetrain: 4WD

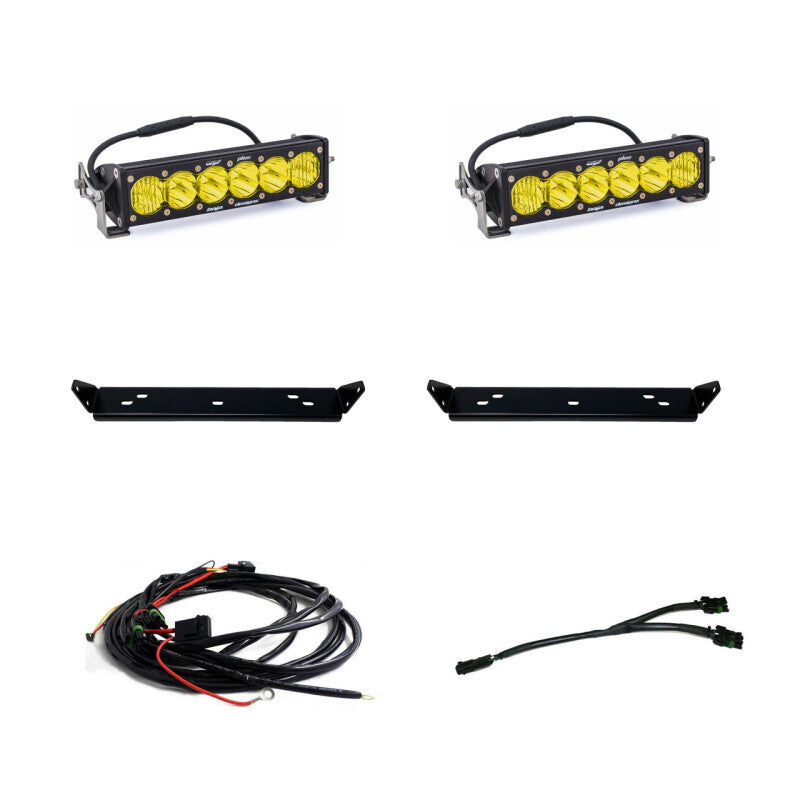

Included Components

• 2x OnX6+ 10-inch LED light bars
• 2x Behind-the-grille mounting brackets
• 1x Splitter wiring harness
• 1x Hi-beam wiring harness
• 1x Necessary mounting hardware set

Product Description

The Baja Designs 448064 OnX6+ Dual 10-Inch Behind-the-Grille Light Bar Kit is engineered for the 2021-2026 Ford F-150 Raptor, 2024-2026 Raptor 37, and 2024-2026 Raptor R. The kit combines two OnX6+ 10-inch LED light bars with vehicle-specific behind-the-grille brackets, producing up to 10,817 raw lumens per light on high power. The Driving/Combo beam pattern combines forward reach with broader peripheral coverage for demanding off-road conditions.

Each OnX6+ bar uses high/low lighting modes and features aircraft-grade aluminum construction, a Mil-Spec hard-anodized finish, billet-machined aluminum bezel, and hard-coated polycarbonate lens. Baja Designs' uService, ClearView, MoistureBlock, and CopperDrive technologies provide serviceable optics, controlled illumination, environmental protection, and full LED output. The Baja Amber lens configuration is suited to applications where enhanced visual contrast is desired.

The kit is specifically engineered around the third-generation F-150 Raptor grille and includes the required brackets, splitter harness, hi-beam harness, and mounting hardware. Standard Raptor and Raptor 37 applications use the 3.5L EcoBoost V6, while Raptor R uses the 5.2L supercharged V8. This kit is not compatible with adaptive cruise control relocation kits and is not validated for non-Raptor F-150 models.
