Baja Designs 447751UP XL80 A-Pillar Light Kit for 21-27 Ford Bronco w/Upfitter

Vehicle Fitment

• 2021-2027 Ford Bronco (2-Door and 4-Door, All Trims) -- with Upfitter Switch

Fitment Notes

• Requires factory Upfitter Switch equipped Bronco -- harness plugs directly into Upfitter Switch
• Toggle switch version (no Upfitter Switch required): Baja Designs 447751
• No drilling or cutting required -- bolts to factory A-pillar mounting points
• Fits both 2-door and 4-door body styles
• Estimated installation time: 1.5 hours

Features

• XL80 Series -- 9,500 lumens per pair (4,750 lumens per light)
• 4 CREE LEDs per light
• Driving/Combo beam pattern -- Zone 3 distance + near-field coverage
• Changeable lens optics -- spot and wide cornering lenses included
• 80 watts / 5.5 amps per light
• 5,000K daylight color temperature
• LED life: 49,930 hours
• IP69K waterproof rating -- submersible
• Cast aluminum housing -- hard anodized and powder coated
• Hard coated polycarbonate lens
• MIL-STD-810G certified
• IK10 impact rated
• Built-in overvoltage protection
• Operating voltage: 9V-28V DC
• uService replaceable lenses and optics
• Made in USA (San Marcos, CA)
• Limited Lifetime Warranty

Specifications

• Part Number: 447751UP
• Light Series: XL80
• Beam Pattern: Driving/Combo (default)
• Lens: Clear, Hard Coated Polycarbonate
• Lumens (per light): 4,750
• Lumens (pair): 9,500
• LEDs per Light: 4 CREE
• Watts: 80 per light
• Amp Draw: 5.5A per light
• Color Temperature: 5,000K
• Operating Voltage: 9V-28V DC
• LED Life: 49,930 hours
• Light Dimensions: 4.43" x 3.65" x 4.43"
• Housing: Cast aluminum, hard anodized and powder coated
• Waterproof Rating: IP69K
• Impact Rating: IK10
• Certifications: MIL-STD-810G
• UPC: 810031743971

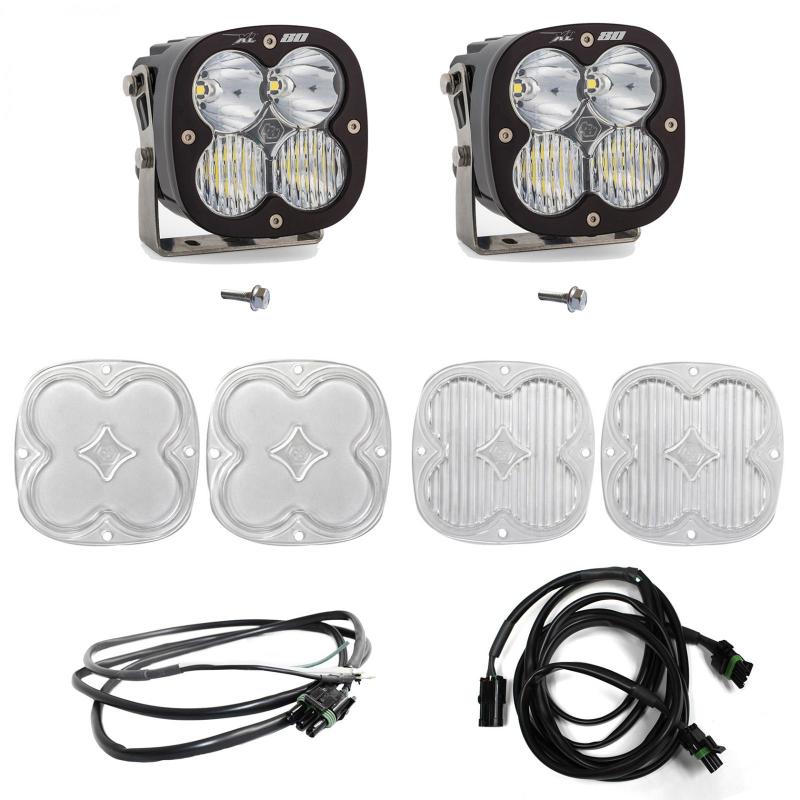

Included Components

• 2x XL80 LED Light Pods (Driving/Combo, Clear)
• 2x XL Wide Cornering Clear Lenses
• 2x XL Spot Clear Lenses
• 1x Upfitter Wiring Harness
• A-pillar mounting brackets and all hardware

Product Description

The Baja Designs 447751UP is an XL80 A-Pillar Light Kit engineered as a direct-fit, no-drill lighting upgrade for the 2021-2026 Ford Bronco equipped with the factory Upfitter Switch. The kit mounts a pair of XL80 LED light pods to the A-pillars using factory bolt locations -- no cutting, drilling, or fabrication required. The upfitter wiring harness integrates directly with the Bronco's built-in Upfitter Switch, giving the driver clean, cab-controlled illumination without added switches or relay boxes. Each XL80 light uses four CREE LEDs to produce 4,750 lumens at 80 watts, with both driving and spot optics in the same housing for simultaneous Zone 3 distance lighting and near-field fill.

The kit ships with the lights in the default Driving/Combo configuration, plus two sets of alternate lenses -- wide cornering for broad near-field illumination and spot for maximum throw -- allowing the driver to swap beam patterns without replacing the light. Lenses and optics are field-replaceable through Baja Designs' uService program. The XL80 housing is cast aluminum with a hard anodized and powder coated finish, rated IP69K for full submersion and IK10 for mechanical impact resistance, and meets MIL-STD-810G military specification testing. For Broncos without the factory Upfitter Switch, the toggle switch harness version is Baja Designs 447751. Built in San Marcos, California and backed by Baja Designs' Limited Lifetime Warranty.
