Baja Designs 447774 XL Sport A-Pillar Kit for 2019-2024 Ram 1500 Rebel/TRX

Vehicle Fitment

• 2019-2024 Ram 1500 Rebel, 5.7L HEMI V8, 4WD
• 2020-2022 Ram 1500 Rebel, 3.0L EcoDiesel V6, 4WD
• 2021-2024 Ram 1500 TRX, 6.2L Supercharged HEMI V8, 4WD
• 2021 Ram 1500 TRX Launch Edition, 6.2L Supercharged HEMI V8, 4WD

Fitment Notes

• Vehicle-specific A-pillar kit for Ram 1500 Rebel and TRX applications.
• Rebel coverage is 2019-2024; TRX coverage is 2021-2024.
• TRX Launch Edition is included for 2021.
• 2023-2024 Rebel 3.0L EcoDiesel coverage is not listed because the EcoDiesel was discontinued after the 2022 model year.
• Not confirmed for Ram 1500 Classic or other non-Rebel/non-TRX configurations.
• 2025-2026 fitment is not confirmed for this part number.

Features

• XL Sport LED A-pillar lighting kit.
• 3,150 lumens per light from four LEDs.
• 26W power consumption per light.
• 2A current draw per light.
• Driving/Combo beam pattern combines broad near-field coverage with focused distance illumination.
• Driving optics provide approximately 42-degree coverage.
• Spot optics provide approximately 8-degree focused illumination within the Driving/Combo configuration.
• Vehicle-specific A-pillar brackets designed for the Ram 1500 application.
• MoistureBlock technology provides waterproof and submersible protection.
• ClearView optics optimize usable light distribution.
• CopperDrive technology drives the LEDs at full output.
• uService design allows replaceable lenses and optics.
• 5000K daylight color temperature.
• IP69K water and pressure-wash resistance.
• IK10 mechanical impact resistance.
• Built-in overvoltage protection.

Specifications

• Brand: Baja Designs
• Part Number: 447774
• Product: XL Sport A-Pillar Light Kit
• Position: Left and right A-pillars
• Quantity: 2 LED lights
• Beam Pattern: Driving/Combo
• Light Output: 3,150 lumens per light
• LED Count: 4 LEDs per light
• Power: 26W per light
• Current Draw: 2A per light
• Color Temperature: 5000K
• Dimensions Per Light: 4.43 x 3.65 x 4.43 inches
• Weight Per Light: 2.45 lb
• Lens: Hard-coated polycarbonate, clear
• Housing: Powder-coated cast aluminum
• Bezel: Billet-machined aluminum
• Bracket/Hardware Material: Stainless steel
• Water Resistance: IP69K
• Impact Resistance: IK10
• LED Life Expectancy: 49,930 hours
• Drivetrain: 4WD

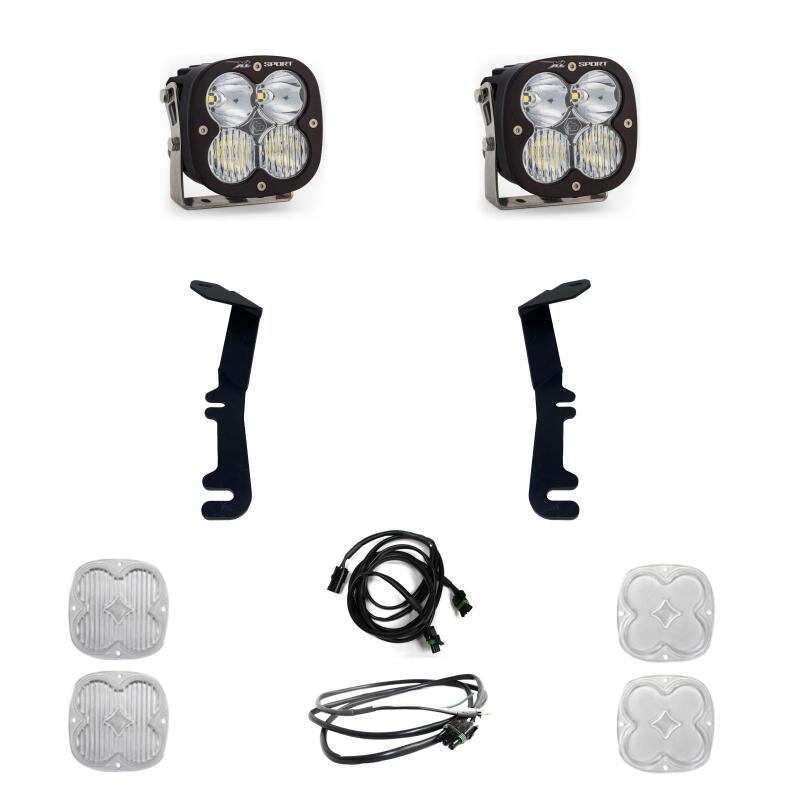

Included Components

• 2x XL Sport LED lights with Driving/Combo optics
• 2x Ram 1500 A-pillar brackets
• 1x Trigger-switch harness lead
• 2x Spot lenses
• 2x Wide Cornering lenses
• 1x Mounting hardware set

Product Description

The Baja Designs 447774 XL Sport A-Pillar Light Kit is a vehicle-specific auxiliary lighting package designed for the 2019-2024 Ram 1500 Rebel and 2021-2024 Ram 1500 TRX. The kit includes two XL Sport LED lights producing 3,150 lumens per light at 26W, using a Driving/Combo beam pattern that combines broad near-field illumination with focused distance coverage for off-road use.

Each light uses a durable powder-coated cast-aluminum housing, hard-coated polycarbonate lens, billet-machined aluminum bezel, and stainless-steel mounting hardware. Baja Designs' MoistureBlock, ClearView, CopperDrive, and uService technologies provide environmental protection, controlled light distribution, full LED output, and replaceable optics. The lights are also IP69K and IK10 rated and feature built-in overvoltage protection.

The vehicle-specific A-pillar brackets are designed for the Ram 1500 Rebel and TRX platforms. The kit includes Spot and Wide Cornering replacement lenses, allowing the lighting configuration to be adapted to different driving conditions. Fitment requires the applicable Ram 1500 A-pillar configuration and 4WD platform listed above; 2025-2026 applications are not confirmed for this part number.
