Baja Designs 448084 S1 Dual Fog Pocket Kit for 2019-2022 GMC Sierra 1500

Vehicle Fitment

• 2019-2022 GMC Sierra 1500 (All Trims, 2.7L I4 / 5.3L V8 / 6.2L V8 / 3.0L Diesel)

Features

• Includes two S1 Clear Spot and two S1 Amber Wide Cornering LED lights
• Vehicle-specific brackets designed for OE fog pocket integration
• Plug-and-play harness with splitters and anti-backfeed adapters
• Lower pair wired to fog switch; upper pair activate with high beams
• Per-light output approx. 2,375 lumens; total ~9,500 lm
• Built with CopperDrive, MoistureBlock, ClearView, and uService technologies
• IP69K waterproof and IK10 impact-rated; MIL-STD-810G tested
• 5000 K daylight color temperature for reduced blueshift and fatigue

Specifications

• Per Light: 2,375 lm, 20 W / 1.45 A; LED Life: 49,930 hrs :contentReference[oaicite:2]{index=2}
• Dimensions: 2.1" x 2.1" x 2.1"; Weight: 0.4 lb each :contentReference[oaicite:3]{index=3}
• Lens/Bezel: Hard-coated polycarbonate / billet-machined aluminum
• Housing: Hard-anodized, powder-coated cast aluminum
• Mounting hardware: Stainless steel
• Waterproof Rating: IP69K (submersible to 9 ft); Impact Rating: IK10
• Voltage Range: 9-28 V DC; Overvoltage protection built in

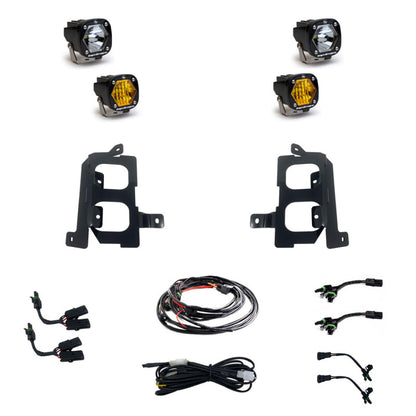

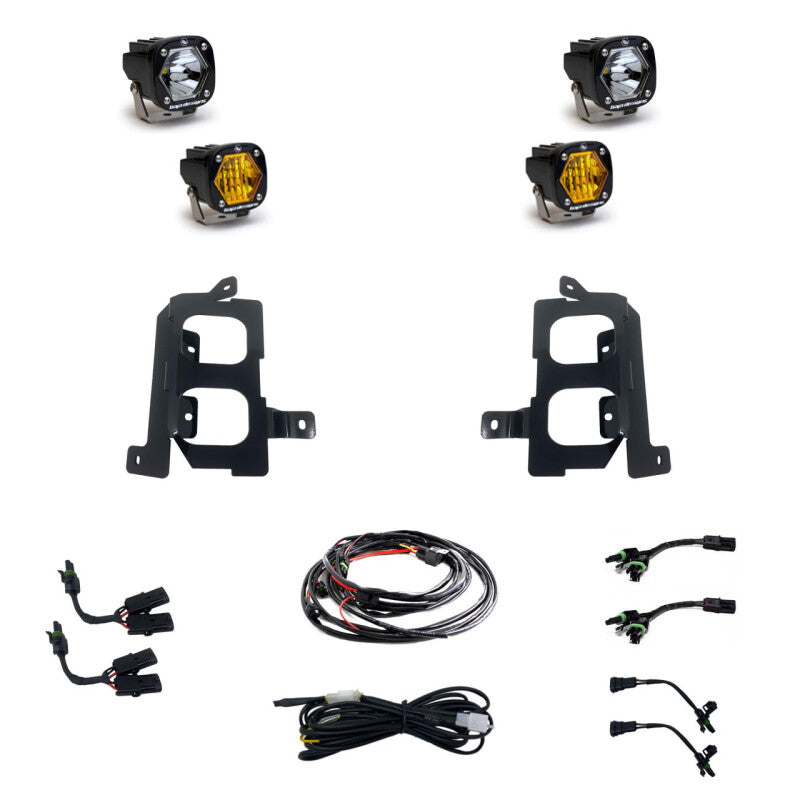

Included Components

• 2x S1 Clear Spot LEDs
• 2x S1 Amber Wide Cornering LEDs
• 2x Fog pocket mounting brackets
• 2x Splitter harnesses + 2x anti-backfeed adapters
• 1x Wiring harness (640117) + trigger switch harness (640180)
• All required stainless steel hardware

Product Description

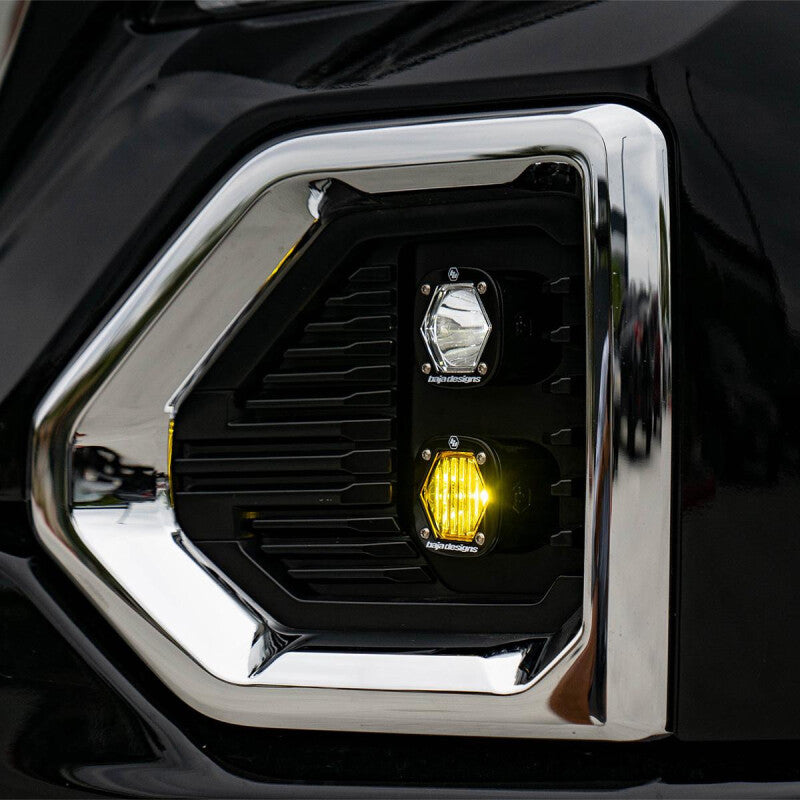

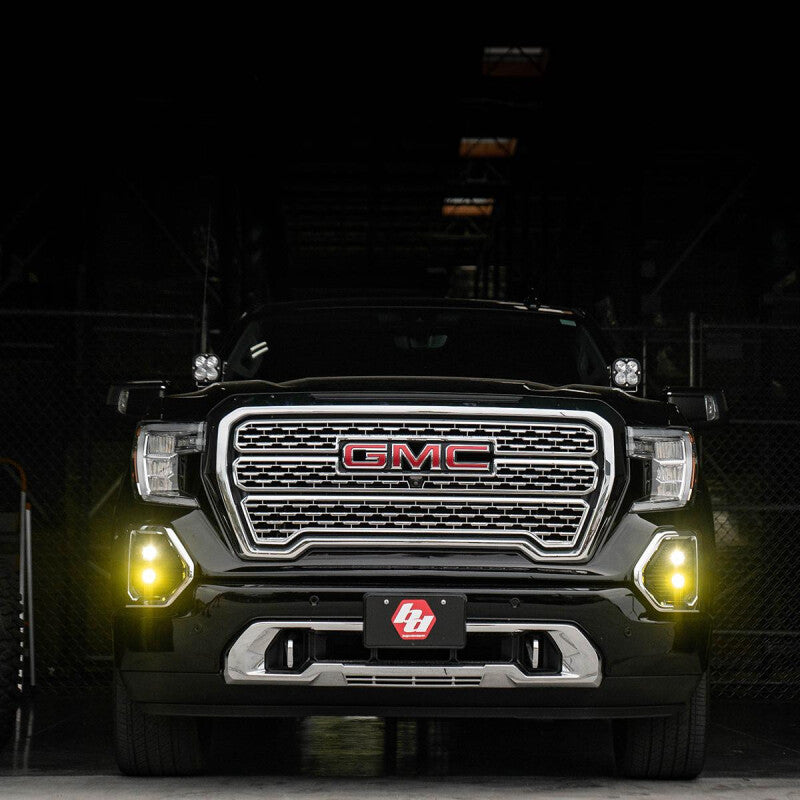

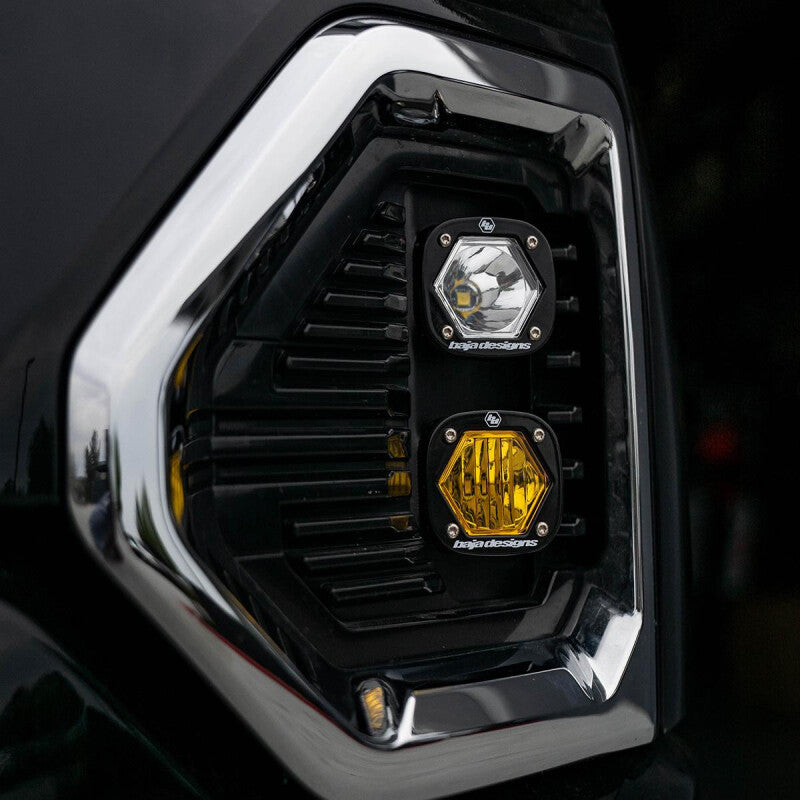

The Baja Designs 448084 S1 Dual Fog Pocket Kit replaces factory fog lights on 2019-2022 GMC Sierra 1500 models with a powerful and integrated LED upgrade. Each fog pocket houses a clear spot and amber wide cornering light, providing approximately 2,375 lumens per light - and a combined output of nearly 9,500 lumens - to transform visibility in fog, dust, and low-light conditions.

Designed with seamless OEM integration, the kit includes vehicle-specific mounting brackets and a smart plug-and-play wiring harness. Lower lights are fog-switch activated, while the upper pair engage with high beams. Backed by advanced technologies - CopperDrive for full-power delivery, MoistureBlock for waterproofing, ClearView optics, and uService for easy lens maintenance - this kit is built tough to IP69K and IK10 standards and tested to MIL-STD-810G.

Constructed with durable aluminum and polycarbonate materials, and supported by Baja Designs' limited lifetime warranty, the 448084 kit offers a clean, professional look with superior lighting performance and reliability for GMC owners who demand the best on and off the road.
