Baja Designs 447873 Squadron SAE Amber LED Fog Pocket Kit for 19-25 Sprinter Van

Vehicle Fitment

2019-2025 Mercedes-Benz Sprinter 1500
2019-2025 Mercedes-Benz Sprinter 2500
2019-2025 Mercedes-Benz Sprinter 3500
2019-2024 Mercedes-Benz Sprinter 3500XD

Fitment Notes

• Direct replacement for factory fog light pockets
• Plug-and-play installation with included adapter harnesses
• Retains factory fit and finish appearance
• SAE J583 compliant for legal on-road use
• Amber lens option reduces glare in dust and fog conditions
• uService is NOT a feature of SAE products - tampering voids warranty
• Professional installation recommended

Features

• SAE J583 certified for street legal on-road use
• Aspheric projector optics with advanced LED technology
• 56% increase in luminous flux over previous generation SAE model
• Wide cornering beam pattern illuminates Zone 1
• Sharp cutoff pattern ideal for fog, dust, and inclement weather
• Amber lens minimizes reflections in adverse conditions
• 5000K daylight color temperature reduces driver fatigue
• ClearView technology places light exactly where needed
• MoistureBlock construction - waterproof, rain proof, submersible
• CopperDrive thermal management runs LEDs at 100%
• Exceeds MIL-STD810G military specification testing
• Built-in overvoltage protection
• IP69K waterproof rating - submersible to 9 feet and pressure washable
• IK10 impact resistance rating
• LED life expectancy of approximately 49,930 hours
• 30-day money back satisfaction guarantee
• Limited lifetime warranty with complete purchase protection
• Designed and manufactured in USA

Specifications

• Brand: Baja Designs
• Part Number: 447873
• Product Type: LED Fog Pocket Light Kit
• Light Series: Squadron SAE
• Lens Color: Amber
• Beam Pattern: Wide Cornering
• Lumens Per Light: 2,420 Raw Lumens
• Candela: Up to 15,800
• Wattage Per Light: 29W
• Amperage Per Light: Approximately 2.1A
• LED Count: 4 Cree LEDs Per Light
• Color Temperature: 5000K Daylight
• Lighting Zone: Zone 1 (Fog/Dust)
• Front Lens: Hard Coated Polycarbonate
• Housing: Hard Anodized & Powder Coated Cast Aluminum
• Bezel: Billet Machined Aluminum
• Hardware: Stainless Steel
• Waterproof Rating: IP69K
• Impact Rating: IK10
• Certification: SAE J583 Compliant
• LED Life Expectancy: 49,930 Hours
• Quantity: Kit (Pair of Lights)
• Warranty: Limited Lifetime
• UPC: 810031740109

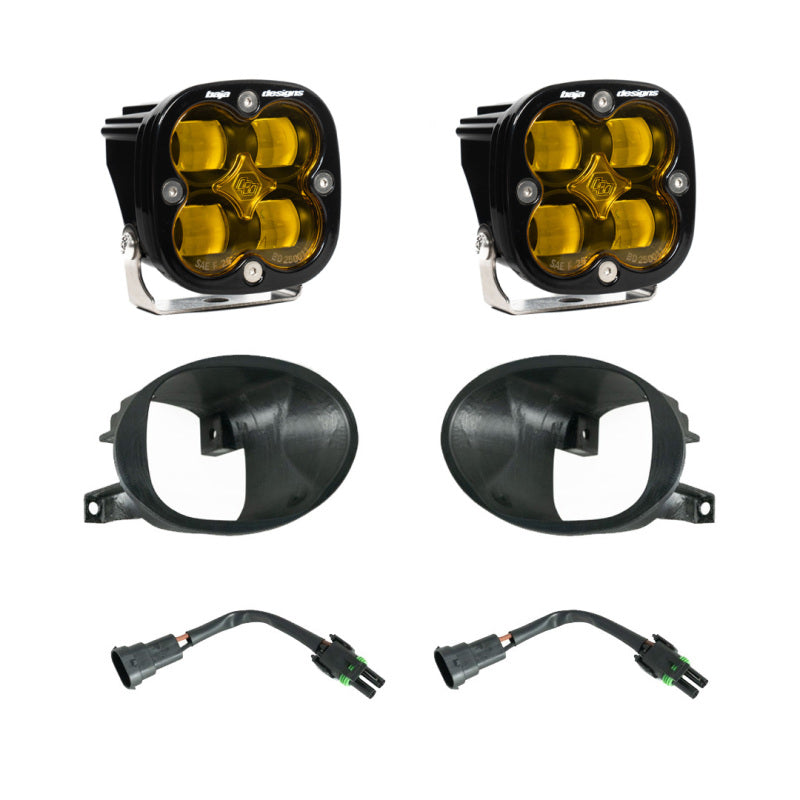

Included Components

• 2 Squadron SAE LED fog lights with amber lens
• 2 vehicle-specific fog pocket mounting brackets
• 2 plug-and-play adapter wiring harnesses
• All necessary mounting hardware
• Installation instructions

Product Description

The Baja Designs 447873 Squadron SAE Amber LED Fog Pocket Light Kit transforms the lighting capability of 2019-2025 Mercedes-Benz Sprinter vans with SAE-certified, street-legal fog lights that deliver exceptional performance for both daily driving and adventure use. Engineered with next-generation aspheric projector optics and advanced LED technology, each Squadron SAE light produces 2,420 raw lumens with output reaching up to 15,800 candela at just 29 watts, representing a 56% increase in luminous flux over previous generation models. The wide cornering beam pattern illuminates Zone 1 with a highly controlled light pattern and sharp cutoff that meets SAE J583 fog lamp requirements, making these lights fully compliant for on-road use while providing superior visibility through dust, fog, rain, and other adverse weather conditions. The amber lens option specifically reduces glare and minimizes reflections when driving in challenging visibility situations.

Construction features hard anodized and powder coated cast aluminum housing with billet machined aluminum bezels and hard coated polycarbonate lenses that exceed MIL-STD810G military specification testing for durability and reliability. The IP69K waterproof rating ensures these lights are fully submersible to 9 feet and withstand pressure washing, while IK10 impact resistance protects against physical damage. Baja Designs' proprietary CopperDrive thermal management system allows LEDs to run at 100% output without thermal throttling, while built-in overvoltage protection safeguards the electronics. The complete kit includes vehicle-specific mounting brackets and plug-and-play adapter harnesses for straightforward installation that retains the factory fog pocket appearance. Backed by Baja Designs' 30-day money back satisfaction guarantee and limited lifetime warranty, these lights deliver the performance and reliability demanded by van enthusiasts who explore beyond paved roads.
