Baja Designs 447806 XL Sport A-Pillar Light Kit 17-24 Can-Am Maverick X3 Driving

Vehicle Fitment

• 2017-2024 Can-Am Maverick X3 (Turbo, All Trims)
• 2017-2024 Can-Am Maverick X3 Turbo R (All Trims)
• 2018-2024 Can-Am Maverick X3 900 HO
• 2020-2024 Can-Am Maverick X3 DS Turbo R
• 2021-2024 Can-Am Maverick X3 DS Turbo
• 2022-2024 Can-Am Maverick X3 DS Turbo RR
• 2017-2024 Can-Am Maverick X3 Max (All Turbo Variants including Max Turbo, Max Turbo R, Max DS Turbo, Max DS Turbo R, Max DS Turbo RR, Max RS Turbo R, Max RS Turbo RR, Max X ds Turbo RR, Max X mr Turbo RR, Max X rs Turbo R, Max X rs Turbo RR)
• 2017-2024 Can-Am Maverick X3 X ds Turbo R / X ds Turbo RR
• 2017-2024 Can-Am Maverick X3 X rs Turbo R / X rs Turbo RR / X rs Turbo RR Smart-Shox
• 2017-2024 Can-Am Maverick X3 X mr Turbo RR
• 2021-2024 Can-Am Maverick X3 RS Turbo R / RS Turbo RR

Fitment Notes

• Vehicle-specific A-pillar brackets designed for all 2017-2024 Maverick X3 platforms - no drilling or modification required
• May NOT be compatible with aftermarket or OEM windshield installations - verify clearance before purchase
• Kit includes (4) light pattern-changing lenses - Driving/Combo is the default installed pattern; Wide Cornering and other patterns included for customization
• 30-Day Satisfaction Guarantee and Limited Lifetime Warranty

Features

• 2x XL Sport LED light pods deliver 3,162 lumens each for 6,324 total lumens of forward illumination
• Driving/Combo beam pattern - combines Wide Driving (42°) and Spot (9°) optics for maximum near and mid-field trail coverage
• CopperDrive® - LEDs driven at 100% output for consistent, full-rated performance
• ClearView® - precision optics deliver usable light directly where needed with minimal spill
• MoistureBlock® - IP69K waterproof, rainproof, and submersible construction
• uService® - user-replaceable lenses and optics; 4 light pattern lenses included for pattern customization
• 5000K Daylight color temperature - reduces driver fatigue and improves terrain recognition
• Billet machined aluminum bezel with powder-coated cast aluminum housing for maximum durability

Specifications

• Part Number: 447806
• Lumens: 3,162 per light (6,324 total - pair)
• Wattage/Amps: 30.36W / 2.17A per light
• Beam Pattern: Driving/Combo (42° Wide Driving + 9° Spot)
• LED Count: 4 LEDs per light
• Dimensions (per light): 4.43" x 3.65" x 4.43"
• Weight (per light): 2.45 lbs
• LED Life Expectancy: ~49,930 hours
• Lens: Hardcoated Polycarbonate (Clear, uService replaceable)
• Housing: Powder-Coated Cast Aluminum
• Bezel: Billet Machined Aluminum
• Bracket/Hardware Material: Stainless Steel
• Waterproof Rating: IP69K (MoistureBlock®)
• Color Temperature: 5000K Daylight

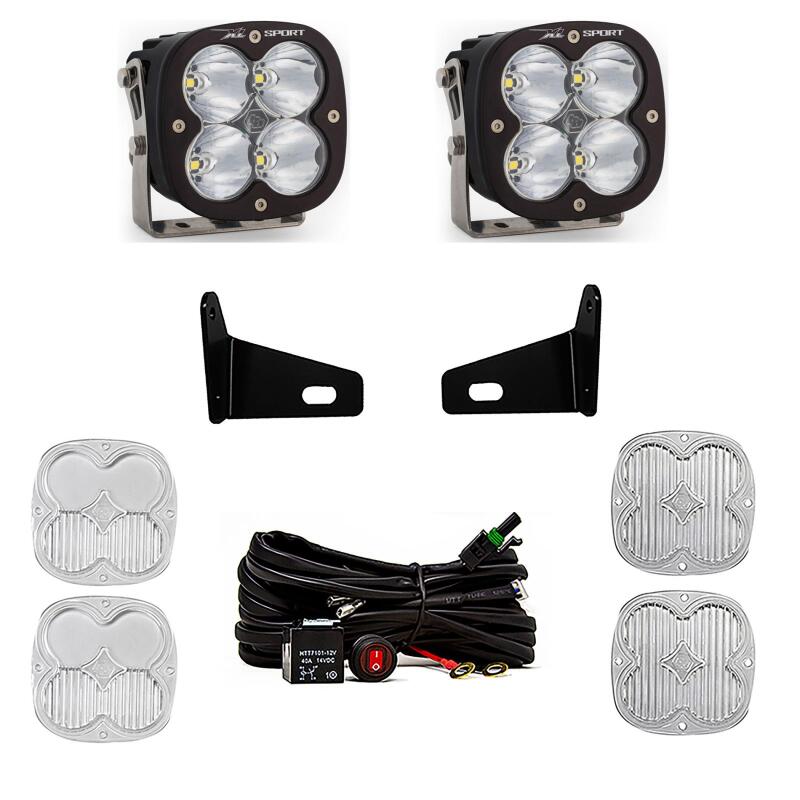

Included Components

• 2x Baja Designs XL Sport LED Light Pods (Driving/Combo, Clear Lens)
• 2x Can-Am Maverick X3 Vehicle-Specific A-Pillar Mounting Brackets
• 4x Light Pattern-Changing Lenses
• 1x Wiring Harness with Switch and Relay
• 1x Complete Stainless Steel Hardware Kit
• 1x Installation Instructions

Product Description

The Baja Designs XL Sport A-Pillar Light Kit for the 2017-2024 Can-Am Maverick X3 is a complete, vehicle-specific lighting upgrade that mounts two XL Sport LED pods directly to the X3's A-pillars using precision-fit brackets with no drilling or modification required. Each XL Sport pod delivers 3,162 lumens through a Driving/Combo beam - combining a 42° Wide Driving arc with a focused 9° Spot beam - for maximum trail coverage in a single compact light. The kit's four included pattern-changing lenses allow owners to customize beam pattern to match their riding conditions.

Built on the same XL platform that powers Baja Designs' race-winning lighting systems, the XL Sport features CopperDrive® full-power LED technology, MoistureBlock® IP69K waterproofing, and uService® field-replaceable optics - all backed by Baja Designs' 30-Day Satisfaction Guarantee and Limited Lifetime Warranty. The included wiring harness with switch and relay ensures a clean, complete installation right out of the box. Note: may not be compatible with windshield-equipped X3 configurations.
