Baja Designs 447718 Squadron SAE Amber Fog Pocket Kit for 15-22 F150/F250/F350

Vehicle Fitment

• 2015-2020 Ford F-150 (All Trims) -- Fog Pocket
• 2017-2022 Ford F-250 Super Duty (All Trims) -- Fog Pocket
• 2017-2022 Ford F-350 Super Duty (All Trims) -- Fog Pocket

Fitment Notes

• Direct-fit -- vehicle-specific brackets included
• Complete kit -- no additional parts required for installation
• uService® NOT available on SAE products -- tampering voids warranty
• Limited Lifetime Warranty valid only if unit is sent back for repairs
• Sold as a pair (2 lights)

Features

• SAE J583 fog lamp compliant -- fully road-legal
• 2,420 lumens per light / 15,800 candela per light
• 56% luminous flux increase over previous generation SAE model
• Aspheric projector optics -- sharp Zone 1 cutoff pattern
• Baja Amber color -- penetrates dust, fog, and inclement weather
• 5000K Daylight color temperature -- reduced driver fatigue
• ClearView optics -- controlled beam, minimized scatter and glare
• MoistureBlock -- IP69K waterproof to 9 ft
• CopperDrive -- LEDs driven at 100% rated output
• IK10 mechanical impact resistance
• Exceeds MIL-STD810G durability testing
• Hard anodized powder coated cast aluminum housing
• Made in USA
• 30-day satisfaction guarantee
• Limited Lifetime Warranty

Specifications

• Part Number: 447718
• Series: Squadron-R SAE
• Type: Fog Pocket Light Kit
• Color / Output: Amber (Baja Amber)
• Light Pattern: SAE Fog (Zone 1)
• Lumens per Light: 2,420
• Candela per Light: 15,800
• Wattage per Light: 29W
• Color Temperature: 5000K Daylight
• Housing: Hard Anodized Powder Coated Cast Aluminum
• Bezel: Billet Machined Aluminum
• Lens: Hard Coated Polycarbonate
• Hardware / Bracket: Stainless Steel
• IP Rating: IP69K
• Impact Rating: IK10
• Compliance: SAE J583, MIL-STD810G
• GTIN: 00819314029924
• Quantity: Pair (2 lights)
• Country of Origin: USA
• Warranty: Limited Lifetime

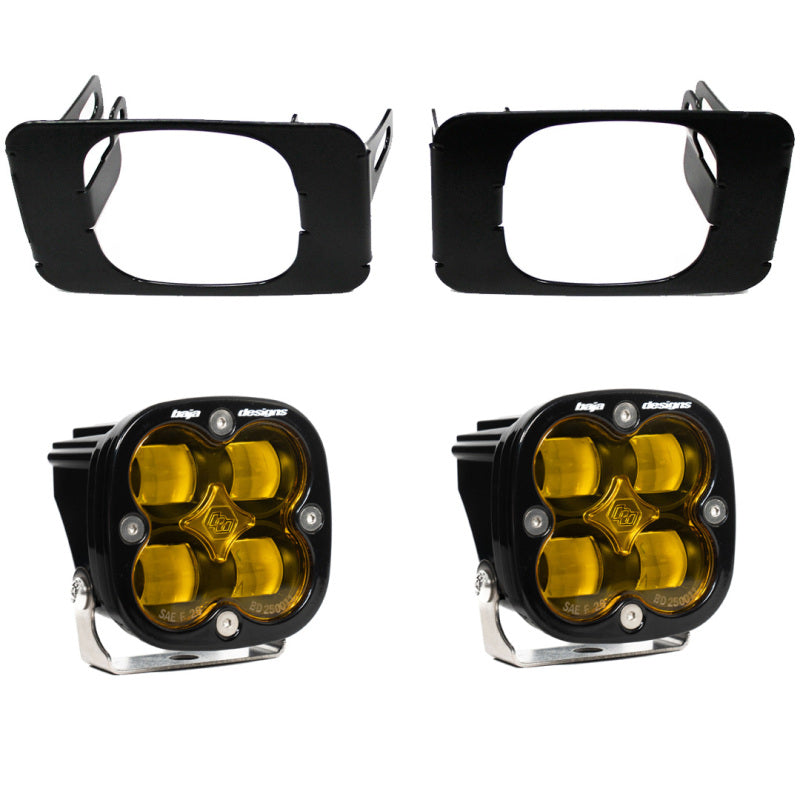

Included Components

• 2x Squadron-R SAE Amber LED fog lights
• Vehicle-specific mounting brackets
• Wiring harness
• All hardware

Product Description

The Baja Designs 447718 is a Squadron-R SAE Fog Pocket Light Kit in Baja Amber for the 2015-2020 Ford F-150 and 2017-2022 Ford F-250/F-350 Super Duty. The kit installs directly into the factory fog light pocket locations using vehicle-specific brackets -- no additional parts or modifications required. Each light delivers 2,420 lumens at 15,800 candela on just 29 watts, representing a 56% luminous flux increase over Baja Designs' previous generation SAE model, all while meeting the SAE J583 fog lamp standard for full on-road legality.

The Squadron-R SAE uses aspheric projector optics to produce a sharp, controlled Zone 1 cutoff pattern -- the near-field illumination zone directly in front of the vehicle that is most critical in fog, dust, and precipitation. The Baja Amber output is specifically selected for adverse weather penetration, cutting through particulates that scatter white light. ClearView optics, MoistureBlock (IP69K waterproof to nine feet), CopperDrive (100% rated LED output), and a hard anodized powder coated cast aluminum housing ensure performance and durability across all conditions. Note: uService is not available on SAE products -- tampering with the unit will void the warranty; warranty service requires returning the unit to Baja Designs. Backed by Baja Designs' 30-day satisfaction guarantee and Limited Lifetime Warranty.
