Baja Designs 440076 Squadron 2.0 Sport Fog Kit Amber Ford F-150 Tacoma Tundra

Vehicle Fitment

• 2006-2014 Ford F-150 (All Trims Except SVT Raptor)
• 2005-2011 Toyota Tacoma (All Trims)
• 2007-2013 Toyota Tundra (All Trims)

Fitment Notes

• Does not fit the 2010-2014 Ford F-150 SVT Raptor - the Raptor uses a dedicated, separate fog pocket bracket kit.
• Does not fit 2012+ Toyota Tacoma or 2014+ Toyota Tundra - those model years use a different bracket (see separate Baja Designs Toyota 12-23 Tacoma / 14-21 Tundra kits).
• Lens color for this SKU (440076) is Baja Amber Wide Cornering. The Clear Wide Cornering variant is SKU 440075.
• Plug-and-play installation using factory fog switch - no cutting, drilling, or splicing required.

Features

• Next-generation Squadron 2.0 Sport optics deliver 3,200 lumens per light at 30W - a 26% increase over the previous-generation Squadron-R Sport - with improved beam control, wider coverage, and reduced light spill.
• Baja Amber lens is purpose-engineered to minimize glare and enhance contrast in dust, fog, rain, and snow, providing broader and more usable illumination in challenging low-visibility conditions.
• Wide Cornering lens pattern illuminates Zones 1 and 2 with a 42-degree flattened horizontal beam - ideal for cornering, fog, dust, rain, and snow; improves peripheral situational awareness on the trail and dark backroads.
• Integrated 9-color selectable RGBW backlight (red, green, blue, magenta, cyan, amber, yellow, pink, white) configurable through the included harness with color settings retained when the lights are powered off.
• Updated uService® functionality: clip-in reflectors stay secure during lens swaps; redesigned gasket provides improved long-term sealing and protection from the elements.
• 4-pin Deutsch-style connectors standard on all wire harnesses - weatherproof, vibration-resistant, and built for demanding off-road environments.
• ClearView® optics with redesigned reflectors and lens patterns deliver more usable light with reduced driver fatigue using Baja Designs' exclusive 5000K daylight color temperature LEDs.
• CopperDrive® LED management system drives all LEDs at 100% rated power at all times for maximum output and long-term reliability.
• MoistureBlock® IP69K waterproof rating - submersible to 9 ft and pressure washable; exceeds MIL-STD810G mil-spec durability and IK10 mechanical impact standards.
• Redesigned universal mounting bracket allows increased vertical light adjustment for precise beam aim after installation.

Specifications

• Lumens (per light): 3,200
• Wattage/Amps (per light): 30W / 2.2A
• Beam Pattern: Wide Cornering (Baja Amber)
• Input Voltage: 12-32V DC
• LED Life Expectancy: 49,930 hours
• Housing: Hard Anodized Powder Coated Cast Aluminum
• Lens: Hard Coated Polycarbonate (Baja Amber)
• Connector: 4-Pin Deutsch-Style
• Water Resistance: IP69K (Waterproof to 9 ft, Pressure Washable)
• Impact Rating: IK10 Compliant
• Durability: Exceeds MIL-STD810G
• Mounting Position: Factory Fog Pocket (Left and Right)
• Color Temperature: 5000K

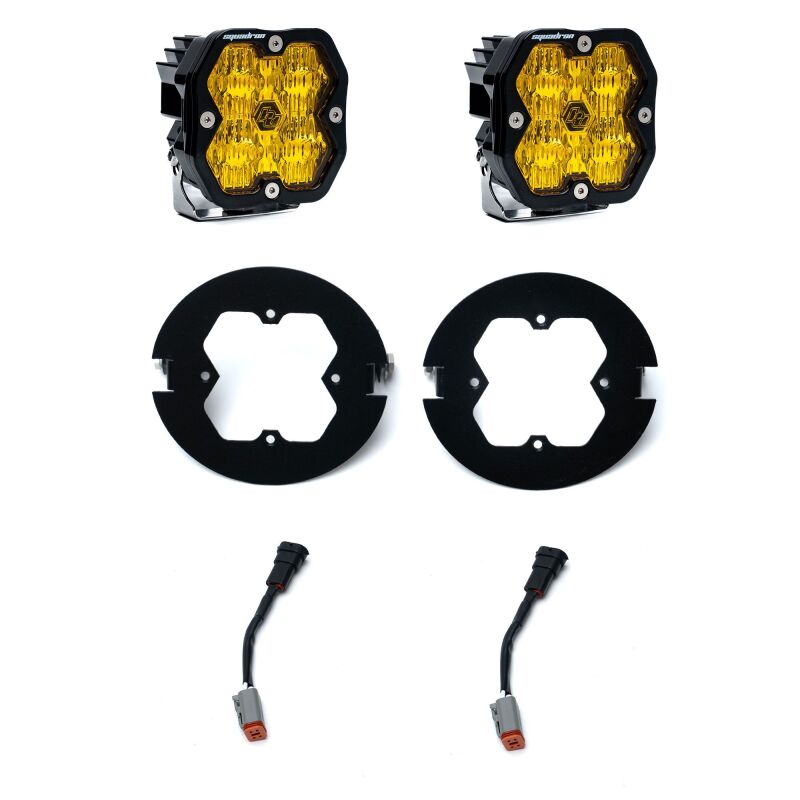

Included Components

• 2x Squadron 2.0 Sport LED Lights (Baja Amber Wide Cornering)
• 2x Vehicle-Specific Mounting Brackets
• 2x Plug-and-Play Adapter Harnesses (Factory Switch Compatible)
• 1x Backlight Add-On Harness
• 1x Mounting Hardware Kit

Product Description

The Baja Designs 440076 is the Baja Amber Wide Cornering variant of the Squadron 2.0 Sport Fog Pocket Light Kit, engineered for the 2006-2014 Ford F-150 (excluding SVT Raptor), 2005-2011 Toyota Tacoma, and 2007-2013 Toyota Tundra. These three platforms share a common fog pocket bracket design, and this kit takes full advantage of that with vehicle-specific mounting brackets that bolt directly into the factory fog pocket locations using OEM mounting points. The included plug-and-play adapter harnesses connect to the factory wiring so the lights operate through the stock fog switch - no cutting, drilling, or splicing required. The result is a clean, factory-integrated look with significantly upgraded lighting output.

At the heart of this kit are two Squadron 2.0 Sport LED lights delivering 3,200 lumens each at 30W - a 26% jump over the previous-generation Squadron-R Sport. The Baja Amber lens is Baja Designs' go-to choice for performance in challenging conditions: the amber tint cuts through dust, fog, rain, and snow with less glare and improved depth perception compared to a clear lens, while the Wide Cornering pattern spreads a 42-degree horizontal beam across Zones 1 and 2 for broader peripheral awareness on the trail and low-visibility situations on the road. New for the 2.0 generation is an integrated 9-color selectable RGBW backlight configurable through the included harness with settings saved between power cycles, along with improved uService® clip-in reflectors for secure and easy lens swaps, a redesigned sealing gasket, and rugged 4-pin Deutsch-style connectors on all harnesses.

Both lights are built to Baja Designs' race-proven standards: hard anodized powder coated cast aluminum housing, hardcoated polycarbonate lens, stainless steel hardware, IP69K waterproofing (submersible to 9 ft, pressure washable), MIL-STD810G mil-spec durability certification, and IK10 mechanical impact compliance. CopperDrive® technology ensures LEDs operate at 100% rated power continuously for maximum output and long-term performance. Note that this kit does not fit the F-150 SVT Raptor (2010-2014), which uses its own dedicated fog bracket. Every Baja Designs kit is backed by a 30-Day Satisfaction Guarantee and a Lifetime Limited Warranty.
