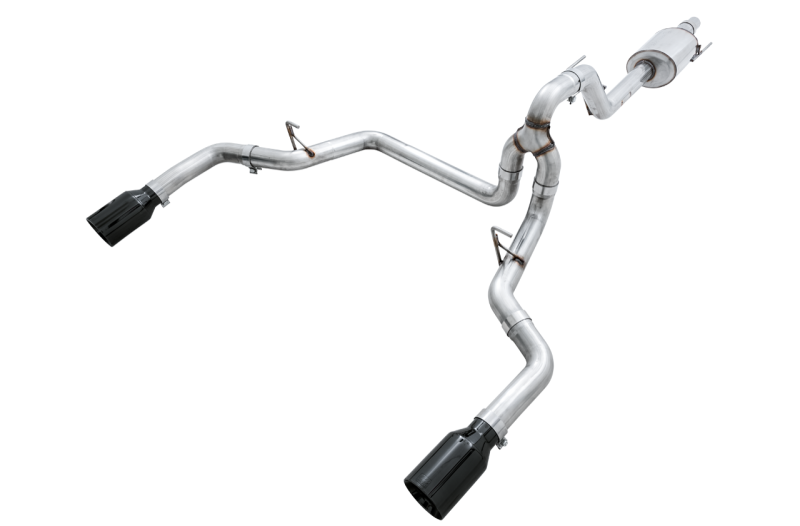

AWE 3015-33120 0FG Dual Exit Exhaust for 2015-20 Ford F-150 V8

Vehicle Fitment

• 2015-2020 Ford F-150 V8 models (5.0-L Coyote, 3.5-L & 2.7-L EcoBoost, 3.3-L V6), all wheelbase configurations with flat rear bumper (non-cut-out).

Fitment Notes

• Dual-exit cat-back system with diamond black 5- slash-cut tips.
• Not compatible with F-150s that have factory rear bumper cutouts (e.g., tow hooks or exhaust outlets built-in).
• Includes modular tip outlets allowing bolt-on switch between dual rear exit and dual side-exit configurations.
• Vehicle must have V8 or EcoBoost V6; not compatible with older V6 pre-2015 models.

Features

• CNC mandrel-bent 3- U.S.-sourced T304L stainless steel tubing (.065- wall) for maximum flow and strength.
• Precision straight-through design with single resonator and optional bashguard for off-road protection.
• AWE patented 180 Technology® drone cancellation for smooth cruising without resonance in the cabin.
• Modular "0FG" tip outlet system for configurable rear- or side-exit styling.
• Diamond Black double-walled 5- slash-cut tips with AWE logo finish.
• Plug-and-play installation using factory hangers - no cutting or welding required.
• Backed by lifetime warranty on tubing and No-CEL guarantee; tip finish carries 1-year warranty.

Specifications

• Piping Diameter: 3.00- mandrel-bent tubing, 0.065- wall thickness.
• Material: U.S.-sourced T304L stainless steel.
• Tip Size: 5.00- diameter, double-walled slash-cut in diamond black finish.
• Configurations: Dual rear exit or side exit via interchangeable tip outlets.
• Weight: ~60-lb system weight (varies slightly by wheelbase); heavy-duty construction for F-150 payload loads.
• Performance: Improved throttle response and exhaust flow; dyno gains of up to +5-hp/+7-lb-ft on V8s.
• Compliance: DOT/SAE legal; CARB exempt design, Prop-65 warning included.
• Warranty: Lifetime on tubing; 1-year on diamond black tip finish; No-CEL when installed properly.

Included Components

• Mid-pipe, resonator section, rear tailpipes with dual outlet configuration.
• 2- 5- diamond black double-walled slash-cut tips.
• Outlets and hardware to switch between rear or side-exit tip configuration.
• Hanger brackets, clamps, instructions, and warranty documents.

Product Description

The AWE Tuning 3015-33120 0FG Dual Exit Exhaust is engineered for the 2015-2020 Ford F-150 with V8 or EcoBoost V6 engines and flat rear bumper design. Featuring mandrel-bent 3- T304L stainless tubing, a straight-through layout with 180 Technology® drone-cancelling resonator, and modular tip configuration, this system delivers clean aesthetics, enhanced throttle response, and a rugged exhaust tone. Its versatile design allows for dual rear or side-exit tip placement via bolt-on outlets, while installation is plug-and-play using OEM hangers. Finished with diamond black 5- tips and backed by lifetime warranty on tubing and No-CEL guarantee, this system provides both functional performance gains (up to +5-hp/7-lb-ft) and refined off-road durability.
