AWE 3015-28063 0FG Catback Exhaust BashGuard Only for 22-26 Toyota Tundra 3.4L

Vehicle Fitment

• 2022-2026 Toyota Tundra (3.4L V6 i-FORCE, Double Cab / CrewMax, 5.5 ft & 6.5 ft bed)
• 2022-2023 Toyota Tundra (3.4L V6 i-FORCE MAX Hybrid, Double Cab / CrewMax, 5.5 ft & 6.5 ft bed)

Fitment Notes

• Does NOT fit Double Cab with 8-foot bed
• Fits i-FORCE and i-FORCE MAX (hybrid) models
• BashGuard only -- no tips; system ends after rear axle
• Accommodates factory retractable BedStep
• Wheelbase extensions included for long-wheelbase fitments
• 50-state emissions compliant -- no CEL guaranteed
• For dual tip version: AWE 3015-32063 (chrome) or 3015-42063 (diamond black)

Features

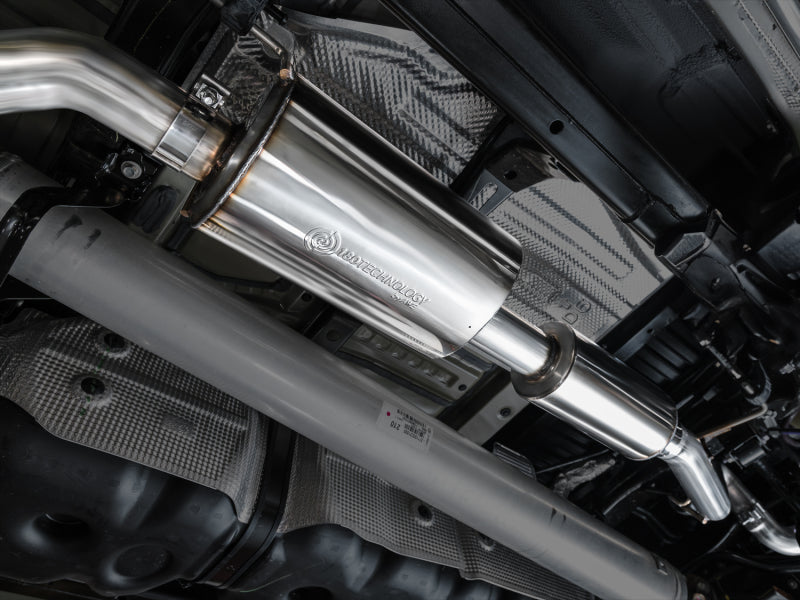

• AWE 180 Technology -- patented drone-canceling, zero in-cabin drone

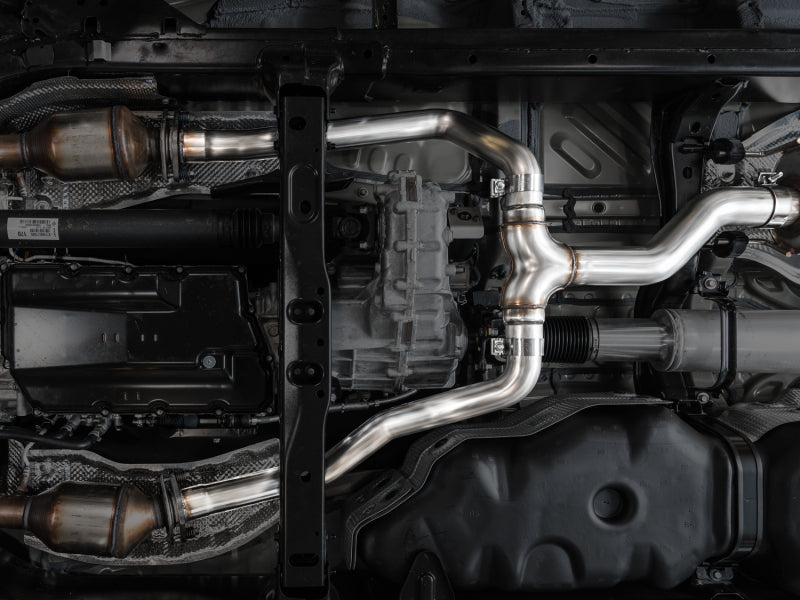

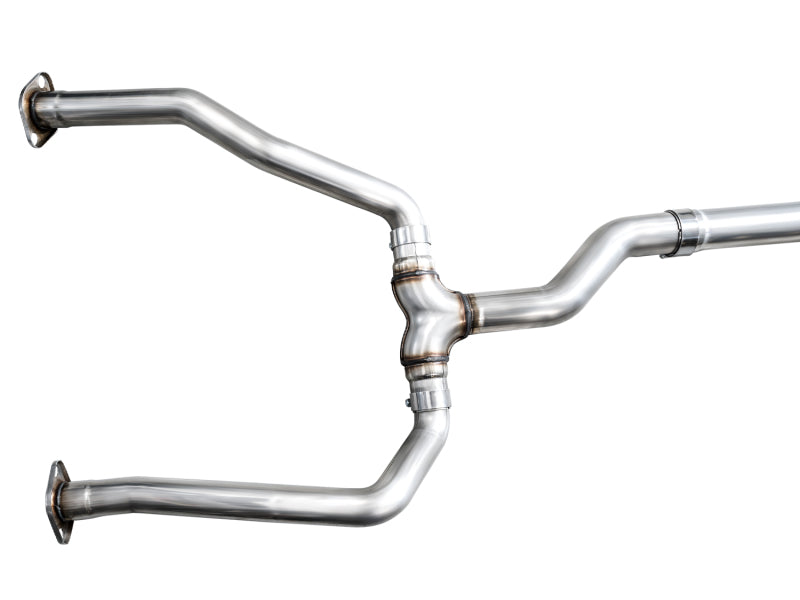

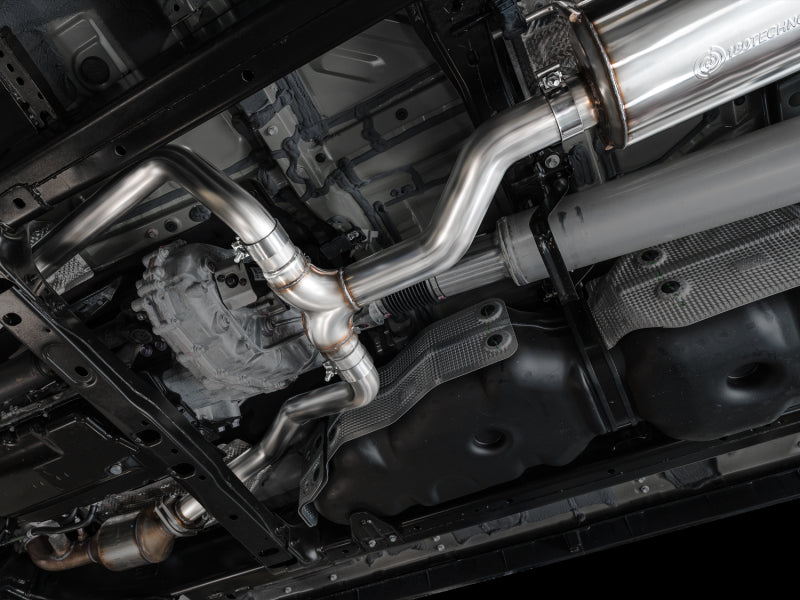

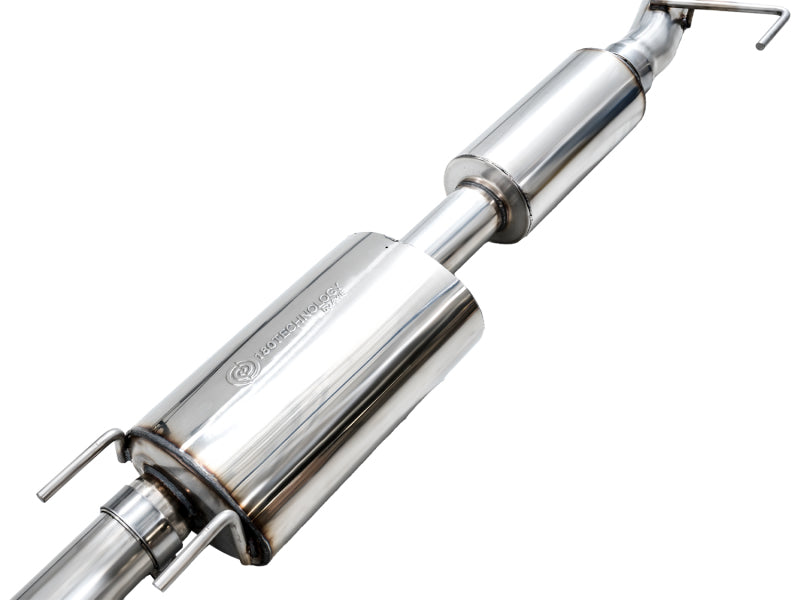

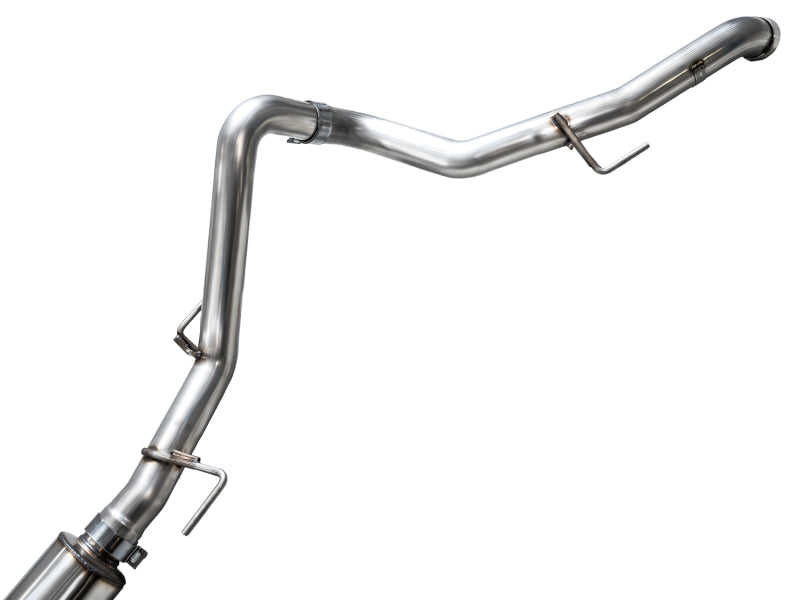

• Dual 2.5 inch equal-length front pipes into 3 inch dual-resonated midpipe

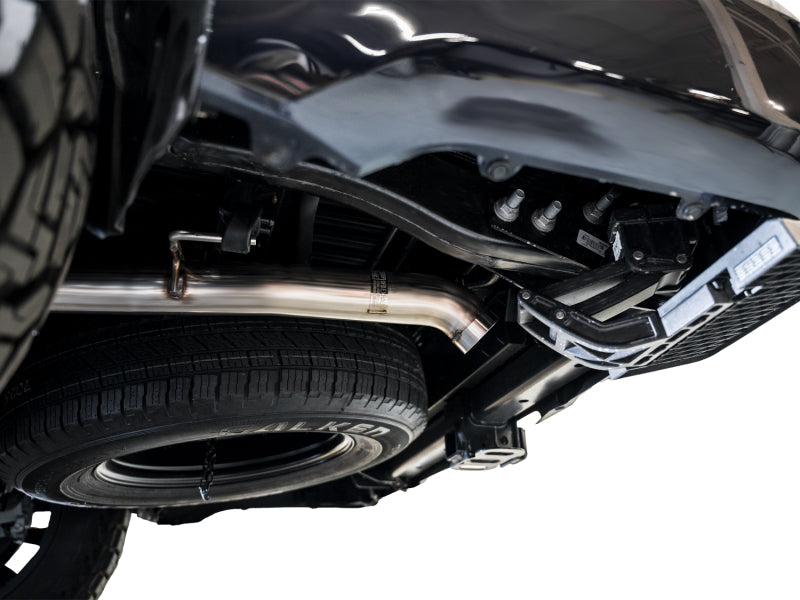

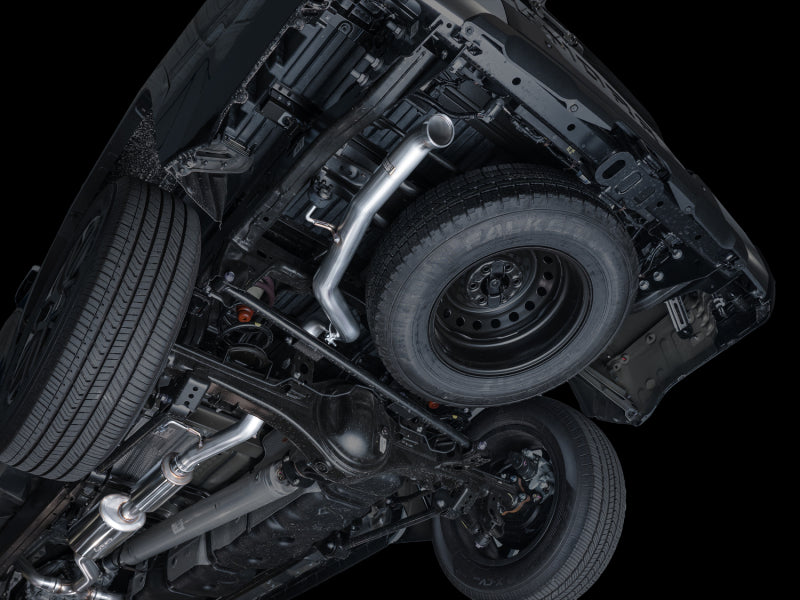

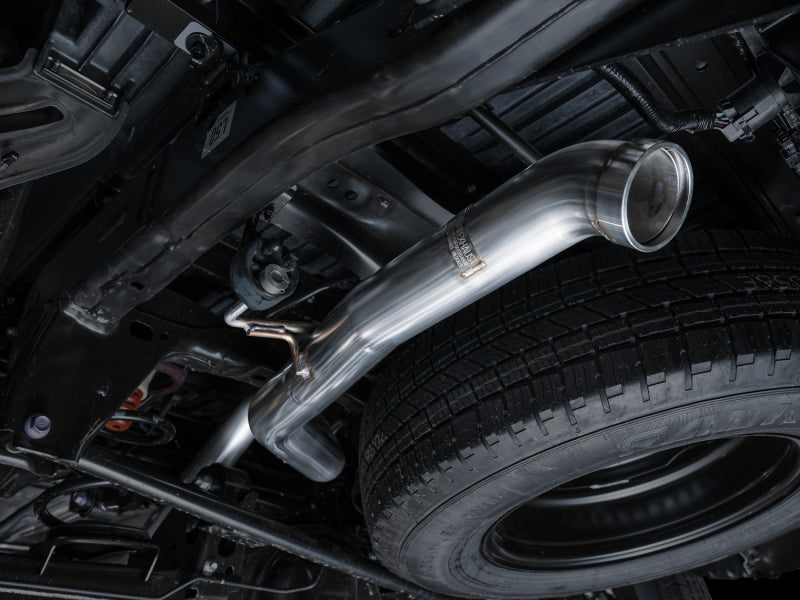

• High-clearance BashGuard outlet -- ends after rear axle, tucked above obstacles
• BashGuard ring: .125 inch reinforced stainless -- built for trail abuse
• CNC mandrel-bent T304L stainless -- .065 inch wall throughout
• Factory-matched inlet flanges -- direct bolt-on, no cutting
• Clears driveshaft loops, gas tank, and factory BedStep
• AWE Perfect Fitment Guarantee + No CEL Guarantee
• Made in the USA
• Lifetime structural warranty; 1-year tip finish warranty

Specifications

• Part Number: 3015-28063
• System Type: Cat-back
• Rear Configuration: BashGuard Only (no tip)
• Front Pipe Diameter: 2.5 inches (dual, equal-length)
• Midpipe Diameter: 3 inches
• Material: T304L stainless steel
• Wall Thickness: .065 inches
• BashGuard Ring: .125 inch reinforced stainless
• Inlet: Factory-matched flange
• Emissions: 50-state legal
• Origin: Made in USA

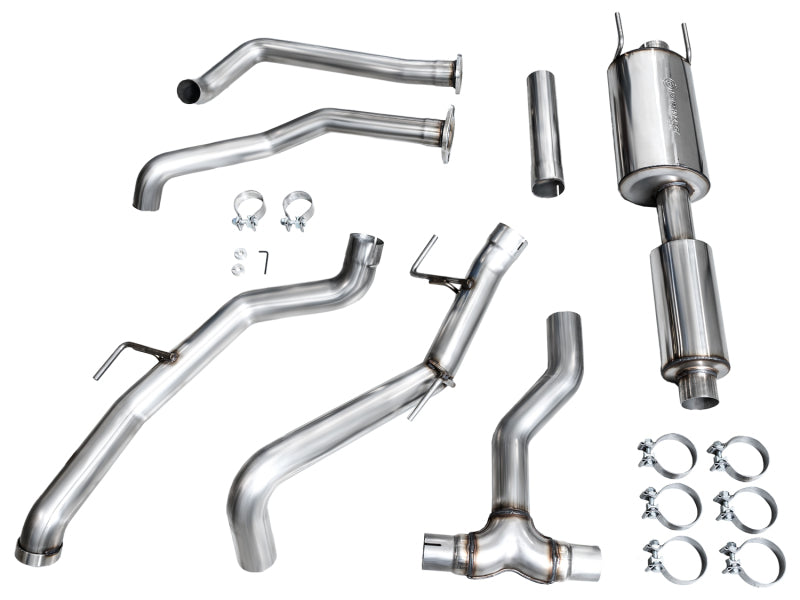

Included Components

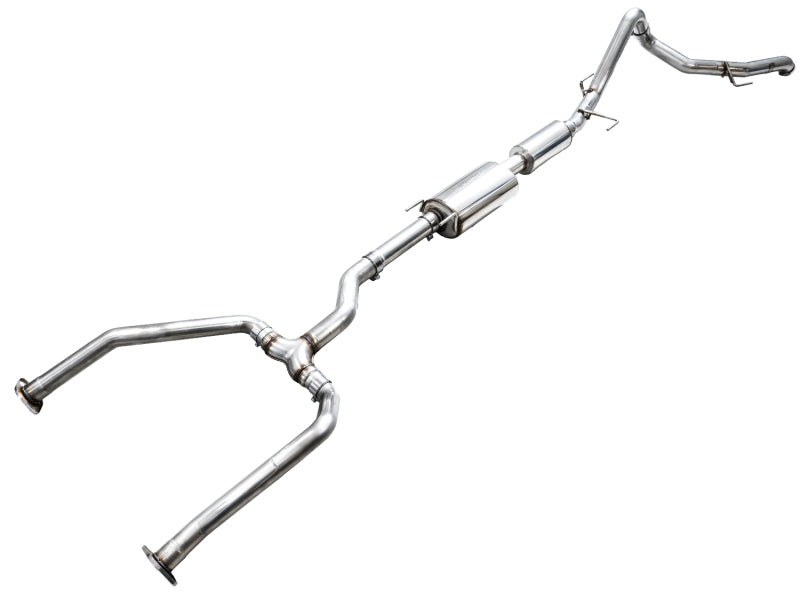

• 1x Complete 0FG cat-back exhaust system
• 1x High-clearance BashGuard outlet assembly
• 1x Wheelbase extension sections
• 1x Hardware and installation kit

Product Description

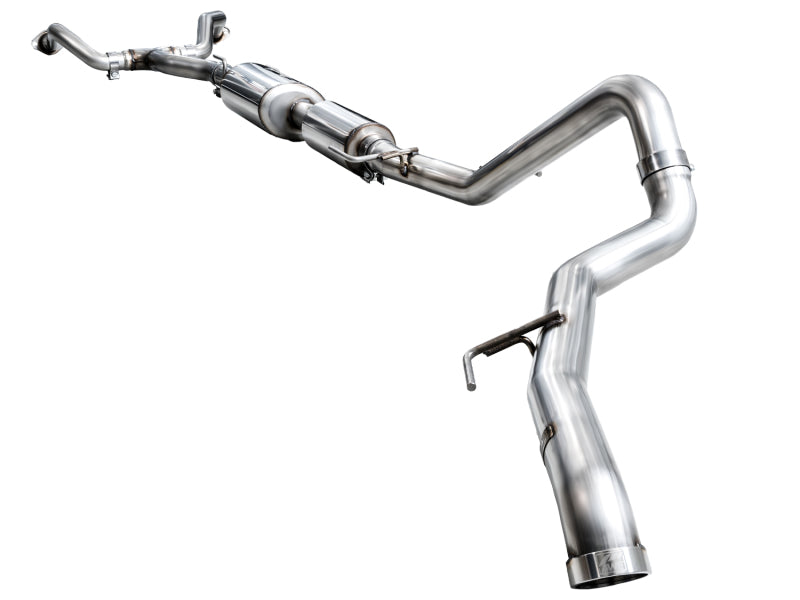

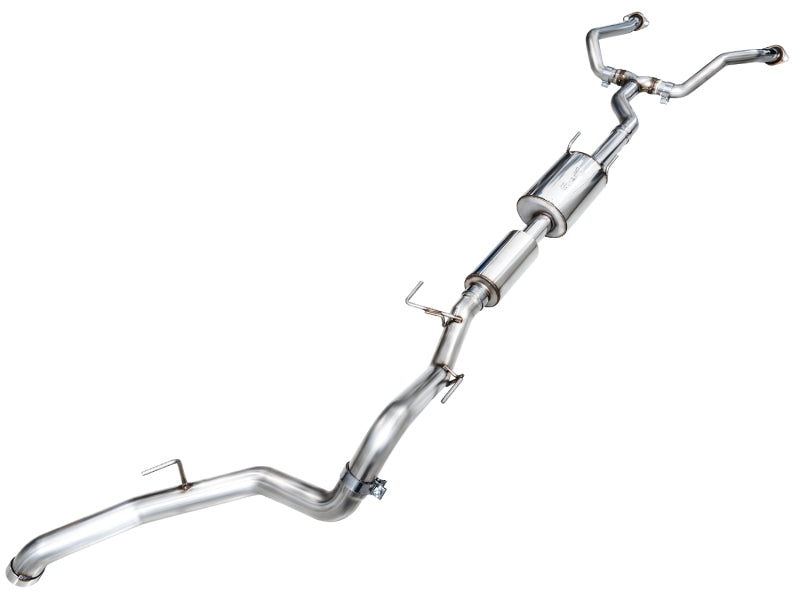

The AWE 3015-28063 is the 0FG Cat-Back Exhaust in BashGuard configuration for the 2022-2025 Toyota Tundra Gen 3, compatible with both i-FORCE and i-FORCE MAX hybrid powertrains. Dual 2.5-inch equal-length front pipes merge into a bespoke 3-inch dual-resonated midpipe tuned for the 3.4L twin-turbo V6. AWE's patented 180 Technology keeps the aggressive exhaust tone outside the cabin at highway speeds -- zero drone. The entire system is handcrafted from CNC mandrel-bent, U.S.-sourced T304L stainless steel and bolts directly to the factory inlet flange with no cutting required.

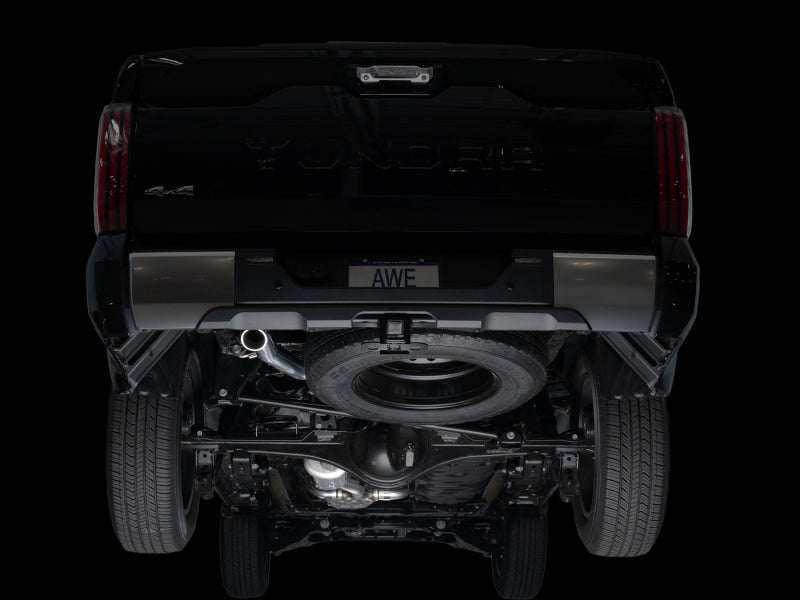

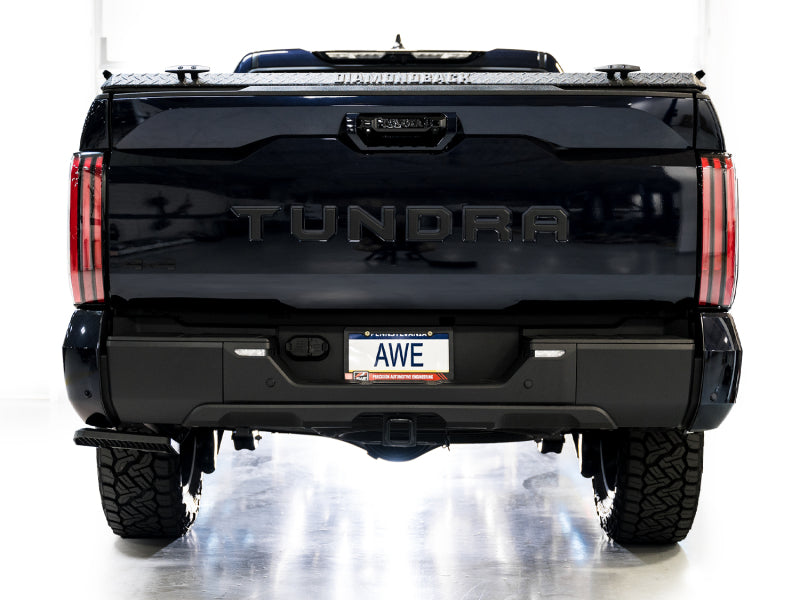

The BashGuard configuration is built for Tundra owners who wheel. Instead of extending to the bumper with tips, the system terminates after the rear axle with a .125-inch reinforced stainless ring outlet, tucked too high for trail obstacles to reach -- and still fully street-legal. Wheelbase extensions are included for 5.5 and 6.5 foot bed fitments. Does not fit Double Cab with 8-foot bed. Backed by AWE's Perfect Fitment Guarantee, No CEL Guarantee, and a lifetime structural warranty.
