AutoMeter 7400 InVision 8.8in LCD Digital Dash Universal Panel Mount Restomod

Vehicle Fitment

• Universal - fits any custom, restomod, performance street, or race vehicle with a custom or aftermarket dash panel

Fitment Notes

• Universal panel mount design - requires integration into a custom or aftermarket dash panel; not a direct-fit replacement for any specific OEM dash
• Speedometer calibrates to OEM or aftermarket vehicle speed sensors
• Tachometer calibrates for 1, 2, 3, 4, 5, 6, 8, 10, or 12 cylinder engines
• 7 user-selectable fuel level resistance ranges accommodate OEM and aftermarket sending units
• Compatible with AutoMeter CAN Bridge Modules for use with EFI engine management systems (sold separately)

Features

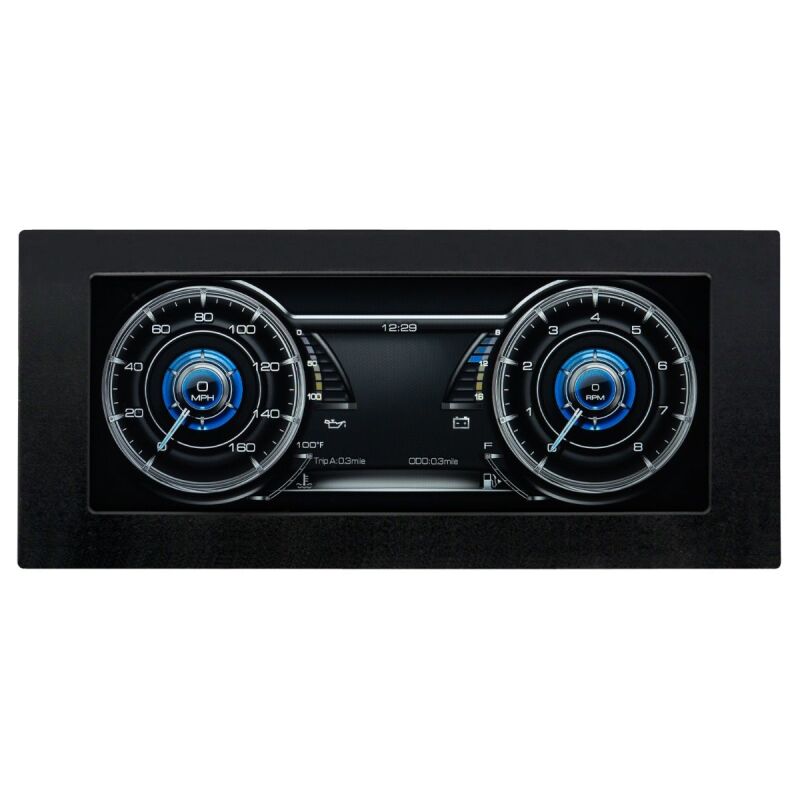

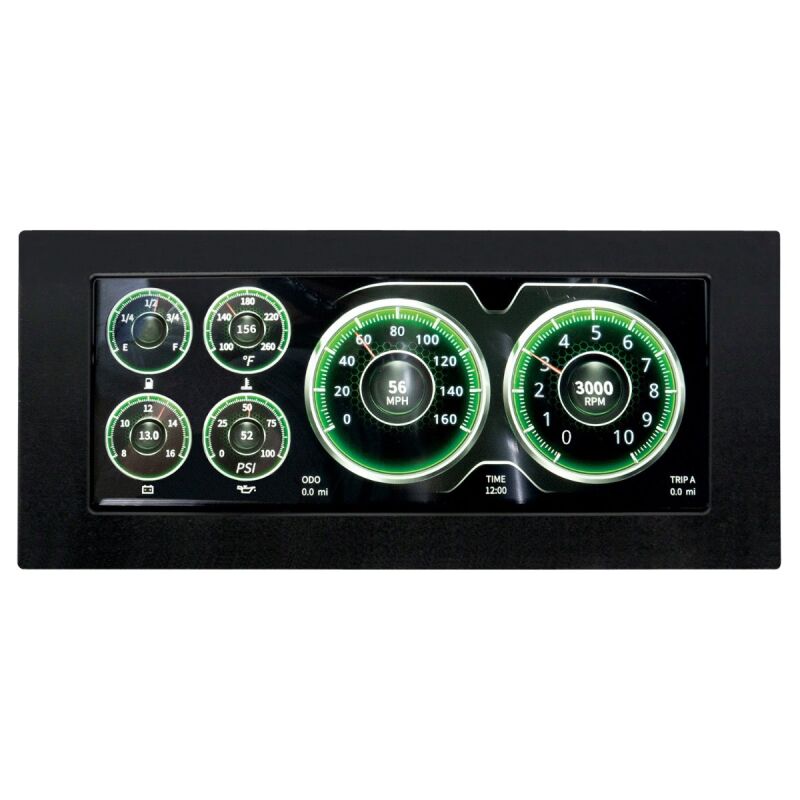

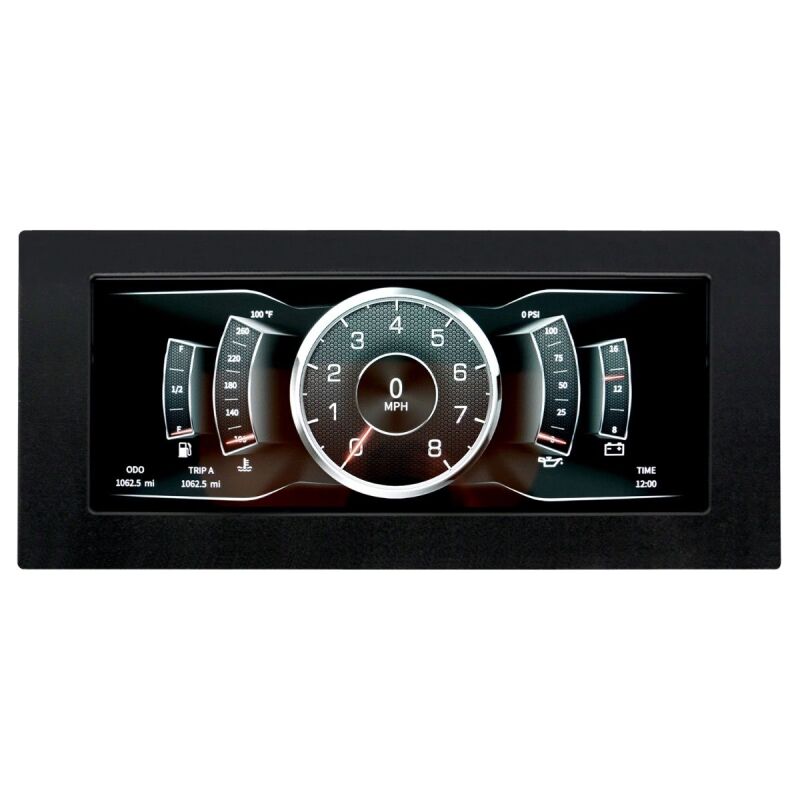

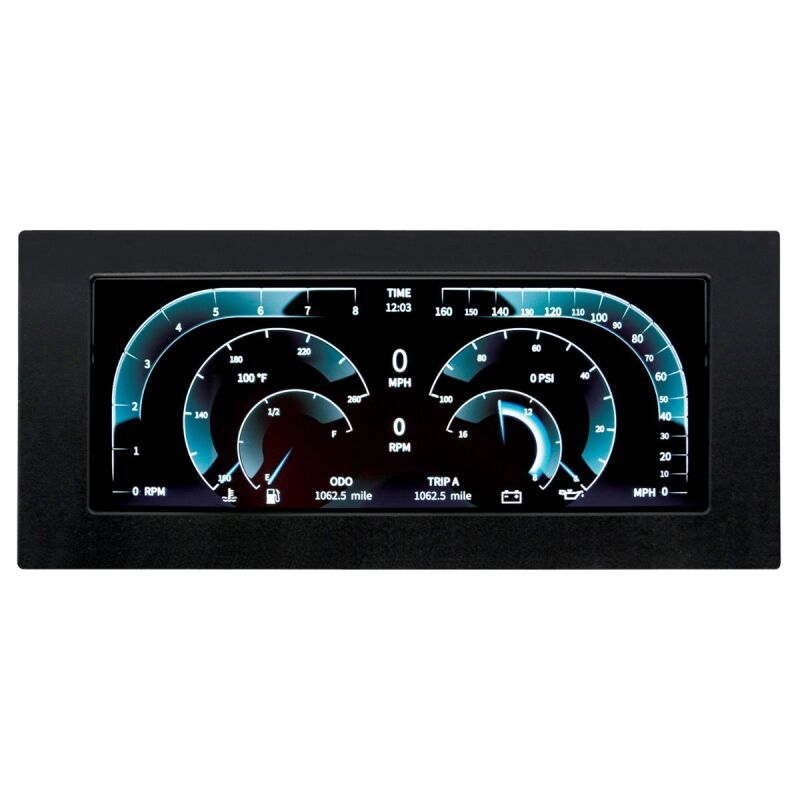

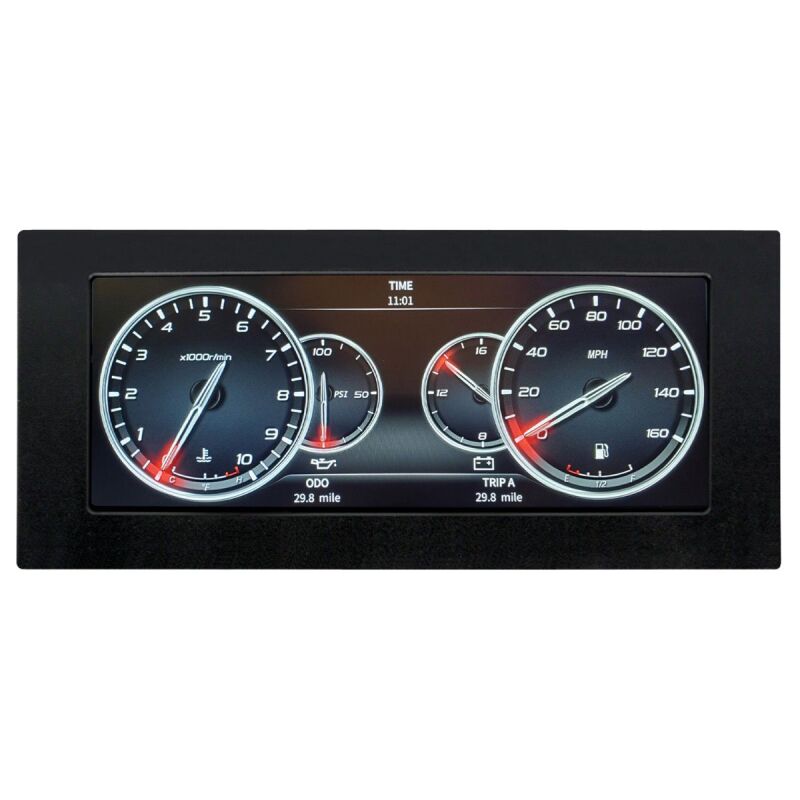

• High-resolution 8.8 in. LCD display with five user-selectable screen layouts and customizable color themes
• Monitors speedometer, tachometer, fuel level, oil pressure, water temperature, and voltage from a single display
• On-screen indicators for clock, high beam, turn signals, odometer, and trip meter
• Visual and audible warning alerts for low fuel, low oil pressure, high water temperature, and low/high voltage
• Intuitive joystick controller for menu navigation - keeps the screen free of fingerprints and buttons
• Displays in imperial or metric measurements with adjustable RPM range
• Compact 8.8 in. form factor - smaller than the 12.3 in. InVision series for tight or space-limited dash installations
• Made in the USA

Specifications

• Display Type: 8.8 in. High-Resolution LCD
• Screen Layouts: 5 User-Selectable
• Color Options: Multiple per screen (gray, blue, red, green, purple, yellow, orange)
• Monitored Parameters: Speedometer, Tachometer, Fuel Level, Oil Pressure, Water Temperature, Voltage
• Cylinder Compatibility: 1, 2, 3, 4, 5, 6, 8, 10, 12 cylinder
• Fuel Sender Resistance Ranges: 7 user-selectable
• Measurement Display: Imperial or Metric
• Mount Style: Universal Panel Mount
• Fitment: Universal

Included Components

• 1x InVision 8.8 in. LCD Digital Dash Display
• 1x Pre-Terminated Wiring Harness
• 1x Water Temperature Sending Unit (AutoMeter P/N 2258)
• 1x Oil Pressure Sending Unit (AutoMeter P/N 2242)
• 1x Joystick Controller
• 1x Mounting Bracket Hardware Kit
• 3/8 in. NPT and 1/2 in. NPT Adapter Fittings

Product Description

The AutoMeter 7400 InVision 8.8 in. LCD Digital Dash is a universal panel-mount instrumentation system built for custom builds, restomods, and performance street and race applications where a smaller form factor is needed. Featuring a high-resolution 8.8 in. LCD display with five user-selectable screen layouts and multiple color themes, it consolidates six critical monitoring functions - speedometer, tachometer, fuel level, oil pressure, water temperature, and voltage - into one clean, modern interface. On-screen indicators for high beam, turn signals, clock, and odometer keep the driver fully informed without additional hardware.

The joystick controller provides quick, precise menu navigation without requiring touchscreen interaction, keeping the display clean and the setup intuitive. The system ships with a pre-terminated wiring harness, oil pressure and water temperature senders, and all mounting hardware needed for installation. Compatible with AutoMeter CAN Bridge Modules for integration with EFI engine management systems. Made in the USA.
