AutoMeter 7404 InVision 8.8in LCD Digital Dash 1967-72 Chevy C10/C/K GMC Truck

Vehicle Fitment

• 1967-1972 Chevrolet C10 Truck (All Trims, All Engines)
• 1967-1972 Chevrolet C/K Pickup Truck (All Trims, All Engines)
• 1967-1972 Chevrolet K5 Blazer (All Trims, All Engines)
• 1967-1972 Chevrolet Suburban (All Trims, All Engines)
• 1967-1972 GMC C/K Pickup Truck (All Trims, All Engines)

Fitment Notes

• Direct-fit design with robust injection-molded housing - engineered to install seamlessly into the factory dash opening with no cutting or modification required
• Speedometer calibrates to GPS, OEM, or aftermarket vehicle speed sensors
• Tachometer calibrates for 1, 2, 3, 4, 5, 6, 8, 10, or 12 cylinder engines
• 7 user-selectable fuel level resistance ranges to accommodate OEM and aftermarket sending units
• Compatible with AutoMeter CAN Bridge Modules for EFI integration - CAN Bridge for 2008+ vehicles (P/N 9113) and CAN Bridge for Holley EFI (P/N 9111), sold separately

Features

• High-resolution 8.8 in. full-color LCD display with five user-selectable screen layouts and color customization
• Monitors speedometer, tachometer, fuel level, oil pressure, water temperature, and voltage from a single display
• On-screen indicators for clock, high beam, turn signals, odometer, and trip meter
• Visual and audible warning alerts for low fuel, low oil pressure, high water temperature, and low/high voltage
• Intuitive joystick controller for menu navigation - no touchscreen buttons, no fingerprints
• Displays in imperial or metric measurements with adjustable RPM range
• OEM-style appearance - injection-molded housing designed to match the factory dash opening profile
• Made in the USA

Specifications

• Display Type: 8.8 in. High-Resolution Full-Color LCD
• Screen Layouts: 5 User-Selectable
• Color Options: Multiple per screen (gray, blue, red, green, purple, yellow, orange)
• Monitored Parameters: Speedometer, Tachometer, Fuel Level, Oil Pressure, Water Temperature, Voltage
• Cylinder Compatibility: 1, 2, 3, 4, 5, 6, 8, 10, 12 cylinder
• Fuel Sender Resistance Ranges: 7 user-selectable
• Measurement Display: Imperial or Metric
• Mount Style: Direct-Fit (1967-1972 Chevy/GMC Truck)
• Housing Material: Injection-Molded Plastic

Included Components

• 1x InVision 8.8 in. LCD Direct-Fit Digital Dash Display and Housing
• 1x Pre-Terminated Wiring Harness
• 1x Water Temperature Sending Unit
• 1x Oil Pressure Sending Unit
• 1x Joystick Controller
• 1x Mounting Hardware Kit
• 3/8 in. NPT and 1/2 in. NPT Adapter Fittings

Product Description

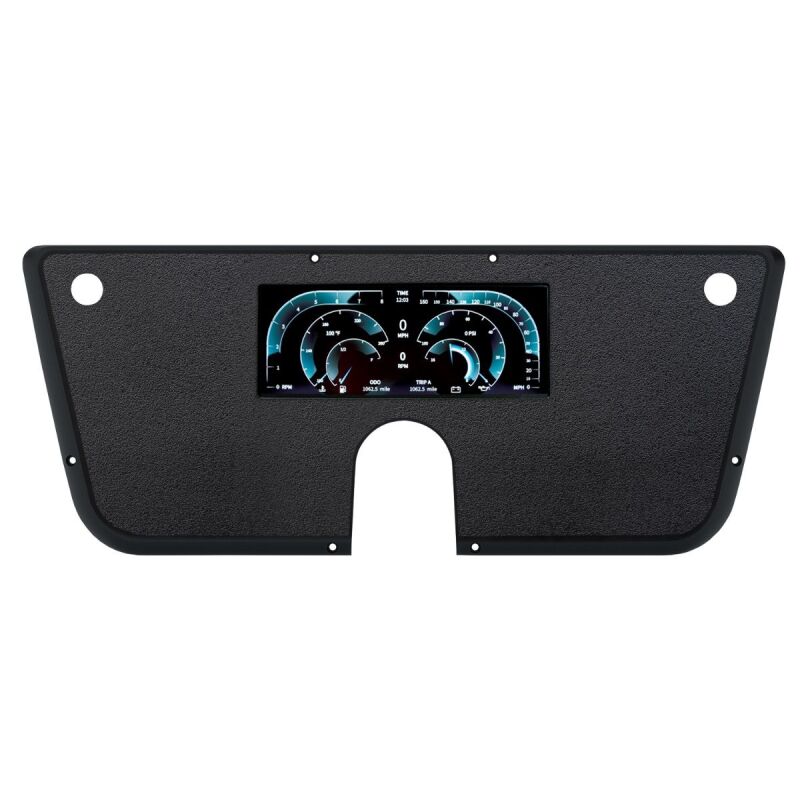

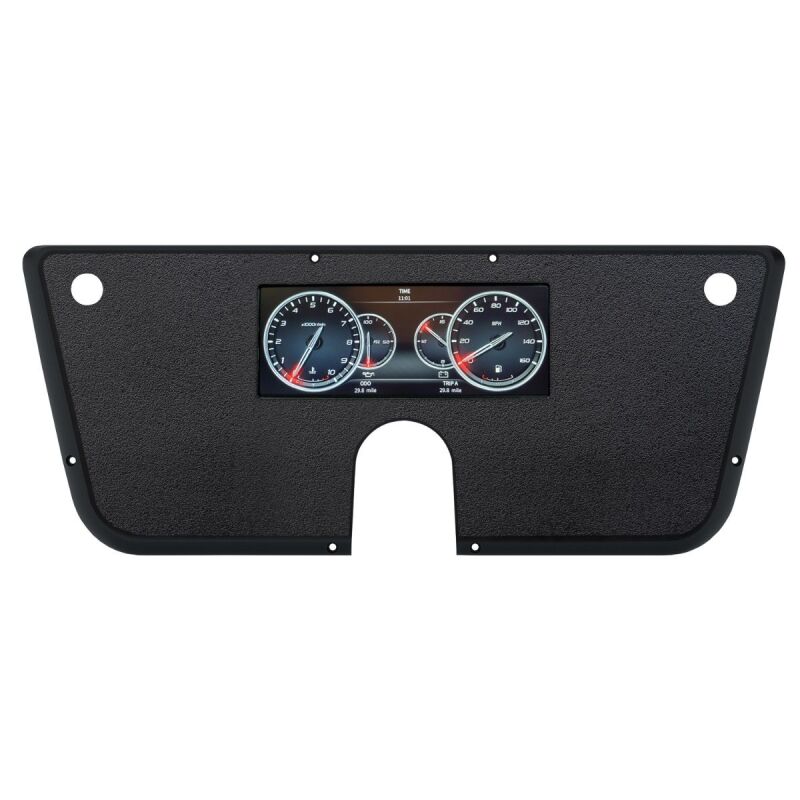

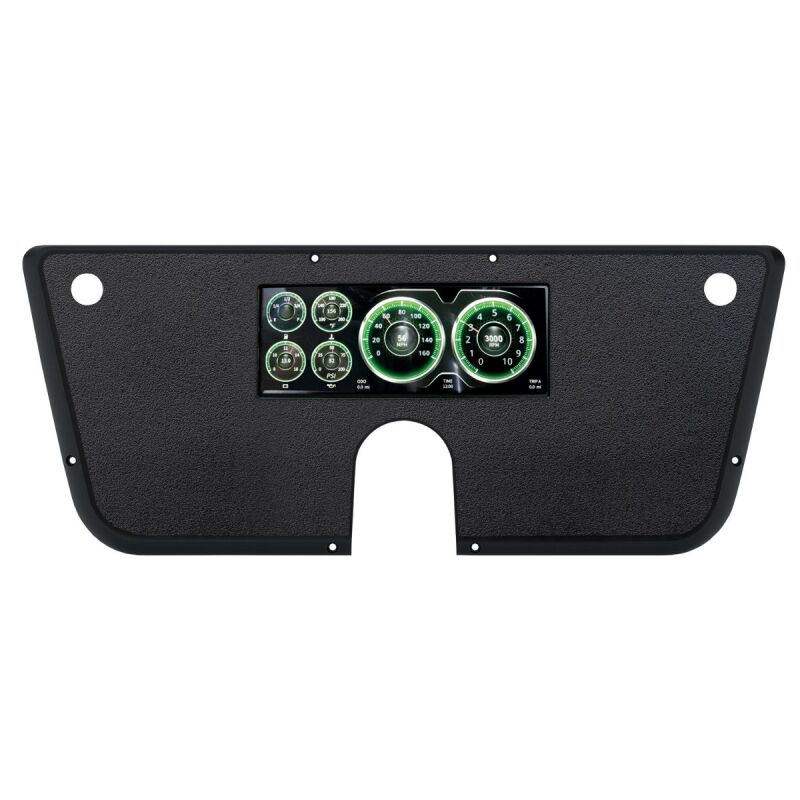

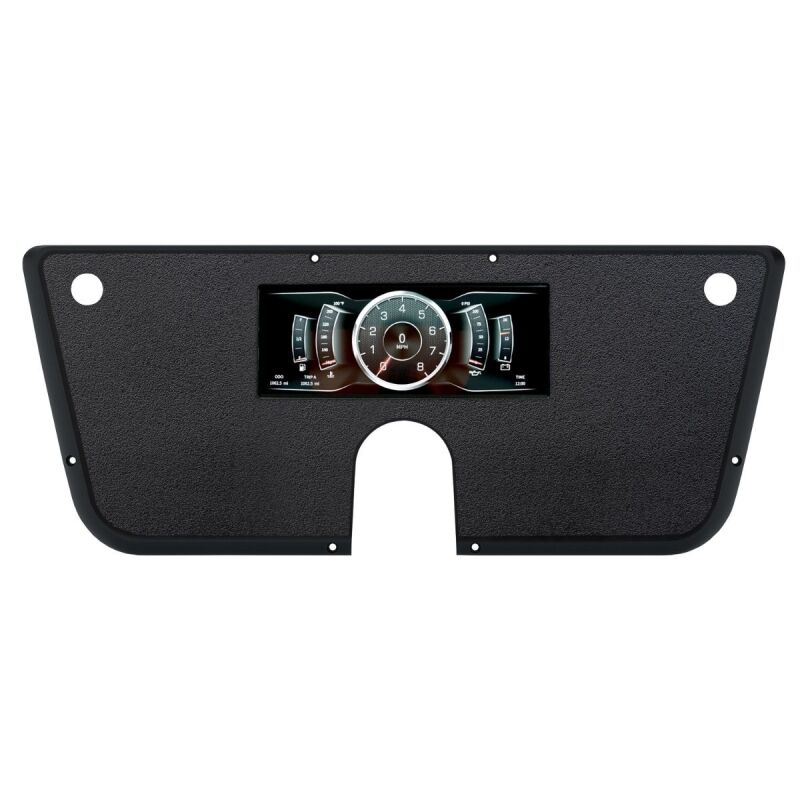

The AutoMeter 7404 InVision 8.8 in. LCD Digital Dash is the direct-fit version of AutoMeter's compact InVision display, purpose-built for the 1967-1972 Chevrolet and GMC C/K trucks, C10, K5 Blazer, and Suburban. Unlike the universal 7400 model, the 7404 features a robust injection-molded housing engineered to drop cleanly into the factory dash opening for a finished, OEM-style appearance with no cutting or custom fabrication required. The 8.8 in. high-resolution color LCD displays all six critical vehicle parameters - speedometer, tachometer, fuel level, oil pressure, water temperature, and voltage - across five customizable screen layouts with multiple color themes.

The included joystick controller keeps the display clean and navigation simple. Visual and audible alarms alert the driver to low fuel, low oil pressure, high water temperature, and voltage issues. Compatible with AutoMeter CAN Bridge Modules for plug-and-play integration with Holley EFI and other CAN-based engine management systems (sold separately). A complete wiring harness and sending units are included. Made in the USA.
