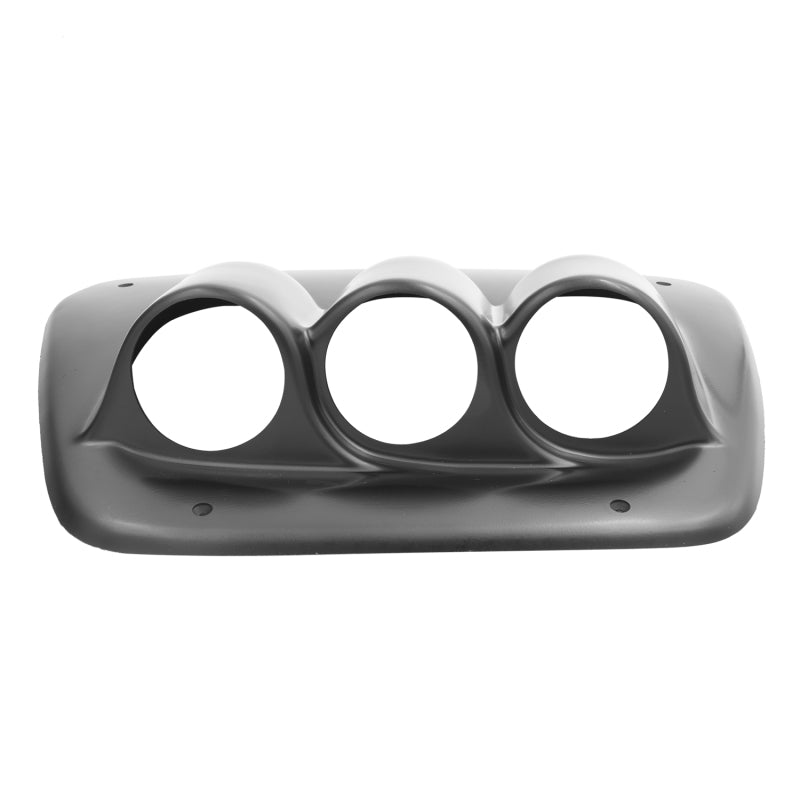

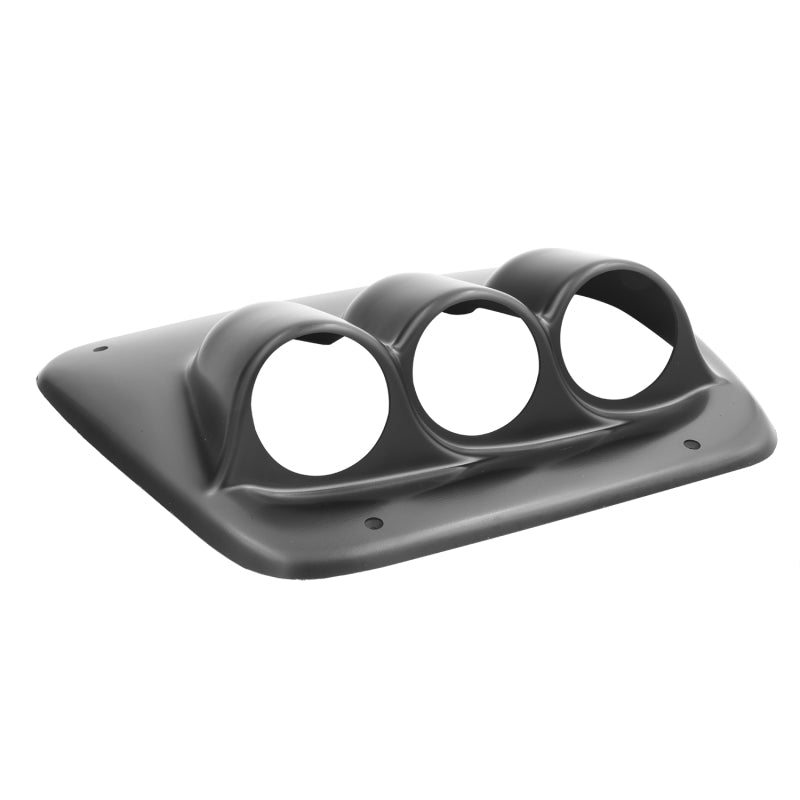

AutoMeter 20018 Triple Dash Gauge Pod 2-1/16in 2002-2007 Subaru Impreza WRX/STI

Vehicle Fitment

• 2002-2007 Subaru Impreza (All Trims, EJ15 / EJ20 / EJ25, AWD)
• 2002-2007 Subaru Impreza WRX (EJ20 Turbo 2.0L, AWD)
• 2004-2007 Subaru Impreza WRX STI (EJ257 Turbo 2.5L, AWD)

Fitment Notes

• Installs in the factory clock location in the center dash - replaces the OEM clock assembly
• Pod must be painted to match the interior color - does NOT come pre-color-matched from the factory
• Vehicle-to-vehicle inconsistencies may require minor fitment adjustment or slight fabrication
• When used with mechanical pressure gauges, additional tubing may be required for routing
• Gauges are NOT included - pod accepts three 2-1/16" (52mm) diameter gauges, sold separately
• WRX STI was not sold in the US market until the 2004 model year - does NOT fit 2002-2003 STI (JDM)

Features

• Installs in the factory clock location for a clean, integrated dash appearance
• Triple 2-1/16" gauge openings angle slightly toward the driver for optimal at-a-glance visibility
• Does not obstruct the driver's view of the road
• Molded from black RevoTech ABS plastic - resistant to heat warping, fading, and cracking
• Paintable to match any interior or dash color for a seamless, OEM-style finish
• Compatible with all 2-1/16" AutoMeter gauges and most other aftermarket 52mm gauge brands
• Includes all required mounting hardware and detailed installation instructions
• Made in the USA; backed by a 3-year limited warranty

Specifications

• Gauge Diameter: 2-1/16 in. (52mm)
• Number of Gauge Openings: 3
• Pod Style: Dash Top / Center Clock Location
• Position: Center Dashboard (Factory Clock Location)
• Material: RevoTech ABS Plastic
• Finish: Black (Paintable)
• Gauges Included: No
• Hardware Included: Yes
• Warranty: 3-Year Limited
• Quantity: Sold Individually (1 Pod)

Included Components

• 1x Triple Dash Gauge Pod
• 1x Mounting Hardware Kit
• 1x Installation Instructions

Product Description

The AutoMeter 20018 is a triple dash gauge pod engineered to fit directly into the factory clock location of the 2002-2007 Subaru Impreza, WRX, and 2004-2007 WRX STI. It accepts three 2-1/16" (52mm) gauges - ideal for monitoring boost, oil pressure, water temperature, or other critical engine data - and angles them slightly toward the driver for easy at-a-glance visibility without obstructing the road ahead.

The pod snaps into the factory clock cutout using the included hardware for a clean, integrated look. Since it is molded in black ABS plastic, painting to match your dash color is required for a seamless finish. Compatible with all 2-1/16" AutoMeter gauges and most major aftermarket 52mm gauge brands. Note: minor fitment variations between vehicles may require slight adjustment during installation, and additional tubing may be needed for mechanical gauge applications.
