ATS 314-169-2326 68RFE Case Brace Support for 2007.5-2024 Ram 6.7L Cummins

Vehicle Fitment

• 2007.5-2024 Ram 2500/3500 (6.7L Cummins, 68RFE Automatic Transmission)

Fitment Notes

• Requires 68RFE transmission; not for 545RFE-equipped gas trucks or Aisin AS69RC-equipped applications

Features

• External 2-piece steel girdle design
• Reinforces transmission case against cracking
• Addresses common 68RFE case failure point
• Works alongside deep pans and other supports for added rigidity
• Heavy-duty steel construction
• Bolt-on installation
• Suited for stock and performance-tuned applications
• Backed by manufacturer limited warranty

Specifications

• Material: Steel
• Design: External 2-Piece Girdle
• Weight: 8 lbs
• Dimensions: 17"L x 13"W x 8"H

Included Components

• 2x Case Brace Halves
• 1x Mounting Hardware Set

Product Description

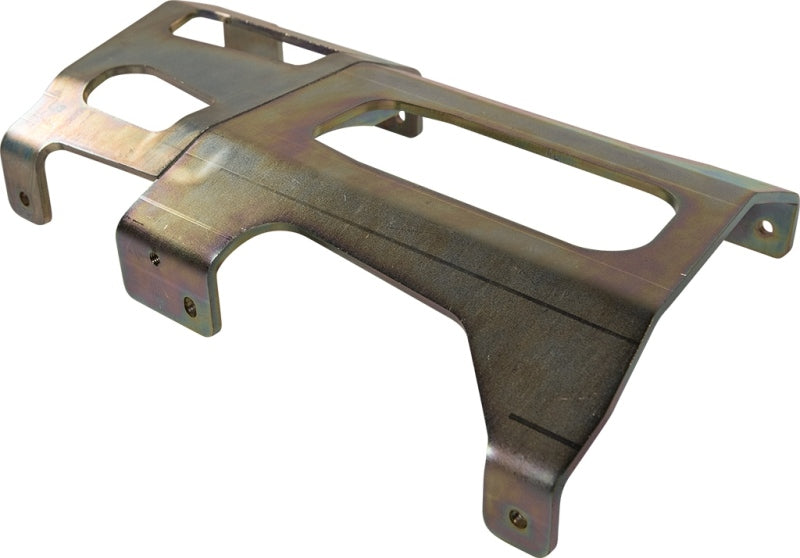

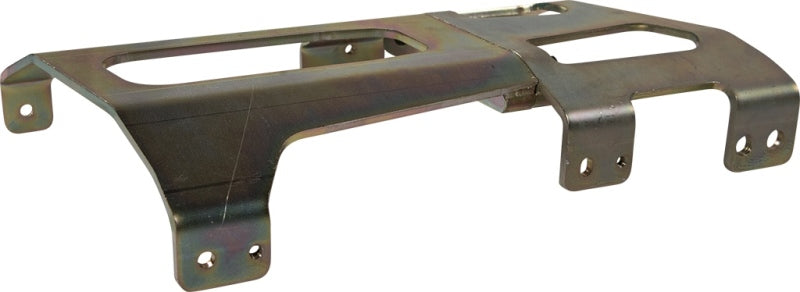

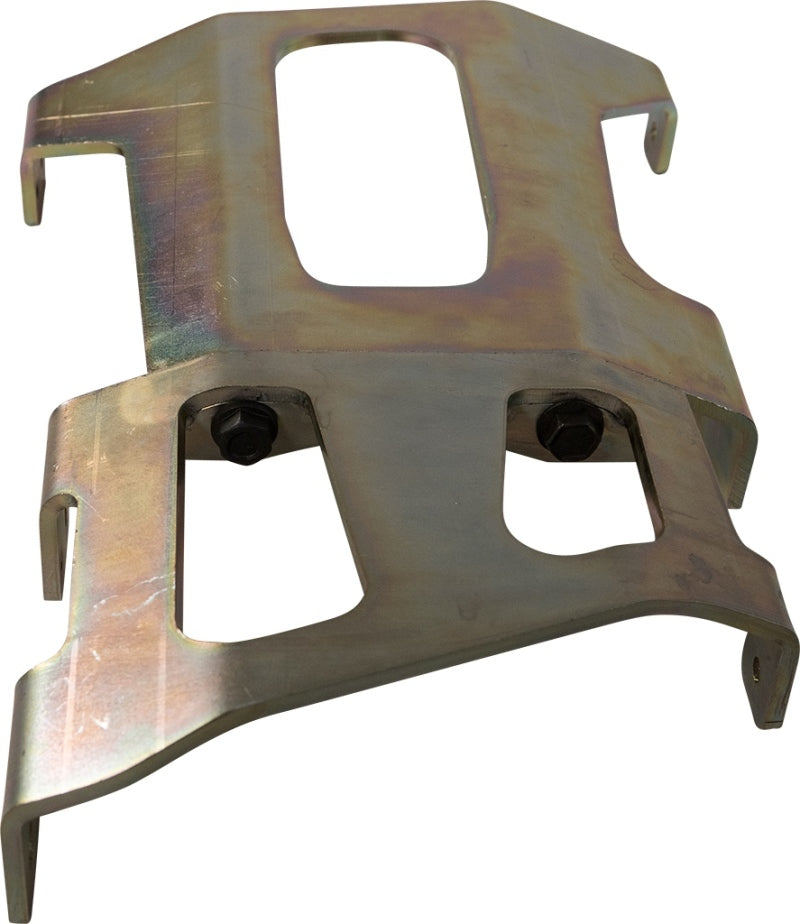

The ATS 314-169-2326 Case Brace is a 2-piece steel girdle engineered to address one of the most common failure points on the 68RFE six-speed automatic transmission: case cracking. While an upgraded pan can add some rigidity, it isn't enough on its own to prevent a cracked case under sustained load, especially in trucks running increased power.

Bolting externally around the transmission case, this brace reinforces the housing and helps protect against a failure that can otherwise leave a truck stranded with a damaged transmission. It's a smart addition for 2007.5-2024 Ram 2500/3500 6.7L Cummins owners, whether running stock power or a built/tuned setup, and is used as a core component in ATS's own 68RFE performance transmission packages.
