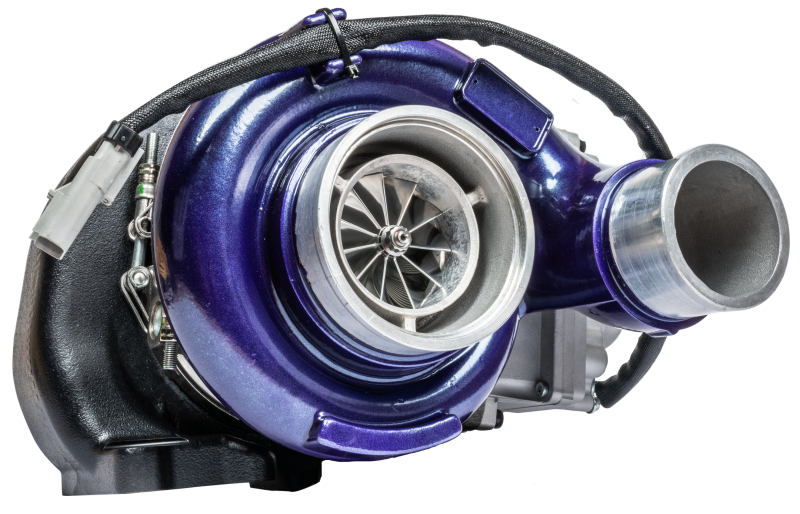

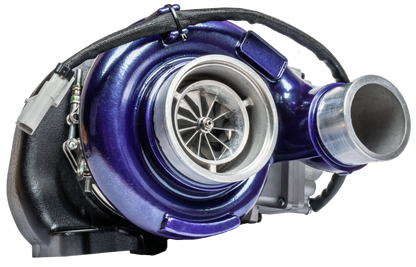

ATS Diesel 202-402-2392 Aurora 4000 VFR Stage 2 Turbo 2013-2018 Ram 6.7L Cummins

Vehicle Fitment

• 2013-2018 Dodge Ram 2500 (6.7L Cummins ISB, all trims including Cab & Chassis and 4500)
• 2013-2018 Dodge Ram 3500 (6.7L Cummins ISB, all trims including Cab & Chassis and 4500)

Fitment Notes

• Fits 2013-2018 6.7L Cummins only. Does NOT fit 2007.5-2012 6.7L Cummins (see ATS p/n 202-402-2326) or 2019+ 6.7L Cummins (see ATS p/n 202-402-2464).
• Direct drop-in replacement for the factory Holset VGT turbocharger - no modifications to existing plumbing, exhaust, or intake required.
• No tuning, programming, or emissions deletes required. Retains factory ECM communication and all OEM functions. Harness adapter included.
• A $300 core charge applies - factory turbocharger core must be returned. Core charge is fully refundable upon return; buyer is responsible for core return shipping.
• For a lower power Stage 1 option, see ATS p/n 202-302-2392 (Aurora 3000 VFR Stage 1).
• Sold as: Each (complete turbocharger assembly with actuator).

Features

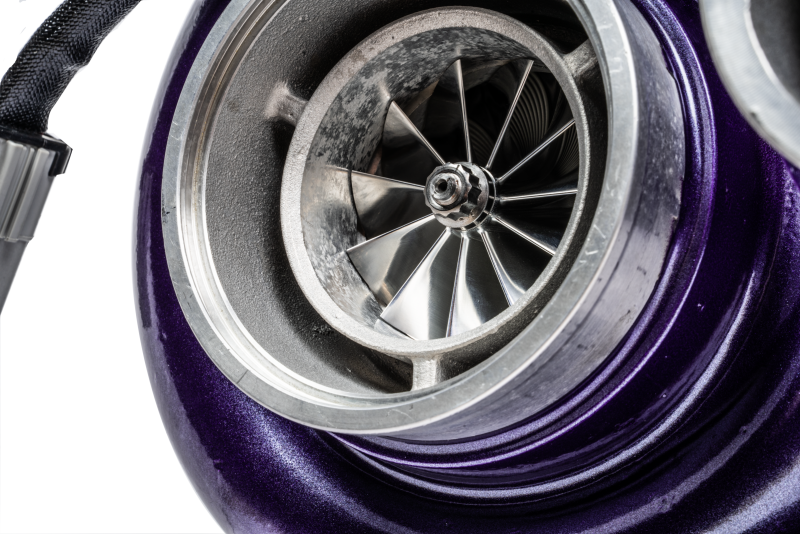

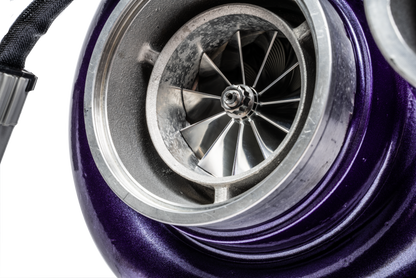

• Exclusive Aurora 64mm 11-blade full-length, extended-tip billet compressor wheel is 25 grams lighter than the factory wheel while delivering greater aerodynamic efficiency and structural strength - a Stage 2-exclusive upgrade over the Stage 1's 60mm 7x7 wheel.
• Upgraded high-flow turbine sections provide greater exhaust gas throughput at higher power levels, allowing the Stage 2 to sustain up to 550 rwhp continuously without soot-loading the DPF.
• Billet 316 stainless steel unison rings replace the factory vane actuation rings - the primary OEM failure point prone to warping and sticking - delivering maintenance-free, full-range vane actuation across all driving styles and power levels.
• All-new actuator with updated solid-state electronics eliminates the factory actuator's need for periodic cleaning intervals - 100% maintenance free from day one.
• HSM bearing housing and turbine housing deliver superior thermal and mechanical durability over the factory casting under the sustained high-EGT conditions of performance builds.
• High-temperature ceramic coated turbine housing reduces radiant heat transfer and improves durability under sustained high-load operation.
• Powder-coated compressor housing provides corrosion resistance and a finished appearance.
• Retains all factory functions: exhaust braking, cold warm-up function, factory-like spool - no change to daily driving behavior.
• Full emissions legal for all 50 states. No deletes required.

Specifications

• Brand: ATS Diesel Performance
• Part Number: 202-402-2392
• Product: Aurora 4000 VFR Stage 2 Turbocharger Assembly (Variable Factory Replacement)
• Engine: 6.7L Cummins ISB (2013-2018)
• Compressor Wheel: 64mm 11-Blade Full-Length Extended-Tip Billet (25g lighter than stock)
• Turbine Sections: Upgraded High-Flow
• Unison Rings: Billet 316 Stainless Steel
• Turbine Housing: HSM, Ceramic Coated
• Bearing Housing: HSM
• Compressor Housing: Powder-Coated
• Actuator: New (Solid-State Electronics)
• Power Gain (Stock Tune): +47 rwhp / +93 lb-ft
• Power Gain (ATS DynoLAB Tune): +150 rwhp
• Max Sustainable Power: 550 rwhp (without DPF soot loading)
• Max Short-Term Racing Power: 600 rwhp (with ATS DynoLAB tuning)
• Emissions: Full 50-State Legal
• Warranty: 2 Year / 150,000 Miles
• Maintenance: 100% Maintenance Free
• Core Charge: $300 (Refundable)
• Shipping Weight: 53 lbs.
• Shipping Dimensions: 26 in. L x 18 in. W x 14 in. H
• Sold As: Each (complete assembly)

Included Components

• 1x ATS Aurora 4000 VFR Stage 2 turbocharger assembly with actuator (202-402-2392)
• 1x Harness adapter
• Hardware/install kit (as specified in ATS installation guide)

Product Description

The ATS Diesel 202-402-2392 Aurora 4000 VFR (Variable Factory Replacement) Stage 2 Turbocharger is a direct drop-in upgrade for the 2013-2018 Dodge Ram 2500/3500/4500 6.7L Cummins, stepping up from the Stage 1 Aurora 3000 with a larger 64mm 11-blade full-length, extended-tip billet compressor wheel and upgraded high-flow turbine sections. On stock tuning, the Stage 2 delivers +47 rwhp and +93 lb-ft immediately; paired with ATS DynoLAB tuning (sold separately), gains reach +150 rwhp with the turbo sustaining 550 rwhp continuously without soot-loading the DPF - or up to 600 rwhp in short-term racing applications.

Like the Stage 1, the Stage 2 retains all factory functions - exhaust braking, warm-up functionality, quick spool - with no programming, deletes, or actuator cleaning required. Billet 316 stainless steel unison rings address the factory turbo's most common failure mode, and updated solid-state electronics deliver long-term reliability with zero maintenance intervals. Full emissions legal for all 50 states. A $300 core charge applies and is fully refundable upon return of the factory turbocharger core.
