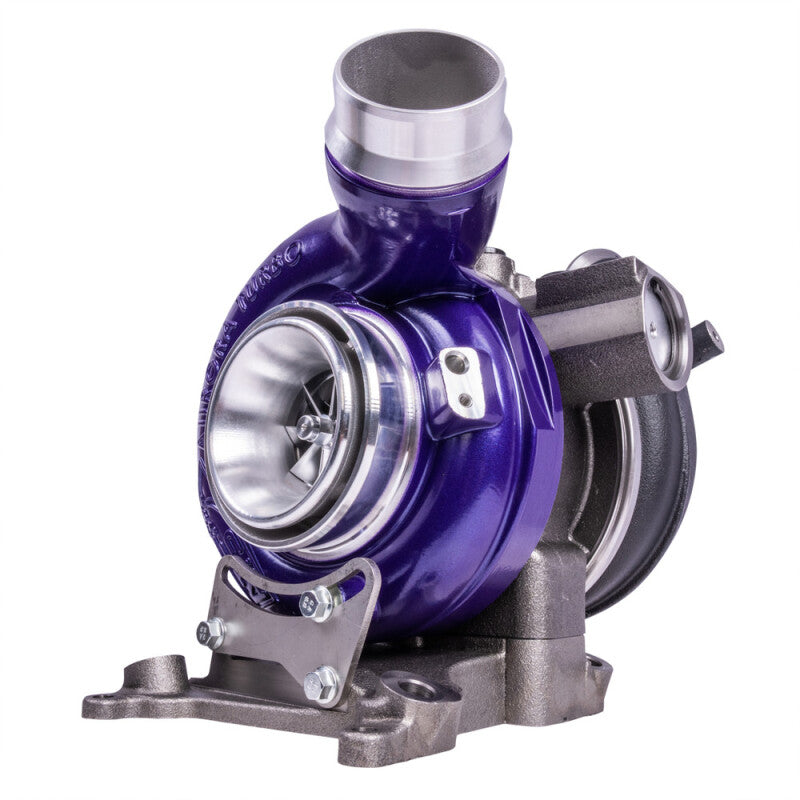

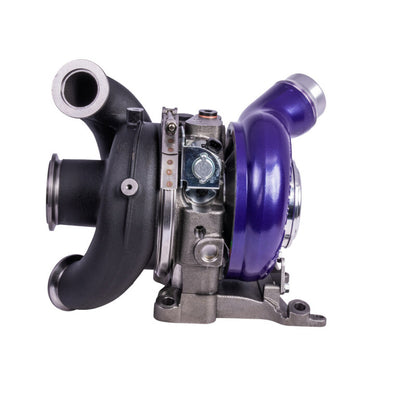

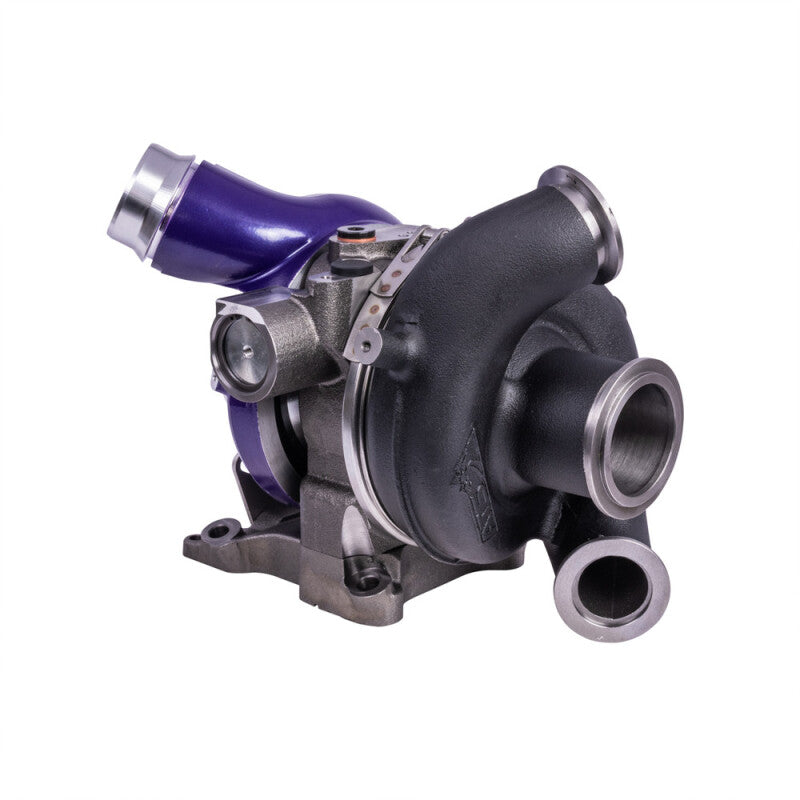

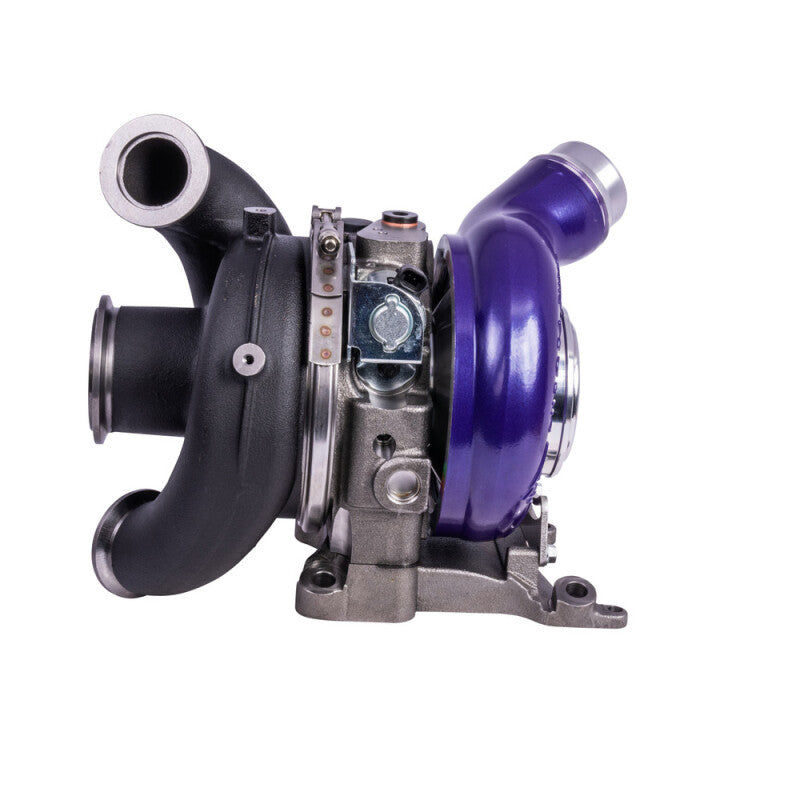

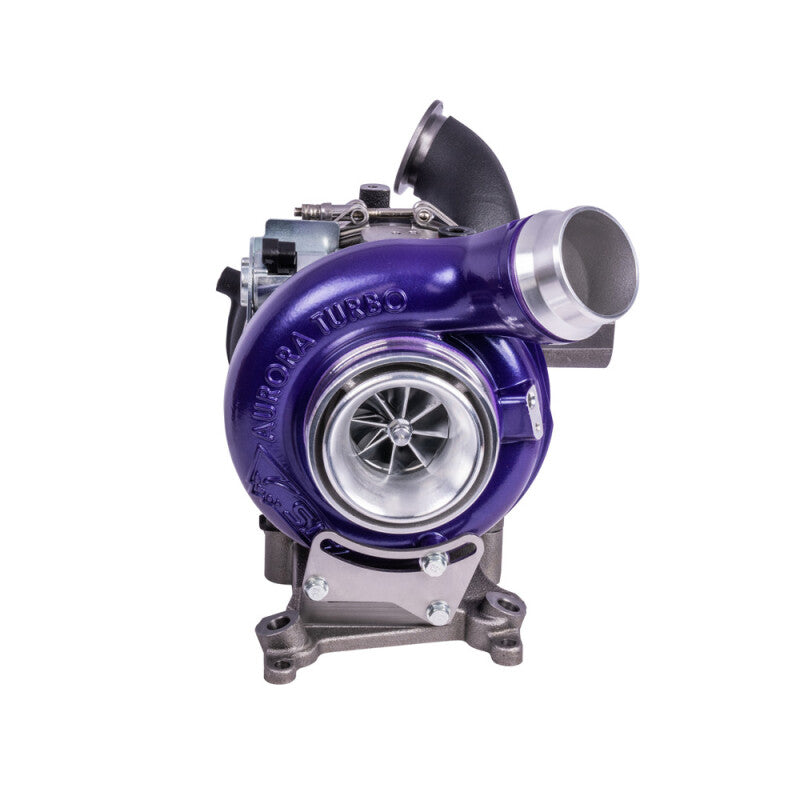

ATS 202-407-3368 Aurora 4000 VNT Turbo for 11-16 Ford F-350 C&C 6.7L Powerstroke

Vehicle Fitment

• 2011-2016 Ford F-350 Super Duty Cab & Chassis (6.7L Power Stroke V8)

Fitment Notes

• Cab & Chassis-specific application only - this is not the same part as ATS's pickup-body version (SKU 202-406-3368), which is a separate kit limited to 2011-2014 F-250/F-350 pickups
• Designed as a performance drop-in replacement when modified tuning is already in place; tuning is recommended to fully realize the turbo's performance potential
• Compatible with ATS's Intelliboost Module for added exhaust brake function (sold separately)

Features

• Ground-up redesign engineered specifically for Ford 6.7L Power Stroke Cab & Chassis trucks
• Custom double journal bearings support higher horsepower levels with significantly better reliability than the factory ball bearings

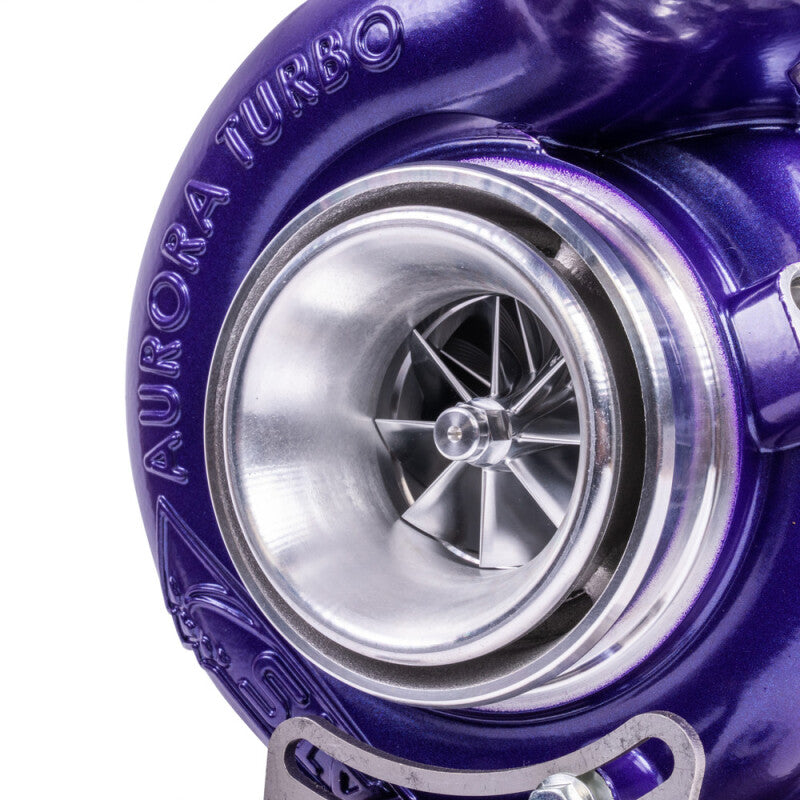

• Custom billet 8x8 compressor wheel for improved airflow and spool characteristics
• Oversized mixed-flow turbine wheel
• High silicon molybdenum (HSM) turbine housing for strength and heat resistance
• Stainless steel VNT (Variable Nozzle Turbine) turbine pack
• Velocity Stack Compressor Section for optimized flow into the compressor
• Fully hydraulic actuator for precise, responsive boost control
• Built entirely from 100% new components - no rebuilt cores, no core charge
• Direct-fit installation with no additional hardware or custom piping required

Specifications

• Turbo type: VNT (Variable Nozzle Turbine), Stage 2
• Turbine housing material: High silicon molybdenum (HSM)
• Turbine pack: Stainless steel
• Bearing type: Custom double journal bearings
• Compressor wheel: Custom billet 8x8
• Turbine wheel: Oversized mixed-flow
• Actuator: Fully hydraulic
• Power support: Well over 500 hp
• Core charge: None required (all-new build)

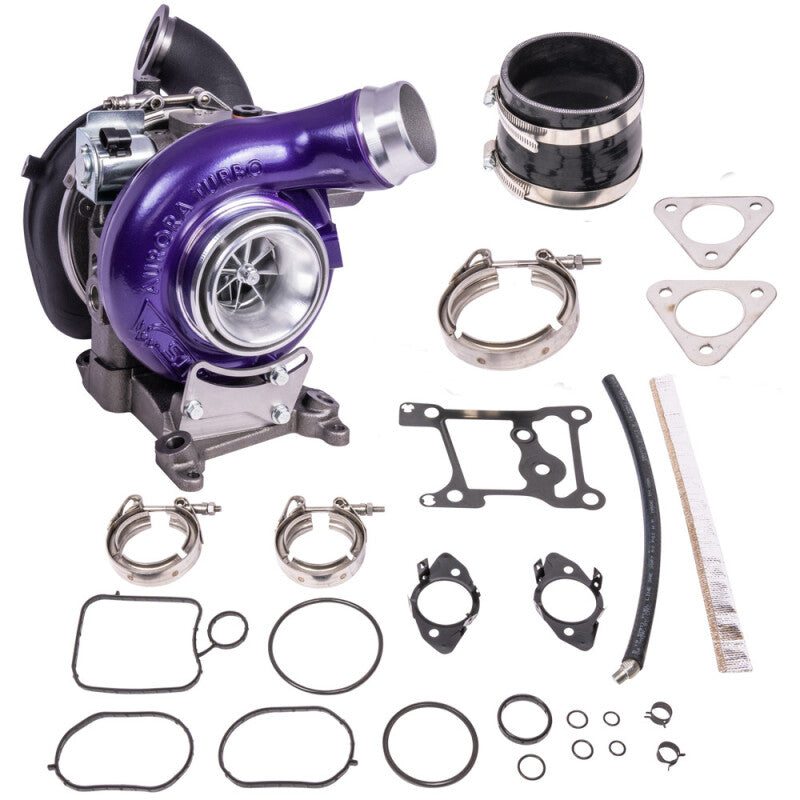

Included Components

• 1x ATS Aurora 4000 VNT Stage 2 Turbocharger Assembly
• 1x Velocity Stack Compressor Section
• 1x Required gasket and hardware set

Product Description

The ATS Aurora 4000 VNT Stage 2 Turbocharger was engineered from the ground up specifically for the 6.7L Power Stroke Cab & Chassis platform, addressing the factory twin-scroll turbo's well-known ball bearing failure points. Rather than reworking the OE unit, ATS built an entirely new VNT (Variable Nozzle Turbine) design around a billet 8x8 compressor wheel, an oversized mixed-flow turbine wheel, and a stainless steel VNT turbine pack, all housed in a high silicon molybdenum turbine housing built to handle sustained heat and boost.

At the core of the upgrade are custom double journal bearings, which trade the factory ball-bearing setup for a design built to support significantly higher horsepower with better long-term reliability - an important consideration for Cab & Chassis trucks that see heavy-duty, work-focused use. A fully hydraulic actuator adds precise, consistent boost control, and the Velocity Stack Compressor Section is tuned to help the engine breathe more efficiently across the RPM range.

Built entirely from new components with no core charge, this turbo is aimed at Cab & Chassis owners who want a genuine performance upgrade rather than a rebuilt factory unit - capable of supporting well over 500 hp when paired with proper tuning. It installs as a direct replacement without additional hardware or custom piping, though tuning is recommended to unlock its full performance potential, and it can be paired with ATS's Intelliboost Module for added exhaust braking.
