ATS Diesel 202-406-3368 Aurora 4000 VNT Stage 2 Turbo 2011-2014 Ford 6.7L

Vehicle Fitment

• 2011-2014 Ford F-250 Super Duty (6.7L Power Stroke V8, all trims - Pickup body style only)
• 2011-2014 Ford F-350 Super Duty (6.7L Power Stroke V8, all trims - Pickup body style only)

Fitment Notes

• Fits 2011-2014 Ford F-250/F-350 Pickup body style only. Does NOT fit 2011-2016 Cab & Chassis applications - for Cab & Chassis, see ATS p/n 202-407-3368.
• Does NOT fit 2015-2019 Ford 6.7L Power Stroke (different turbo architecture - see ATS p/n for 2015-2019 applications).
• Designed as a direct drop-in replacement for the factory Garrett twin-scroll turbocharger. No additional hardware, custom piping, or exhaust modification required.
• Modified or aftermarket tuning is required to fully utilize this turbo's performance capability. Not optimized for stock ECU tune alone.
• 100% all-new components - NO core charge required.
• Sold as: Each (complete turbocharger kit with gaskets and hardware).

Features

• Ground-up redesign built specifically for the 2011-2014 Ford 6.7L Power Stroke - not a remanufactured or recored factory unit - addressing the factory twin-scroll turbo's primary failure point: ball bearing failure under high heat and load cycles.
• Custom double journal bearings replace the factory ball bearings, providing significantly greater durability and higher horsepower support under sustained high-boost conditions.

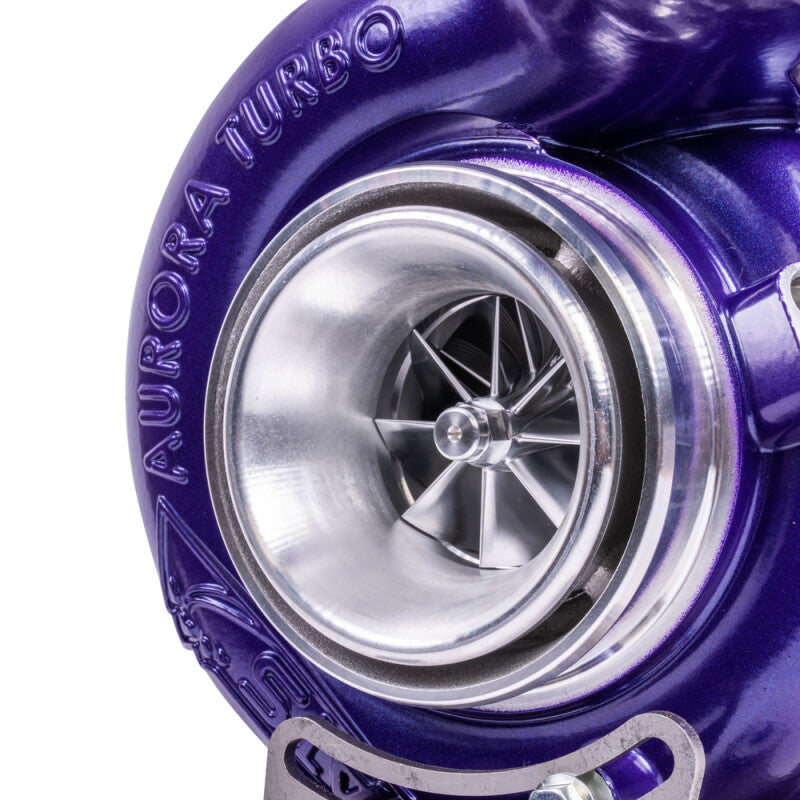

• Billet 8x8 compressor wheel moves air more efficiently than the factory compressor, improving spool-up time, throttle response, and sustained boost under load.
• Oversized mixed-flow turbine wheel increases exhaust gas throughput for improved power delivery and reduced exhaust backpressure at high power levels.
• ATS Velocity Stack compressor section improves airflow efficiency at the compressor inlet for faster spool and stronger mid-range boost.
• HSM (High-Silicon Molybdenum) turbine housing provides superior heat resistance and durability over cast iron under sustained high-EGT conditions.
• Stainless steel VNT (Variable Nozzle Turbine) turbine pack resists the thermal distortion and corrosion that affects factory vane packs over time.
• Fully hydraulic actuator provides precise, reliable vane control without the electronics failure modes associated with the factory electric actuator system.
• 100% rebuildable modular design - components can be serviced or replaced individually, making this a long-term investment rather than a disposable unit.
• CARB-compliant - CARB E.O. Number on file for California and all 50 states.

Specifications

• Brand: ATS Diesel Performance
• Part Number: 202-406-3368
• Product: Aurora 4000 VNT Stage 2 Turbocharger Kit
• Engine: 6.7L Ford Power Stroke V8 (2011-2014)
• Compressor Wheel: Billet 8x8
• Turbine Wheel: Oversized Mixed-Flow
• Bearing Type: Custom Double Journal
• Turbine Housing: HSM (High-Silicon Molybdenum)
• Turbine Pack: Stainless Steel VNT
• Compressor Section: ATS Velocity Stack
• Actuator: Fully Hydraulic
• Power Support: 500+ hp
• Tuning Required: Yes (modified/aftermarket tune to maximize performance)
• Core Charge: None - 100% all-new components
• Rebuildable: Yes (100% modular)
• Emissions: CARB-compliant, 50-state legal
• Warranty: 1 Year
• Installation Time: Approx. 4 hours
• Sold As: Each (complete kit)

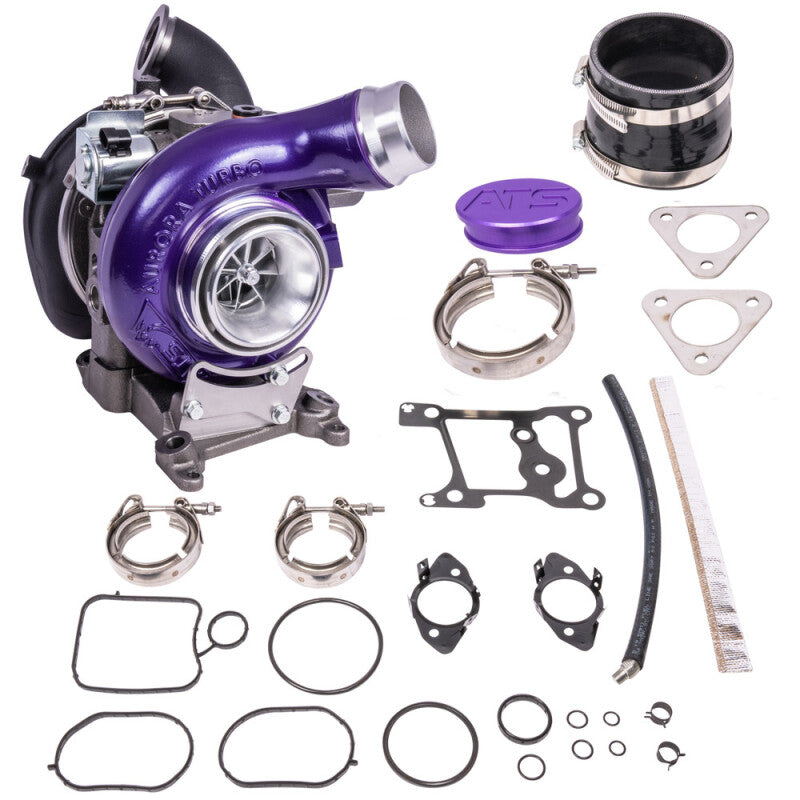

Included Components

• 1x ATS Aurora 4000 VNT Stage 2 turbocharger assembly (202-406-3368)
• 1x Gasket kit
• Hardware kit

Product Description

The ATS Diesel 202-406-3368 Aurora 4000 VNT Stage 2 Turbocharger Kit is a ground-up redesigned, all-new turbocharger built specifically for the 2011-2014 Ford F-250/F-350 6.7L Power Stroke pickup. Unlike a remanufactured or recored factory unit, this turbo was engineered from scratch to address the factory Garrett twin-scroll turbo's notorious ball bearing failure mode - replacing them with custom double journal bearings that deliver far greater durability and higher horsepower capacity under sustained high-load operation. No core charge is required.

The Stage 2 Aurora 4000 pairs a billet 8x8 compressor wheel and oversized mixed-flow turbine wheel with ATS's Velocity Stack compressor section to produce faster spool, stronger mid-range boost, and sustained high-end power - supporting well over 500 hp when paired with modified or aftermarket tuning (required for full performance). An HSM turbine housing, stainless steel VNT turbine pack, and fully hydraulic actuator complete the build. The unit is 100% rebuildable with modular components, CARB-compliant for all 50 states, and carries a 1-year warranty. For the Cab & Chassis fitment, see ATS p/n 202-407-3368.
