Artec Industries BR1139 Raised Trackbar Bracket for 3.5" Front Axle

Vehicle Fitment

• Universal mount for 3.5" diameter front axles (e.g. Dana 60 swap)

Features

• 1/4" thick steel construction for strength and durability
• CNC laser-cut and bent for precision fitment
• Three adjustable mounting holes to fine-tune trackbar geometry
• Raises roll center - improves handling and vehicle stability
• Improves ground clearance by lifting trackbar mount
• Designed to work with Artec Low Profile front axle trusses
• Tube diameter of 3.5" can be modified to fit larger tubes
• Compact 1.65" joint width - ideal for narrow heims or cartridge joints

Specifications

• Material: Mild steel, 0.25" thick
• Axle Tube Outer Diameter: 3.5" (modifiable)
• Joint Width: 1.65" recommended for compatible end links
• Adjustment: 3 raised trackbar holes for different roll-center setups
• Finish: Raw steel (requires welding and post-weld coating)

Included Components

• 1x Raised trackbar bracket
• Installation template/spec sheet

Product Description

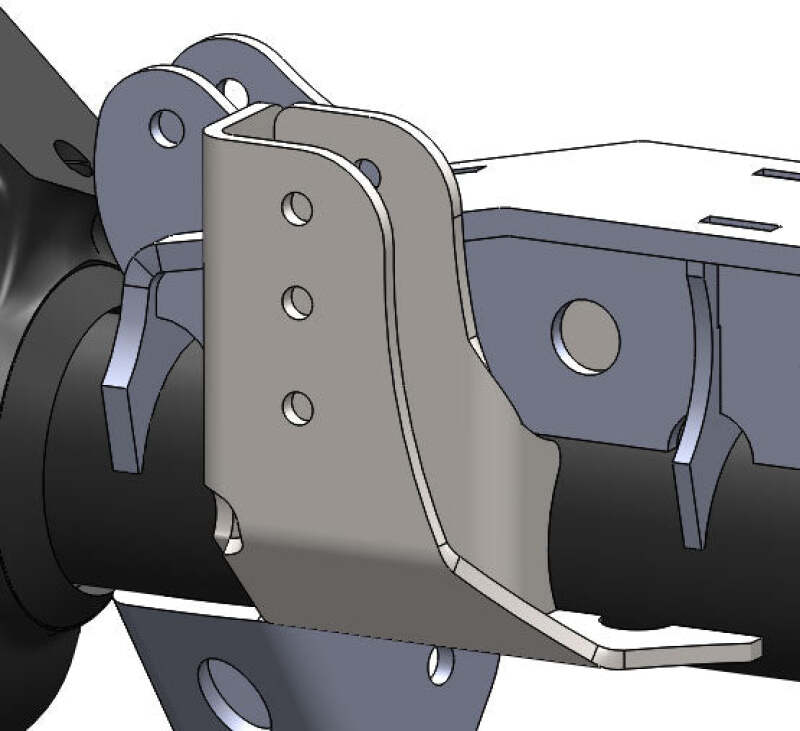

The Artec BR1139 Raised Trackbar Bracket is designed to relocate your trackbar mount point upward, improving roll-center geometry and ground clearance on 3.5" front axles like Dana swaps. Made from sturdy 1/4" steel and precisely CNC cut, this bracket offers three different mounting positions so you can dial in the optimal setup for your build.

This part is not bolt-on - welding is required to install it securely. After welding, it's recommended to coat or paint the bracket to prevent corrosion. This bracket is especially useful for off-road rigs, lifted Jeeps, or custom chassis where improving handling and reducing stress on the trackbar is critical.
