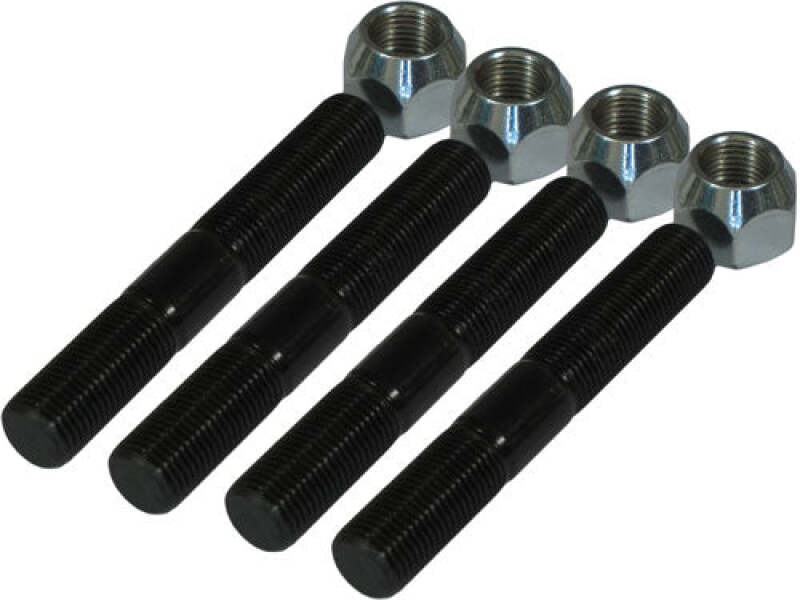

Artec RR-D60116K-2 Dana 60 ARP High Steer Stud & Nut Kit 4-Pack 220K PSI

Vehicle Fitment

• 1966-2023 Jeep CJ5, CJ7, Wrangler YJ, TJ, JK, and JL - any high steer application using a Dana 60 kingpin front axle with 1"- to 1.5"-thick high steer arms
• Compatible with OEM Jeep Dana 60 knuckles and aftermarket high steer arms designed for the Dana 60 kingpin axle, including Artec Ultimate 60 high steer arms and other brands

Fitment Notes

• Fits high steer arms 1.0" to 1.5" thick - verify your arm thickness before ordering; stock knuckle bolts are typically too short for high steer arm applications and must be replaced
• Fine thread (1/2"-20 UNF) on both ends - replaces OEM-style bolts/studs with a stud-and-nut configuration for secure high steer arm retention
• For chromoly studs with higher tensile strength requirements, see RR-D60117K-2
• Single-pack also available as RR-D60112-2; 5-pack also available for builds requiring additional hardware
• 4 studs and 4 nuts per kit - sufficient for one complete high steer arm pair (2 studs per arm x 2 arms)
• Made in the USA

Features

• ARP (Automotive Racing Products) hardware - manufactured to motorsport-grade fastener standards for critical steering applications
• 220,000 PSI tensile strength - significantly exceeds the strength of standard hardware store fasteners, providing a high safety margin in demanding off-road and high-steer steering configurations
• Fine thread (1/2"-20 UNF) on both ends for maximum thread engagement and clamping force in both the knuckle and the arm
• Tapered nuts included - designed to properly seat against the tapered counterbore in high steer arm mounting holes for a secure, centered installation
• Black oxide finish provides corrosion resistance while maintaining thread accuracy
• Purpose-engineered length to fit arms from 1.0" to 1.5" thick - eliminates the guesswork of sourcing correct-length fasteners through general hardware suppliers
• Sold as a convenient 4-pack - the correct quantity for a standard two-arm high steer setup using 2 studs per arm

Specifications

• Application: Dana 60 kingpin front axle high steer arm installations
• Thread Size: 1/2"-20 UNF (fine thread, both ends)
• Tensile Strength: 220,000 PSI
• Compatible Arm Thickness: 1.0" to 1.5"
• Material: Steel
• Finish: Black oxide
• Includes: 4 studs and 4 tapered nuts
• Quantity: Sold as a 4-pack kit
• Country of Origin: Made in the USA

Included Components

• 4x ARP high steer studs (1/2"-20 UNF, black oxide)
• 4x Tapered nuts

Product Description

The Artec Industries RR-D60116K-2 is a 4-pack kit of ARP high steer studs and tapered nuts for Dana 60 kingpin front axle high steer applications on 1966-2023 Jeep CJ and Wrangler models. OEM knuckle bolts are not long enough to properly engage high steer arms, making purpose-built replacement studs a required component of any high steer conversion. These ARP steel studs feature 1/2"-20 UNF fine thread on both ends, a 220,000 PSI tensile strength rating, and are sized to fit arms between 1.0" and 1.5" thick - covering the full range of Artec's own high steer arm lineup as well as most aftermarket alternatives.

The included tapered nuts seat correctly against the tapered counterbores found in high steer arm mounting holes, ensuring a secure, centered installation without the risk of loosening under trail loads. The black oxide finish provides corrosion resistance without compromising thread dimensions. Each 4-pack provides the exact stud count needed for a standard two-arm high steer setup (2 studs per arm). For applications requiring chromoly studs, see RR-D60117K-2. Single-pack and 5-pack options are also available. Made in the USA.
