Artec JL6541 1-Ton Apex Front Swap Kit for 2018-2025 Jeep Wrangler JL

Vehicle Fitment

• 2018-2025 Jeep Wrangler JL/JLU Sport, Sport S, Sahara, Rubicon, Willys and applicable special editions; 2.0L Turbo I4, 3.0L EcoDiesel V6, 3.6L V6, 6.4L V8 and 2.0L Turbo 4xe powertrains where equipped
• 2018-2025 Jeep Wrangler JL/JLU; 4WD drivetrain; 2-door and 4-door configurations where applicable

Fitment Notes

• Designed for Jeep Wrangler JL/JLU front axle conversion using a 1999-2004 Ford Super Duty front axle
• Front axle swap application; replacement Super Duty axle assembly is not included
• Kit is intended for custom axle-swap fabrication and requires welding and installation by a qualified fabricator
• ABS sensor components are not included; sensor integration and configuration are the responsibility of the installer
• Verify the donor axle, steering, suspension and drivetrain configuration before installation

Features

• 1-ton front Super Duty axle swap configuration
• Patented APEX truss design for enhanced axle rigidity and protection
• CNC laser-cut 1/4-inch and 3/16-inch mild steel construction
• Peaked truss design increases rigidity while reducing unnecessary weight
• Designed using Dana and OEM vehicle 3D models for fit and clearance
• Approximately 70% less welding than previous Artec truss designs
• Dimpled holes reduce weight while increasing structural rigidity
• High-clearance differential bridge accommodates upper control-arm mounting
• Compatible with factory-style bushing upper control-arm mounting locations
• End-to-end truss structure extends beneath coil buckets toward the inner C
• Integrated coil bracket and bump-stop pad extensions
• Optimized shock-bracket positioning compared with OEM locations

Specifications

• Brand: Artec Industries
• Part Number: JL6541
• Product Type: 1-Ton Front Super Duty Axle Swap Kit
• Product Series: APEX
• Application Position: Front
• Axle Application: 1999-2004 Ford Super Duty front axle
• Truss Material: Mild steel
• Truss Thickness: 3/16 inch
• Additional Fabrication Material Thickness: 1/4 inch
• Upper Control Arm Mount Style: Daystar bushing configuration
• Vehicle Platform: Jeep Wrangler JL/JLU
• Installation Type: Weld-on fabrication
• UPC: 810039900673
• Approximate Product Weight: 38 lb

Included Components

• 1x APEX front Super Duty axle swap truss and bracket system
• 1x Daystar bushing upper-control-arm mounting configuration

Product Description

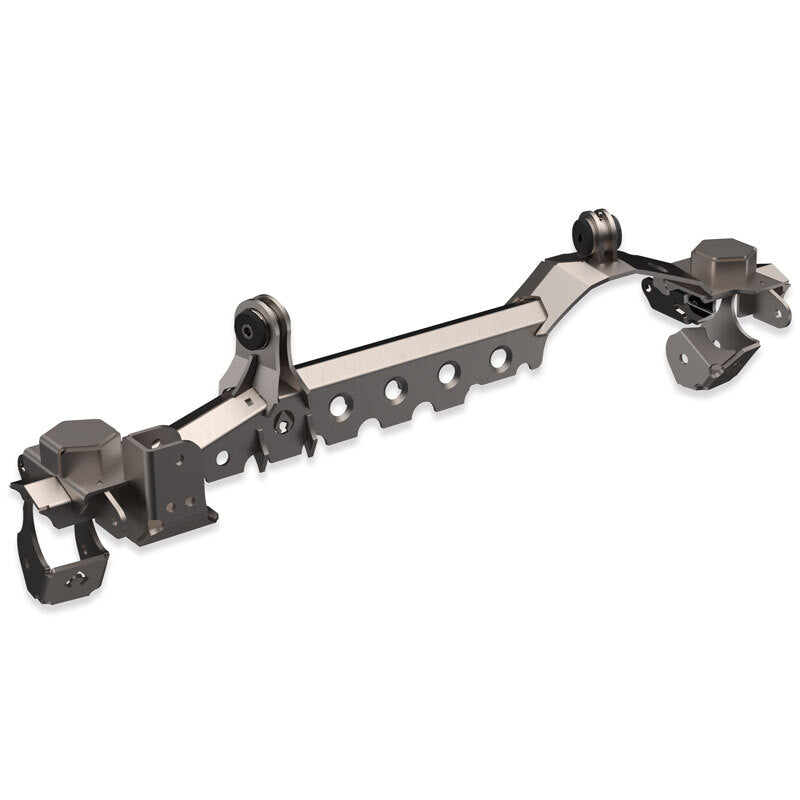

The Artec Industries JL6541 1-Ton APEX Front Super Duty Swap Kit is engineered for Jeep Wrangler JL/JLU builds that require a heavy-duty front axle conversion using a 1999-2004 Ford Super Duty front axle. The kit combines a reinforced APEX axle truss with suspension and axle-mounting brackets to provide a strong foundation for a custom 1-ton front axle installation. Its high-clearance design helps preserve suspension geometry while providing improved structural support around the axle housing.

Constructed from CNC laser-cut 1/4-inch and 3/16-inch mild steel, the JL6541 uses Artec's peaked APEX truss design for strength, rigidity and reduced weight. The system incorporates mounting provisions for control arms, coil brackets, bump stops and shocks while extending the truss structure toward the inner C for increased axle reinforcement. Daystar bushings are supplied for the upper-control-arm mounting configuration.

This kit is intended for experienced off-road builders and professional fabricators performing a 1-ton front axle conversion on a Jeep Wrangler JL/JLU. Welding and fabrication are required, and the donor Super Duty axle, ABS sensor components and other vehicle-specific conversion hardware are not included. Confirm donor axle specifications and all suspension, steering, brake and drivetrain requirements before installation.
