Artec Industries BB1420 14 Bolt Drum to Disc Brake ABS Kit 52T Jeep JK 2007-2017

Vehicle Fitment

• 2007-2017 Jeep Wrangler JK (All Trims) - For use when performing a GM 14-Bolt Full-Float rear axle swap into the JK platform

Fitment Notes

• Axle Compatibility - Read Carefully: This kit is designed exclusively for the newer-style GM 14-bolt full-float rear axle with ribbing on the differential casting, equipped with factory drum brakes from the factory, and with a WMS-to-WMS (wheel mounting surface to wheel mounting surface) measurement of 68 inches or greater. Not all 14-bolt axles are compatible - only the newer ribbed casting variant is supported.
• This kit is NOT intended for factory disc brake-equipped 14-bolt axles. If your 14-bolt already has factory disc brakes, see the Artec Industries JK 1 Ton 14 Bolt Factory Disc ABS Kit instead.
• This kit is NOT intended for older-style 14-bolt axles with a smooth (non-ribbed) differential casting. Use the diagram on the Artec Industries product page to confirm your axle casting style before ordering.
• BB1420 includes 52-tooth tone rings. If 60-tooth tone rings are required for your ABS sensor and tuner setup, order BB1421 instead. Note: if using the 60-tooth option, the speedometer may read approximately 1-3% off without tuner correction.
• This kit is designed to complement the Artec Industries JK 1 Ton 14-Bolt Axle Swap Kit - the swap kit is not included and must be purchased separately.
• Wiring note: The kit provides 2 ABS sensor mounting positions per side (4 total). One sensor per side connects to the factory JK rear ABS plugs. The other 2 sensor positions require splicing into the front ABS sensor plugs. If using a 2005-2013 Superduty front Dana 60 axle on the front, only 2 rear sensors can be installed; the front axle will use Dodge ABS sensors with 60-tooth tone rings (Chrysler P/N 5179958AB, Dorman P/N 970-052, or Airtec P/N 5S8491).
• Use of this kit may require an optional tuner capable of adjusting gear ratio and tire size parameters to maintain accurate speedometer and ABS function after the axle swap.
• The 1/4" press-on tone rings require machining of the 14-bolt hub flange to achieve correct fit - this step cannot be skipped. Machining should be performed by a qualified machine shop prior to installation.
• This kit requires general welding, machining, and fabrication skills. Installation should only be performed by a qualified welder and fabricator. Artec Industries is not responsible for incorrect installation or improper use.

Features

• 3/8 inch thick mild steel brake brackets - heavy-duty construction designed to handle the load demands of large tires and aggressive off-road braking with aftermarket front calipers and rotors.
• Precision CNC laser-cut and CNC-threaded brake brackets ensure consistent geometry and thread quality for reliable ABS sensor positioning and brake caliper mounting.
• CNC-threaded ABS sensor mounting blocks integrated into the brake brackets - provide precise, repeatable spacing between the ABS sensor face and the 52-tooth tone ring for accurate wheel speed signal generation and ABS function.
• 1/4 inch thick CNC laser-cut 52-tooth press-on tone rings - zinc plated for corrosion resistance and improved sensor-to-ring signal feedback. The 52-tooth count is designed to work with JK factory ABS sensor inputs without tuner correction in most configurations.
• 16-gauge CNC laser-cut and CNC-bent tone ring mud guards - protect the tone ring and ABS sensor from trail mud, rocks, and debris that could interfere with sensor readings. Guards are spaced with intentional gaps to allow debris that enters to drain out, preventing packing.
• Hat-style rotor design (rotors not included) rather than press-on hub rotors - hat-style rotors slip over the hub and are retained by the wheel studs, making rotor replacement a simple bolt-on operation without requiring hub removal or a press.
• Zinc plating on tone rings and sensor plates provides corrosion resistance against trail moisture, mud, and salt exposure while also improving the magnetic sensor-to-tone-ring interface for cleaner ABS signal output.
• Grade 8 hardware included for all bracket mounting points - ensuring fastener strength at the caliper and sensor bracket mounting positions matches the structural demands of the heavy-duty axle conversion.
• Designed and manufactured in the USA by Artec Industries, founded in 2003 in Tucson, Arizona.

Specifications

• Part Number: BB1420
• Application: 2007-2017 Jeep Wrangler JK - GM 14-Bolt Full-Float Rear Axle Swap (Drum to Disc Brake Conversion with ABS)
• Tone Ring Tooth Count: 52 teeth
• Compatible Axle: Newer-style GM 14-bolt with ribbed casting, factory drum brakes, WMS-WMS ≥ 68 inches
• Brake Bracket Material: 3/8 in. Mild Steel (CNC cut and threaded)
• Tone Ring Material: 1/4 in. Steel, Zinc Plated (press-on, requires hub machining)
• Mud Guard Material: 16-gauge Steel (CNC cut and bent)
• Hardware: Grade 8 mounting hardware included
• Rotor Style: Hat-style (rotors not included)
• ABS Sensor Positions: 2 per side (4 total)
• Tone Ring Finish: Zinc Plated
• Fabrication Required: Yes (hub machining for tone ring press-fit; potential wiring run)

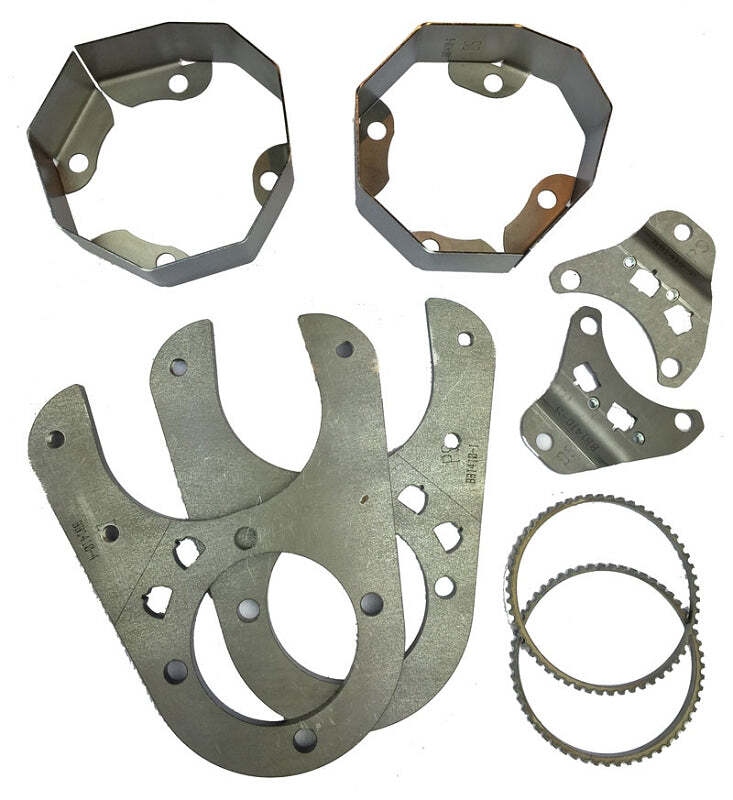

Included Components

• 2x Heavy-duty mild steel brake brackets with CNC-threaded ABS sensor mounting blocks (one per side)
• 2x 52-tooth zinc-plated press-on tone rings (one per side - BB1401)
• 2x 16-gauge CNC-formed tone ring mud guards (one per side)
• ABS sensor spacers
• Grade 8 mounting hardware (complete)

Not Included - Required for Installation

• GM front calipers and pads - from 1973-1987 GM 3/4-ton 4x4 trucks (available at NAPA or AutoZone)
• GM rear hat-style rotors - from 2003 GMC Sierra 2500 2WD (available at NAPA or AutoZone)
• Up to 2 additional rear JK ABS sensors - available at Jeep dealership
• Artec Industries JK 1 Ton 14-Bolt Axle Swap Kit (sold separately)
• Optional aftermarket tuner for gear ratio/tire size calibration

Product Description

The Artec Industries BB1420 is a rear drum-to-disc brake and ABS conversion kit designed for 2007-2017 Jeep Wrangler JK builds performing a GM 14-bolt full-float axle swap. When a JK is swapped to a GM 14-bolt rear axle - a widely used upgrade for builders seeking a stronger, wider 1-ton-rated rear axle - the factory drum brakes, different bolt pattern, and absence of factory ABS provisions on the donor axle create a significant engineering challenge: how to restore disc braking performance and maintain the JK's factory ABS function without triggering codes or causing limp-mode behavior. The BB1420 addresses all of these issues in a single kit.

The kit's 3/8 inch steel brake brackets are CNC-cut and threaded to provide precise caliper and ABS sensor geometry, using widely available GM front calipers from 1973-1987 3/4-ton trucks and hat-style rotors from the 2003 GMC Sierra 2500 2WD - both readily sourced at NAPA or AutoZone. The 52-tooth tone rings are zinc plated for corrosion resistance and press onto the 14-bolt hub flange after a machining step that is required for correct fitment. ABS sensor mounting positions are built directly into the brake brackets with precise standoff spacing, and 16-gauge CNC-bent mud guards protect the tone ring and sensor gap from trail debris. All tone rings and sensor plates are zinc plated for improved sensor magnetic feedback and long-term corrosion resistance.

The BB1420 (52-tooth) is the correct choice for most JK 14-bolt swap applications not using a 2005-2013 Superduty front Dana 60. The 52-tooth count is generally compatible with JK ABS calibration without tuner correction in most setups. The companion BB1421 uses 60-tooth tone rings and may be preferred for specific sensor and tuner configurations, but may require a 1-3% speedometer correction. This kit is specifically engineered for the newer-style ribbed-casting 14-bolt axle with factory drum brakes and a WMS-WMS measurement of 68 inches or greater - it is not compatible with factory disc brake 14-bolt axles or with older smooth-casting variants. The Artec Industries JK 1 Ton 14-Bolt Axle Swap Kit is sold separately and is designed to be used alongside this brake and ABS kit. Confirmed by Northridge4x4, High Lift Off-Road, Summit 4x4, and the Artec Industries official website.
