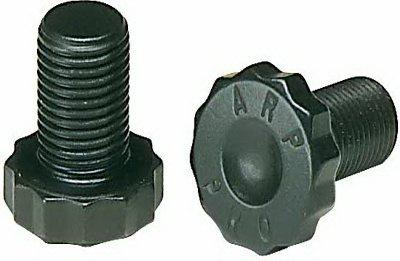

ARP 203-2801 Pro Series Flywheel Bolt Kit M12x1.25 Toyota 3SGTE MR2/Celica Turbo

Vehicle Fitment

• 1986-1989 Toyota Celica All-Trac / GT-Four ST165 (3S-GTE 2.0L Turbo I4, AWD)
• 1989-1993 Toyota Celica All-Trac / GT-Four ST185 (3S-GTE 2.0L Turbo I4, AWD)
• 1994-1999 Toyota Celica GT-Four ST205 (3S-GTE 2.0L Turbo I4, AWD)
• 1991-1999 Toyota MR2 Turbo SW20 (3S-GTE 2.0L Turbo I4, RWD)
• 1997-2002 Toyota Caldina ST215 (3S-GTE 2.0L Turbo I4, AWD - Import)
• 2002-2007 Toyota Caldina ST246 (3S-GTE 2.0L Turbo I4, AWD - Import)
• Toyota Celica ST202 / MR2 SW20 with BEAMS 3S-GE engine (shares 3S-GTE flywheel thread spec - M12 x 1.25)
• Toyota Camry / Celica / MR2 with 5S-FE engine (shares flywheel thread spec - M12 x 1.25)
• 1992-2007 Toyota Land Cruiser 70/80/100/105 Series with 1FZ-FE 4.5L I6 - NOTE: requires 2 kits (12 bolts total)

Fitment Notes

• Primary application is the Toyota 3S-GTE 2.0L turbocharged engine - all ST165, ST185, ST205, SW20, ST215, and ST246 platforms
• 1FZ-FE Land Cruiser requires 12 flywheel bolts - this kit contains 8; order 2 kits for 1FZ-FE applications
• Do NOT use washers - these bolts are engineered for direct installation without washers; using washers will void ARP's warranty and may cause failure
• Flywheel bolt holes must have adequate chamfer to clear the underhead radius of each bolt
• Use ARP Ultra-Torque assembly lubricant on threads and under bolt heads - do not use engine oil

Features

• Forged from aerospace-grade 8740 chromoly alloy and heat-treated prior to thread rolling and machining for maximum material integrity
• Rated at 200,000 psi tensile strength - substantially stronger than OEM Toyota flywheel hardware
• Flat 12-point head design allows easy socket access and more accurate torque application than standard hex-head bolts
• Larger-than-stock shank diameter improves flywheel register and reduces rotational movement under aggressive clutch loads
• Threads rolled after heat treatment for superior fatigue resistance under repeated high-RPM engagement
• Reusable fasteners - do not stretch or deform under rated load unlike OEM hardware

Specifications

• Part Number: 203-2801
• Material: 8740 Aerospace Chromoly Alloy
• Tensile Strength: 200,000 psi
• Thread Size: M12 x 1.25
• Underhead Length (UHL): 1.000 in.
• Head Style: 12-Point (Flat)
• Socket Size: 3/4 in. 12-Point
• Finish: Black Oxide
• Washers Included: Yes
• Quantity: Set of 8

Included Components

• 8x ARP M12 x 1.25 Pro Series 12-Point Flywheel Bolts
• 1x Set of Washers
• Note: 1FZ-FE applications require 2 kits (12 bolts total)

Product Description

The ARP 203-2801 is a Pro Series flywheel bolt kit designed primarily for the Toyota 3S-GTE 2.0L turbocharged engine, covering the legendary Celica All-Trac/GT-Four, MR2 Turbo, and Caldina GT-T platforms. The 3S-GTE is a high-revving, high-boost engine used extensively in motorsport and performance builds - any clutch or flywheel installation on these platforms warrants upgrading the OEM flywheel bolts, which are torque-to-yield hardware not designed for repeated installation or elevated power levels. This ARP kit replaces them with 8740 chromoly aerospace bolts rated at 200,000 psi for reliable clamping under any operating condition.

The flat 12-point head provides better socket engagement than standard hex heads for more accurate torque application, and the larger shank diameter improves flywheel register alignment. This kit also fits BEAMS 3S-GE and 5S-FE engines sharing the same M12 x 1.25 flywheel bolt pattern. For 1FZ-FE Land Cruiser applications requiring 12 bolts, two kits must be purchased. Sold as a set of 8 bolts with washers included.
