ARP 208-6001 HP Series Rod Bolt Kit M8 Honda/Acura D15 D16 B18A B18B B20

Vehicle Fitment

• 1988-1991 Honda CRX Si (D16A6 1.6L SOHC)
• 1989-1991 Honda Civic Si (D16A6 1.6L SOHC)
• 1992-1995 Honda Civic EX / Si (D16Z6 1.6L SOHC VTEC)
• 1996-2000 Honda Civic CX / DX / LX (D16Y7 1.6L SOHC)
• 1996-2000 Honda Civic EX (D16Y8 1.6L SOHC VTEC)
• 1996-2000 Honda Civic HX (D16Y5 1.6L SOHC)
• 1993-1995 Honda del Sol Si (D16Z6 1.6L SOHC VTEC)
• 1996-1997 Honda del Sol S / Si (D16Y7 / D16Y8 1.6L SOHC)
• 1990-1993 Acura Integra GS / LS / RS (B18A1 1.8L DOHC)
• 1994-2001 Acura Integra GS / LS / RS (B18B1 1.8L DOHC)
• 1997-2001 Honda CR-V (B20B4 / B20Z2 2.0L DOHC)
• Compatible with any stock OEM connecting rod application using the Honda/Acura M8 rod bolt specification, including D15, D16, B18A, B18B, and B20 engine families

Fitment Notes

• Designed for stock OEM connecting rods only - will NOT fit aftermarket H-beam or I-beam connecting rods, which use a larger 9mm bolt (ARP 208-6401)
• Replaces the factory 8mm OEM rod bolt - a critical upgrade for any build exceeding 6,400 RPM, where stock rod bolts are known to stretch and fail
• Essential for LS-VTEC (B18A/B block + B16/B18C head) and B20-VTEC builds - these hybrid combinations rely on B18A/B or B20 rods with 8mm bolts
• ARP recommends using a stretch gauge for installation - stretch target: 0.0048-0.0052 in.; torque spec: 26 ft-lbs with ARP Ultra-Torque lubricant
• Adequate chamfer at the top of each rod bolt hole is required to clear the underhead radius

Features

• Made from seamless and defect-free 8740 chromoly steel, rated at 200,000 psi tensile strength - nearly five times stronger than OEM Honda/Acura connecting rod bolts
• Threads rolled after heat treatment for superior fatigue strength compared to bolts threaded before heat treating
• Large underhead radius reduces stress concentration at the critical bolt head-to-shank junction
• Heat-treated before grinding and thread rolling for consistent material hardness throughout
• Guaranteed to pass magnetic inspection testing - meets the quality standard for competition engine applications
• Reusable within spec - check bolt stretch at each teardown and replace if permanently elongated beyond service limit

Specifications

• Part Number: 208-6001
• Material: 8740 Chromoly Steel
• Tensile Strength: 200,000 psi
• Thread Size: M8 (5/16 in. UNF, OEM size)
• Underhead Length (UHL): 1.800 in. (45.7 mm)
• Cap Retention Style: Through-Bolt (with hex nut)
• Nut Style: Hex
• Rod Manufacturer: Stock OEM Rods only
• Stretch Spec: 0.0048-0.0052 in.
• Torque Spec: 26 ft-lbs with ARP Ultra-Torque lubricant
• Finish: Black Oxide
• Nuts Included: Yes
• Quantity: Set of 8 (covers one complete 4-cylinder engine)

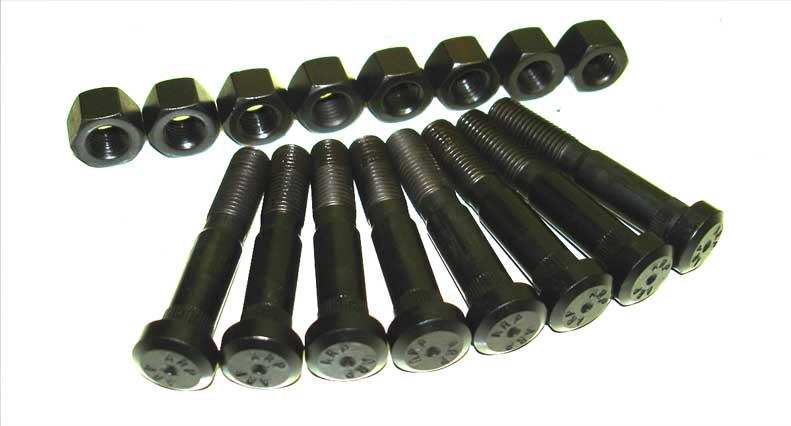

Included Components

• 8x ARP M8 8740 Chromoly Connecting Rod Bolts
• 8x Hex Nuts
• 1x ARP Ultra-Torque Fastener Assembly Lubricant

Product Description

The ARP 208-6001 is a High Performance Series connecting rod bolt kit for Honda and Acura engines using the OEM 8mm M8 rod bolt, covering the D15, D16, B18A, B18B, and B20 engine families. These engines share a common weakness: the factory 8mm rod bolt is undersized for sustained high-RPM operation and is a well-documented failure point in performance builds. ARP rod bolts are the standard first step in any serious D-Series, LS-VTEC, or B20-VTEC build - if the engine will be run beyond 6,400 RPM, upgrading the rod bolts with this kit is strongly recommended before any other bottom-end work.

Made from 8740 chromoly steel rated at 200,000 psi, these bolts are nearly five times stronger than OEM with threads rolled after heat treatment for exceptional fatigue life. These are designed for stock OEM connecting rods only - aftermarket rods typically use larger 9mm bolts (ARP 208-6401). Stretch gauge installation to 0.0048-0.0052 in. is recommended; torque to 26 ft-lbs with ARP Ultra-Torque lubricant if a stretch gauge is unavailable. Sold as a complete set of 8 bolts and nuts.
