ARP 100-7735 M14x1.50 Wheel Stud Kit 1 in. Over Stock Chrysler/Dodge Front/Rear

Vehicle Fitment

• 2005-2008 Dodge Magnum (Front/Rear, All Trims, RWD/AWD)
• 2005-2023 Chrysler 300 (Front/Rear, All Trims including 300C, RWD/AWD)
• 2006-2023 Dodge Charger (Front/Rear, All Trims including R/T, Scat Pack, SRT, Hellcat, RWD/AWD)
• 2008-2023 Dodge Challenger (Front/Rear, All Trims including R/T, Scat Pack, SRT, Hellcat, Demon, RWD)

Fitment Notes

• Fits both front and rear wheel hubs on all listed LX/LC platform vehicles
• Studs are 1.000 in. longer than stock - verify wheel offset and spacer clearance before installing; open-ended lug nuts required
• Same platform fitment as ARP 100-7734 but with 0.500 in. additional length for greater thread engagement with thick-centered wheels or larger spacers
• Press-in installation - hub hole must be 0.609-0.619 in. for steel/cast iron hubs and 0.609-0.615 in. for aluminum hubs to ensure correct interference fit
• Each hub hole must be chamfered 0.025 in. to clear the underhead radius and prevent stud failure
• Sold as a set of 5 studs - one per-corner purchase covers a single hub

Features

• Made from heat-treated 8740 chromoly steel, rated at 190,000 psi tensile strength - significantly stronger than OEM wheel studs
• 1.000 in. over stock length delivers maximum thread engagement for wheel spacers, aftermarket wheels, and race/track setups
• Cadmium-plated gold finish for enhanced corrosion resistance and long-term durability
• Quick-start nose design prevents cross-threading during lug nut installation
• Direct press-in installation - no drilling required for standard hub applications
• Engineered to handle the high shear and lateral forces generated under hard acceleration, braking, and cornering
• Compatible with all LX/LC platform performance trims including Hellcat, Demon, Scat Pack, and SRT variants

Specifications

• Part Number: 100-7735
• Material: 8740 Chromoly Steel
• Tensile Strength: 190,000 psi
• Thread Size: M14 x 1.50 RH
• Underhead Length (UHL): 3.436 in.
• Knurl Diameter: 0.625 in.
• Knurl Length: 0.445 in.
• Nose Length: 0.435 in.
• Hub Hole Size (Steel/Cast Iron): 0.609-0.619 in.
• Hub Hole Size (Aluminum): 0.609-0.615 in.
• Style: Press-In
• Finish: Cadmium Plated (Gold)
• Position: Front and Rear
• Quantity: Set of 5

Included Components

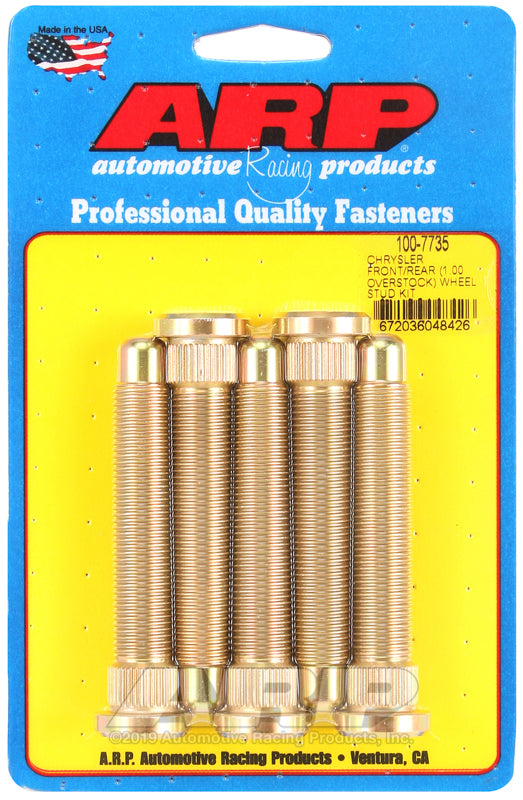

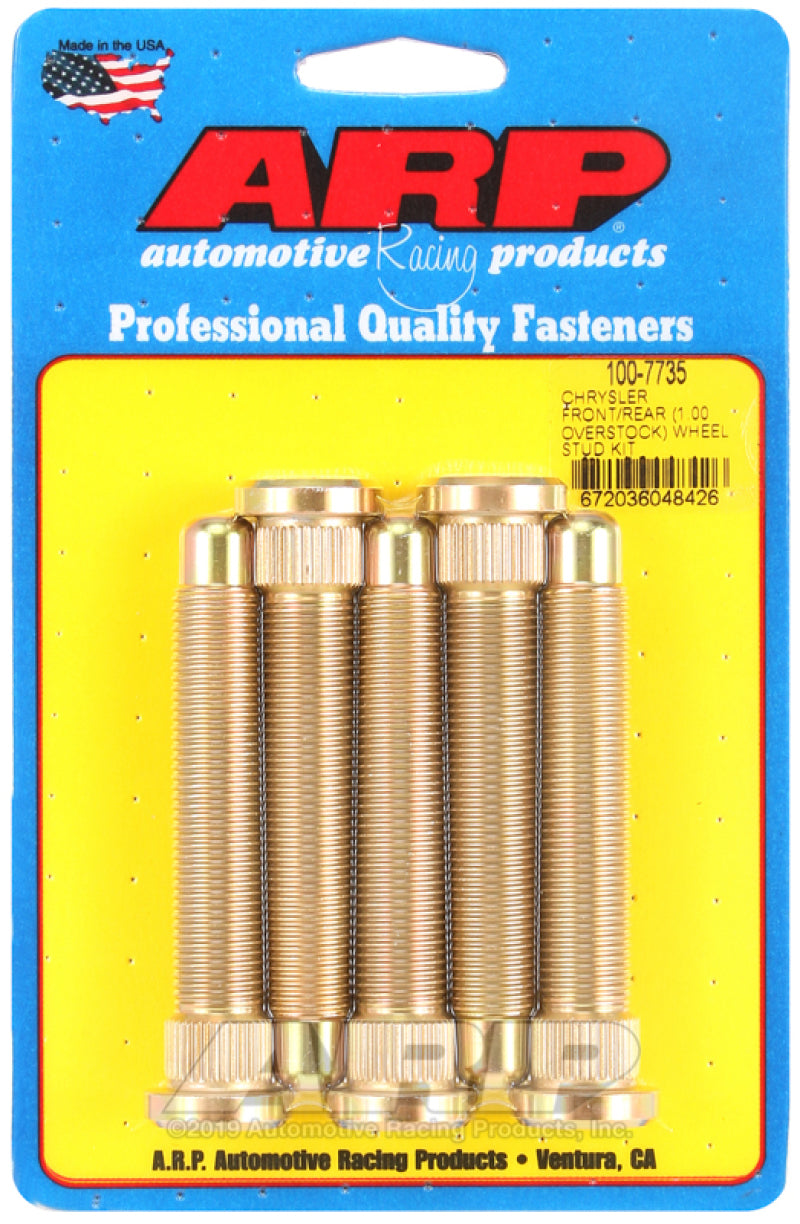

• 5x ARP M14 x 1.50 Chromoly Press-In Wheel Studs
• Note: Lug nuts not included; open-ended lug nuts required

Product Description

The ARP 100-7735 is a set of five press-in wheel studs for the Chrysler LX/LC platform, covering the Dodge Challenger, Dodge Charger, Dodge Magnum, and Chrysler 300. At 1.000 in. longer than the factory studs and a 3.436 in. UHL, this is the longer of the two ARP extended stud options for this platform - providing the maximum thread engagement needed for larger wheel spacers, thick-centered aftermarket wheels, and track builds where deep lug nut seating is critical. Made from heat-treated 8740 chromoly steel rated at 190,000 psi, these studs are built to withstand the shear forces and lateral loads that OEM hardware is not rated for under race conditions.

Installation is a direct press-in fit with no drilling required for standard applications. The quick-start nose reduces the risk of cross-threading during lug nut installation, and the cadmium-plated finish protects against long-term corrosion. Open-ended lug nuts are required with these extended studs. Compatible with all LX/LC trims at the front and rear, including the Hellcat, Demon, Scat Pack, SRT, and all 300C variants.
