ARP 207-5401 Main Stud Kit 4G63 4G63T 2-Bolt Main 12-Point Evo 1-9 Eclipse

Vehicle Fitment

• 1992-2006 Mitsubishi Lancer Evolution I-IX (Evo 1 through Evo 9)
• 1990-1999 Mitsubishi Eclipse GST / GSX (1G and 2G DSM)
• 1990-1998 Eagle Talon TSi
• 1990-1994 Plymouth Laser RS Turbo
• 1991-1992 Mitsubishi Galant VR4

Fitment Notes

• Fits both 6-bolt and 7-bolt 4G63/4G63T crankshaft variants - no separate kit required
• 2-bolt main cap configuration only
• ARP recommends align honing the block after installing main studs to verify main journals do not shift
• Always use the included ARP Ultra-Torque assembly lube when torquing fasteners to achieve accurate clamp load
• Not compatible with windage tray applications

Features

• Eliminates main cap walk and fretting that occurs under high-load and high-boost conditions
• Protects engine block threads from damage caused by repeated torquing of main cap bolts
• 8740 chrome moly steel - rated superior to standard "aircraft quality" fasteners
• Heat-treated in-house to 190,000 psi tensile strength before thread rolling
• Precision J-form threads rolled after heat-treat - threads up to 1000% stronger than cut-thread alternatives
• Hardened parallel-ground washers provide consistent and accurate clamping surface
• Exceeds the most stringent aerospace fastener specifications
• Made in the USA by Automotive Racing Products (ARP)

Specifications

• Application: Mitsubishi 4G63 / 4G63T, 2.0L DOHC, 2-Bolt Main
• Material: 8740 Chrome Moly Steel
• Finish: Black Oxide
• Tensile Strength: 190,000 psi
• Yield Strength: 200,000 psi
• Thread Size: M10 x 1.25
• Nut Style: 12-Point
• Nut Socket Size: 12mm 12-Point
• Stud Installation Drive: 4mm Allen Hex
• Torque Spec: 20 ft-lbs → 40 ft-lbs → 60 ft-lbs (3-step, with ARP Ultra-Torque lube)
• Windage Tray Compatible: No
• Quantity: 10 studs, 10 washers, 10 nuts (sold as a complete kit)

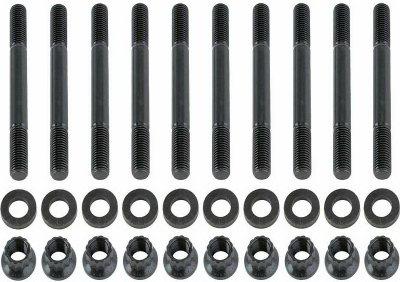

Included Components

• 10x 8740 Chrome Moly Steel Studs
• 10x Hardened Parallel-Ground Washers
• 10x 12-Point Nuts
• 1x ARP Ultra-Torque Fastener Assembly Lube

Product Description

The ARP 207-5401 is a complete main stud kit engineered for Mitsubishi 4G63 and 4G63T engines, covering the Lancer Evolution I-IX, 1G/2G DSM Eclipse GST/GSX, Eagle Talon TSi, Plymouth Laser RS Turbo, and Galant VR4. It replaces the factory 2-bolt main cap hardware across both 6-bolt and 7-bolt crank variants. By converting to studs, the kit eliminates main cap walk and fretting - critical failure modes in high-boost turbocharged builds - while also protecting the engine block threads from repeated torque cycling.

Each stud is cold-forged from premium 8740 chrome moly steel, heat-treated in-house to 190,000 psi tensile strength, and precision J-form threaded after heat-treat for thread strength up to 1000% greater than conventional cut threads. The kit includes 10 studs, 10 hardened parallel-ground washers, 10 12-point nuts, and ARP Ultra-Torque assembly lube for consistent torque readings. Torque in three steps to 60 ft-lbs using the included lube. ARP recommends align honing the block following stud installation.
