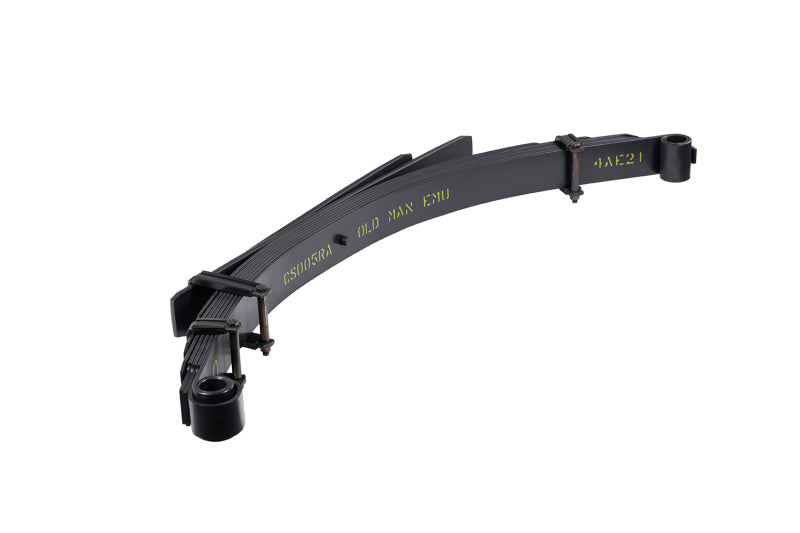

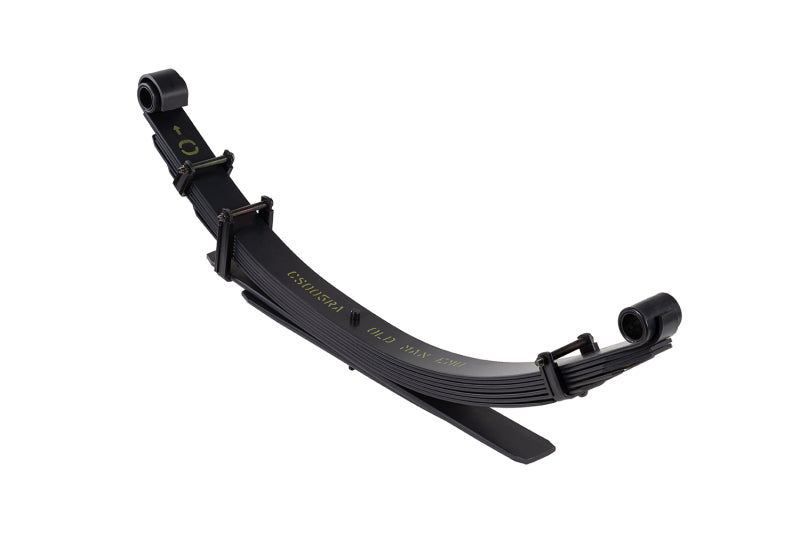

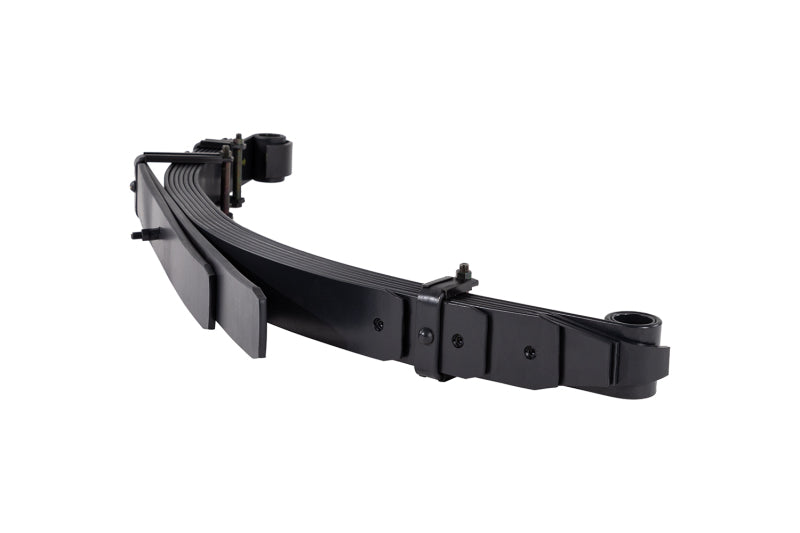

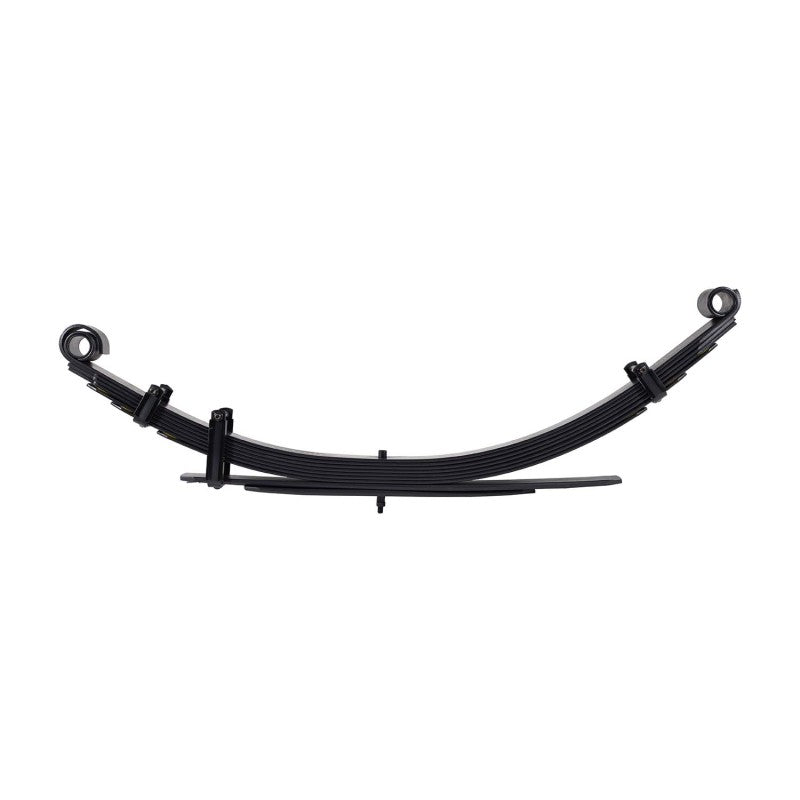

Old Man Emu CS005RA 3" Rear Leaf Spring 1980-1989 Toyota Land Cruiser 60 Series

Vehicle Fitment

• 1980-1987 Toyota Land Cruiser FJ60 4.2L Gas
• 1981-1984 Toyota Land Cruiser BJ60 4.2L Diesel
• 1982-1983 Toyota Land Cruiser 3.4L Diesel (2-door and 4-door)
• 1984-1985 Toyota Land Cruiser BJ60LG-MK 3.4L Diesel
• 1985 Toyota Land Cruiser BJ60 3.4L Diesel
• 1986 Toyota Land Cruiser HJ60 4.2L Diesel
• 1987 Toyota Land Cruiser HJ60 2.4L Diesel
• 1988-1989 Toyota Land Cruiser FJ62 4.0L Gas

Fitment Notes

• Rear axle position only
• Heavy load application designed for vehicles with constant rear cargo weight
• Rated for 200 kg (440 lbs) constant load capacity
• Provides approximately 2-3 inches of lift depending on vehicle weight and configuration
• Sold individually; order two for complete rear replacement
• Pair with Old Man Emu shock absorbers for optimal performance (sold separately)
• Front bump stop measurement must not exceed 100mm to ensure proper shackle engagement
• Professional installation recommended

Features

• Dakar Series heavy-duty rear leaf spring engineered for demanding off-road conditions
• Draw-tapered and diamond-cut leaves distribute load progressively over larger surface area
• Two-stage leaf pack design: 7 primary leaves plus 2 secondary leaves for progressive load support
• Military wrap design provides added safety and structural integrity
• Fully scragged during manufacturing to ensure permanent set and reduce sagging risk
• Shot peened on tension side to reduce spring stress and potentially double service life
• Re-greasable nylon interleaf anti-friction pads reduce friction at high-load leaf tips
• Bolted leaf clamps allow installation of anti-squeak nylon liners
• Flat axle seat area ensures positive, safe axle mounting while reducing spring stress
• Load tested to ensure each spring meets required specifications
• Graphite coating further reduces friction between spring leaves and friction pads
• Vastly improved ride quality, handling, and load carrying capability over stock

Specifications

• Part Number: CS005RA
• Series: Dakar
• Position: Rear
• Type: Multi-Leaf Spring (Two-Stage)
• Number of Leaves: 7 + 2 (Primary + Secondary)
• Load Rating: Heavy Load (200 kg / 440 lbs Constant)
• Spring Rate: 314 / 617 lbf/in (Two-Stage)
• Primary Free Camber: 250mm
• Eye Diameter (Front): 35mm
• Eye Diameter (Rear): 35mm
• Material: Steel
• Finish: Black
• Weight: 36 kg (79.4 lbs)
• Quantity: Sold Individually
• Warranty: 3 Years / 60,000 km
• Country of Origin: Australia

Included Components

• Old Man Emu Dakar Rear Leaf Spring (1)

Product Description

The Old Man Emu CS005RA Dakar rear leaf spring delivers heavy-duty load carrying capability and significantly improved ride quality for 1980-1989 Toyota Land Cruiser 60 Series vehicles. Engineered as part of ARB's integrated 4x4 suspension system, this rear leaf spring is designed for vehicles carrying constant rear cargo weight up to 200 kg (440 lbs), making it ideal for expedition builds, commercial applications, and heavily-equipped overland rigs. The innovative two-stage leaf pack design features 7 primary leaves plus 2 secondary leaves that engage progressively as load increases, providing comfortable unladen ride quality while offering substantial support when fully loaded. Draw-tapered and diamond-cut leaf profiles distribute stress over larger surface areas to prevent the concentrated loads that cause premature leaf breakage, while the shot peening process applied to all tension surfaces can double the spring's service life. The military wrap design adds structural safety, and the flat axle seat area ensures secure mounting while reducing spring stress. Re-greasable nylon interleaf friction pads minimize leaf-to-leaf friction at the high-load tips where wear is greatest. For optimal performance, pair with Old Man Emu shock absorbers specifically tuned for the Land Cruiser 60 Series platform. Developed, engineered, and manufactured in Australia by ARB's dedicated suspension engineers with over 40 years of off-road expertise.
