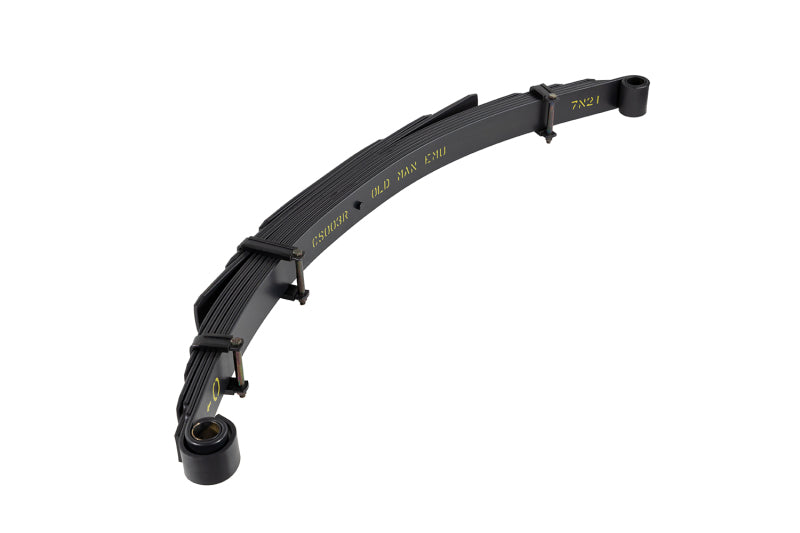

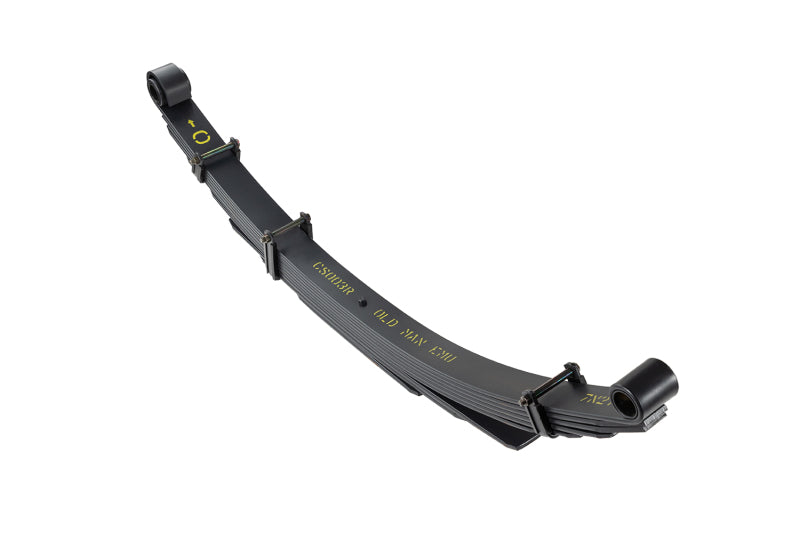

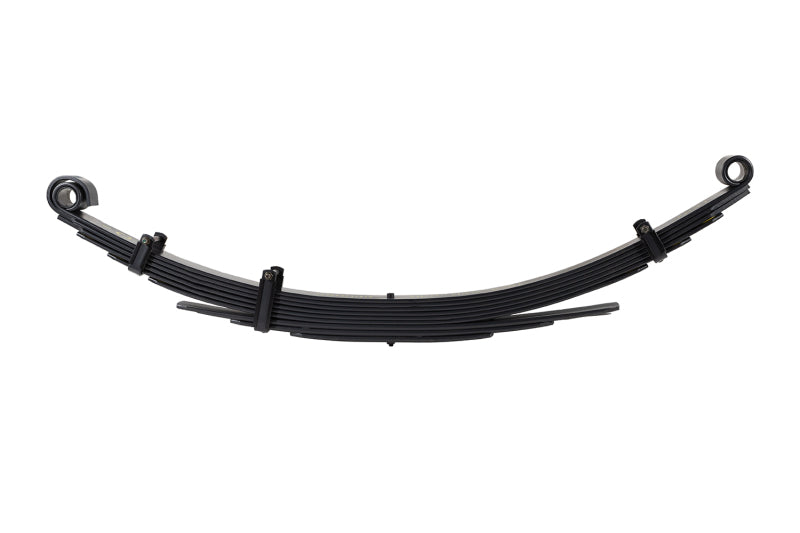

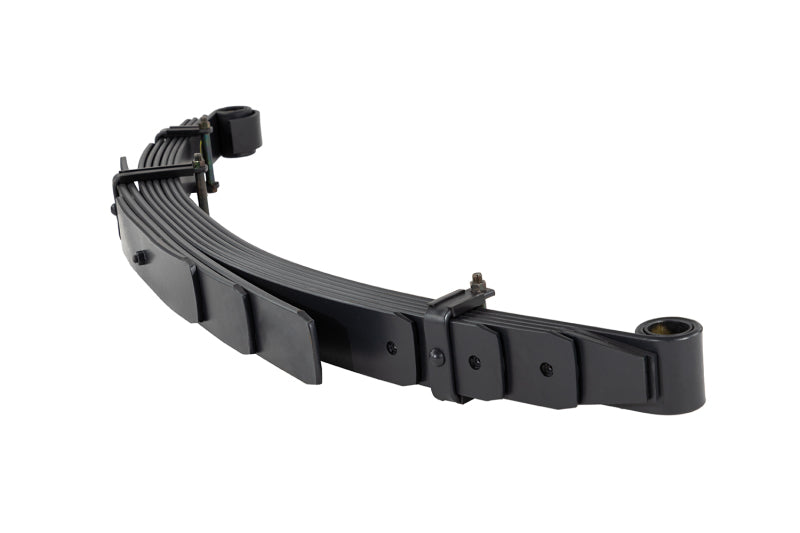

Old Man Emu CS003R Dakar Rear Leaf Spring 2" Lift for Toyota FJ45 Series

Vehicle Fitment

• 1963-1967 Toyota FJ45 Series

Fitment Notes

• Rear position
• Sold individually
• Pair with Old Man Emu 4X4 shock absorbers for improved ride, handling, and load capacity

Features

• Emu Dakar leaf spring, part of ARB's integrated 4X4 suspension systems
• Engineered for optimum ride performance across all operating conditions
• Draw-tapered and diamond-cut leaves
• Progressive load distribution, reduces leaf-end stress
• Increased ride quality, protection against leaf breakage
• Bolt clamps and liners, anti-squeak nylon liners
• Fully scragged and load-tested, reduces sagging risk
• Graphite coating, reduces leaf-to-leaf friction
• Military wrap for added safety, not available on all applications
• Re-greaseable nylon interleaf anti-friction pads
• Flat axle seat area, positive safe axle mount
• Shot peened tension side, reduces spring stress, can double spring life
• Two-stage leaf pack, optimal comfort loaded and unloaded

Specifications

• Lift height: 2in
• Position: Rear
• Weight: 100.1 lbs
• Warranty: Minimum 3 years or 60,000km, whichever comes first

Included Components

• 1x Dakar Rear Leaf Spring

Product Description

Old Man Emu Dakar Leaf Spring, part of ARB's integrated 4X4 suspension systems. Engineered to provide optimum ride performance irrespective of the operating conditions the vehicle's suspension is required to work under, developed through hundreds of hours of testing in the demanding Australian Outback.

Draw-tapered and diamond-cut leaves distribute load progressively over a larger surface area, reducing stress at leaf ends for increased ride quality and protection against breakage. Bolt clamps and liners allow installation of anti-squeak nylon liners, while a two-stage leaf pack delivers optimal comfort whether the vehicle is unladen or under heavy load. Shot peening on the tension side reduces spring stress and can double spring life, and a graphite coating further reduces friction between leaves.

Fits 1963-1967 Toyota FJ45 Series, rear position, 2in lift. Sold individually. Pair with a set of Old Man Emu 4X4 shock absorbers for vastly improved ride, handling, and load carrying capability. Backed by a minimum 3-year or 60,000km warranty.
