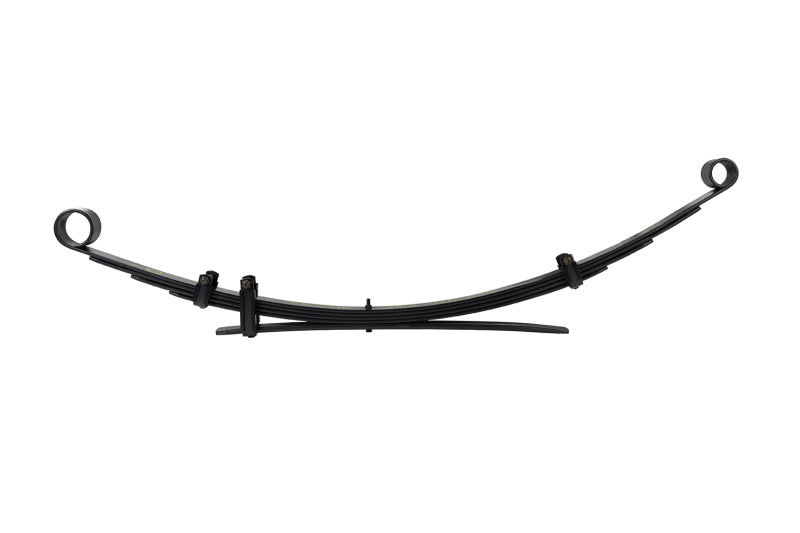

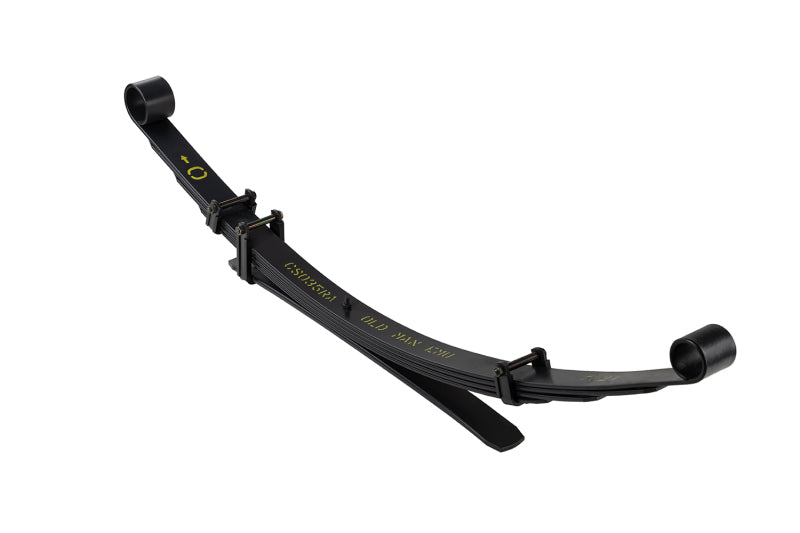

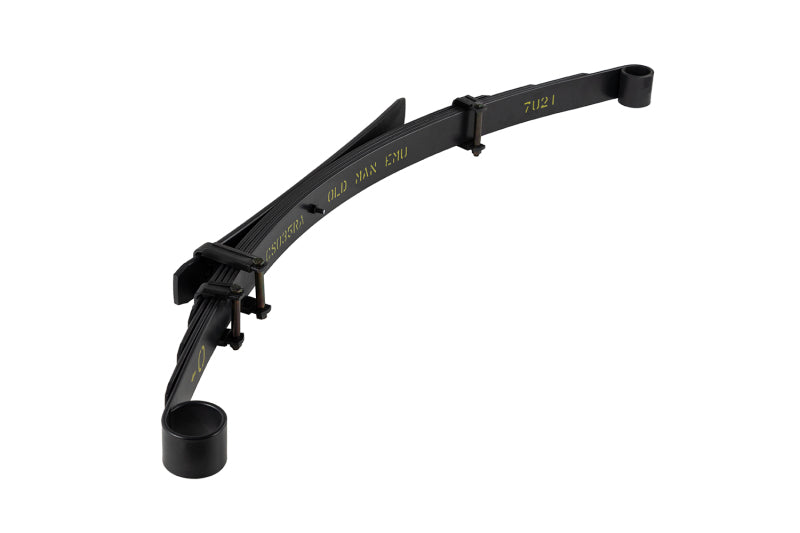

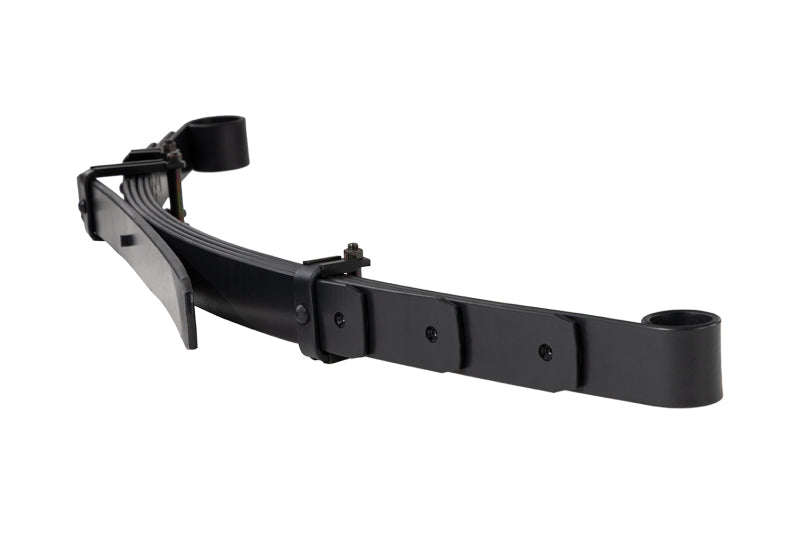

Old Man Emu CS035RA Rear 2" Lift Leaf Spring for 84-01 Jeep Cherokee XJ 2.5/4.0L

Vehicle Fitment

• 1984-2001 Jeep Cherokee XJ 2.5L I4
• 1984-2001 Jeep Cherokee XJ 4.0L I6

Fitment Notes

• Rear axle position only
• 2-door and 4-door models
• Medium load -- for vehicles with accessories (bumpers, winch, roof rack, gear)
• Estimated lift: 2" (50mm) over stock
• Vehicles with OE Up Country Suspension will only gain approximately 20mm
• Bushings NOT included -- Old Man Emu OMESB109 (sold separately)
• U-bolts NOT included -- Old Man Emu OMEU57 or OMEU60 (sold separately)
• Best paired with Old Man Emu shock absorbers for matched performance
• Sold individually -- two required per vehicle

Features

• Dakar series leaf spring -- engineered for on/off-road performance
• Two-stage leaf pack for comfort unladen and support under load
• Draw-tapered and diamond-cut leaves distribute load progressively
• Shot peened to reduce stress and increase spring life
• Fully scragged to reduce the risk of sagging
• Load tested to meet required specification
• Military wrap design for added safety
• Bolted leaf clamps allow anti-squeak nylon liner installation
• Re-greasable nylon interleaf anti-friction pads
• Flat axle seat for positive, safe axle mounting

Specifications

• Part Number: CS035RA
• Brand: Old Man Emu (ARB)
• Series: Dakar
• Type: Rear Leaf Spring
• Load Rating: Medium
• Estimated Lift: 2" (50mm)
• Number of Leaves: 4 + 1
• Spring Rate: 137 / 257 lbf/in (Two-Stage)
• Primary Free Camber: 235mm
• Stack Height: 37mm
• Eye Diameter: 62mm (Front) / 43.5mm (Rear)
• Material: Steel
• Color: Black
• Weight: 20.9 kg (46.1 lbs)
• UPC: 09332018022967
• Warranty: 3-Year / 60,000 km Limited

Included Components

• Old Man Emu Dakar rear leaf spring (1)

Product Description

The Old Man Emu CS035RA is a Dakar series rear leaf spring designed for 1984-2001 Jeep Cherokee XJ models, providing an estimated 2 inches (50mm) of lift over stock ride height. This medium load spring is engineered for vehicles carrying additional weight from aftermarket accessories such as bumpers, winches, roof racks, and camping gear. The 4+1 leaf pack features a two-stage design that rides primarily on the softer primary stage when unladen for comfortable daily driving, with the secondary stage engaging under heavier loads for additional support. Each leaf is draw-tapered and diamond-cut to progressively distribute load over a larger surface area, reducing the high stresses that develop at leaf ends. The tension side of all leaves is shot peened to reduce spring stress and extend service life, while the full pack is scragged during manufacturing to resist long-term sagging. Military wrap design provides added safety, and re-greasable nylon interleaf anti-friction pads reduce friction at the leaf tips. Leaf spring bushings and U-bolts are not included and must be purchased separately. Old Man Emu offers the OMESB109 leaf spring bushing kit and OMEU57 or OMEU60 U-bolt kits for this application. For optimum ride quality and handling, pair with Old Man Emu shock absorbers matched to this spring rate. Designed and engineered in Australia by ARB. Sold individually -- two required per vehicle. Backed by a 3-year / 60,000 km limited warranty.
