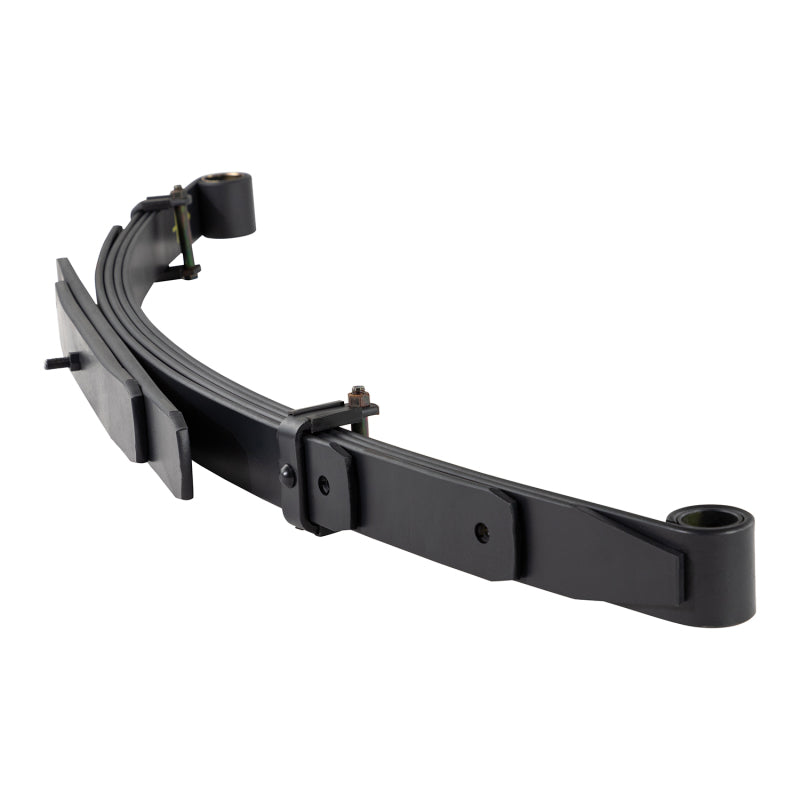

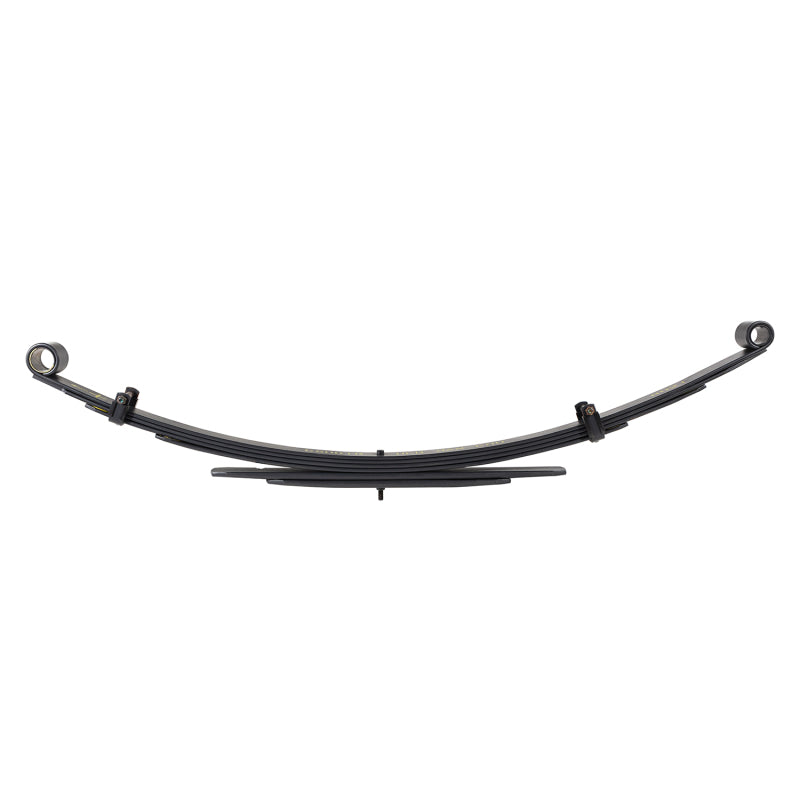

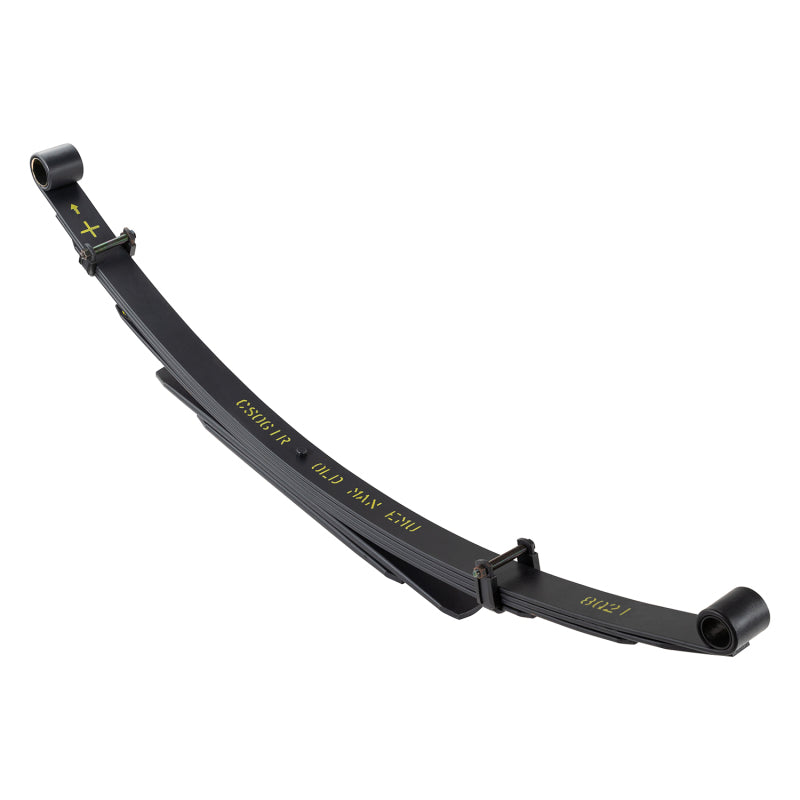

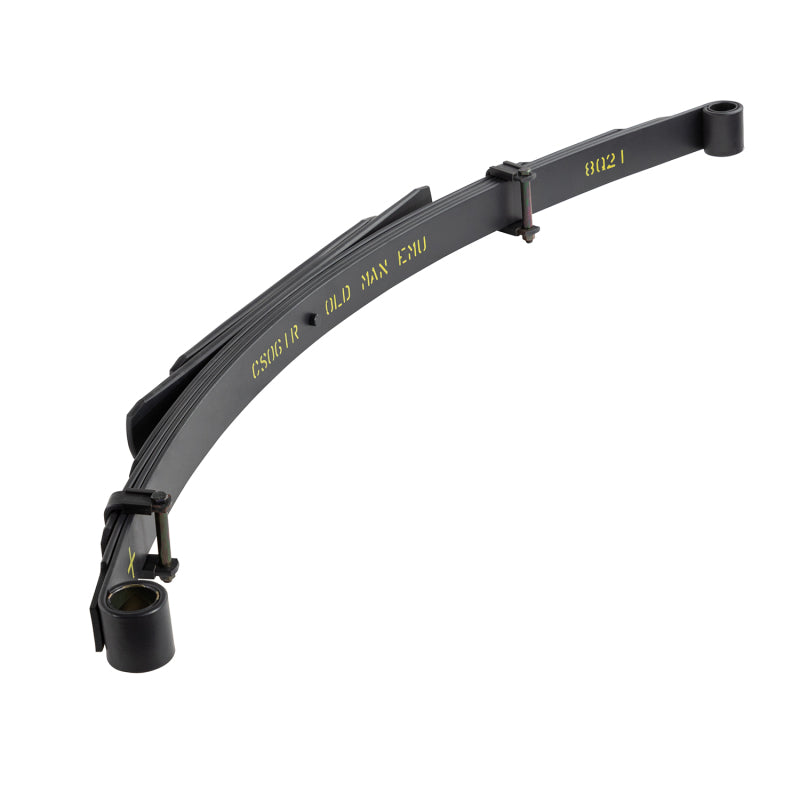

Old Man Emu CS061R Dakar 1" Rear Leaf Spring Medium for 05-15 Nissan Xterra 4.0L

Vehicle Fitment

• 2005-2015 Nissan Xterra S 4.0L V6
• 2005-2010 Nissan Xterra SE 4.0L V6
• 2005-2010 Nissan Xterra Off-Road 4.0L V6
• 2006-2015 Nissan Xterra X 4.0L V6
• 2011-2015 Nissan Xterra PRO-4X 4.0L V6
• 2011-2012 Nissan Xterra SV 4.0L V6
• 2005 Nissan Xterra Off-Road 2.5L I4

Fitment Notes

• Designed for 2005-2015 Nissan Xterra N50 (second generation) with rear leaf spring suspension
• Medium load spring - ideal for stock or lightly loaded applications (0-150 lbs constant weight)
• Provides approximately 1.5-2" (40-60mm) of lift with no additional load
• Provides approximately 1.2" (30mm) of lift with 200 kg (440 lbs) additional rear load
• Sold individually - order quantity of 2 for complete pair
• Requires OMESB99 bushing kit (sold separately)
• Requires OMEU72 extended U-bolt kit (sold separately)
• FK42 sway bar link spacer is mandatory to clear shock absorber
• Recommend pairing with Old Man Emu D37XL rear shocks for optimal performance
• Does NOT fit Nissan Frontier - see CS031R for D21/D22 Frontier applications

Features

• Draw-tapered and diamond cut leaves for progressive load distribution
• Two-stage 4+2 leaf pack design for optimum comfort when unladen
• Bolted leaf clamps allow installation of anti-squeak nylon liners
• Fully scragged to reduce the risk of sagging over time
• Load tested to ensure spring meets required specification
• Military wrap design provides added safety
• Re-greasable nylon interleaf anti-friction pads reduce friction at leaf tips
• Flat axle seat area allows positive, safe axle mount and reduces spring stress
• Shot peened tension side to reduce stress and increase spring life
• Graphite coated to reduce friction between leaves
• Supports aftermarket rear bumpers and tire carriers
• Engineered and tested in the Australian Outback

Specifications

• Part Number: CS061R
• UPC: 9332018023230
• Brand: Old Man Emu by ARB
• Series: Dakar
• Position: Rear
• Spring Type: Two-Stage Leaf Pack
• Number of Leaves: 4 + 2
• Spring Rate: 186 / 352 lbf/in (Primary / Secondary)
• Estimated Lift: 1.5-2" (40-60mm) unladen
• Primary Free Camber: 208mm
• Eye Diameter: 40mm (Front) / 32.7mm (Rear)
• Material: Steel
• Color: Black
• Weight: 24.9 kg (54.9 lbs)
• Quantity: 1 (Single Spring)
• Warranty: 3 Years / 35,000 Miles

Included Components

• Old Man Emu CS061R Dakar Rear Leaf Spring (Single)

Product Description

The Old Man Emu CS061R Dakar Rear Leaf Spring delivers approximately 1.5-2 inches of lift for 2005-2015 Nissan Xterra SUVs equipped with rear leaf spring suspension. Part of ARB's integrated 4X4 suspension system, this medium load spring features a progressive two-stage 4+2 leaf pack design that provides excellent ride quality when unladen while maintaining proper support for light to moderate loads. The dual overload leaf design offers one more overload leaf than factory Nissan springs, allowing for improved performance when towing or hauling. Draw-tapered and diamond cut leaves ensure the load is progressively distributed over a larger surface area, reducing the high stresses that develop at leaf ends. The spring is fully scragged during manufacturing to reduce the risk of sagging, then shot peened and graphite coated for maximum durability. This spring is ideal for Xterra owners looking to support aftermarket rear bumpers, tire carriers, and overlanding accessories while maintaining improved ride quality over worn factory springs. For optimal performance, pair with Old Man Emu D37XL rear shocks. Engineered and tested in the demanding Australian Outback by ARB. Sold individually - order two for a complete pair. Bushings and U-bolts sold separately.
