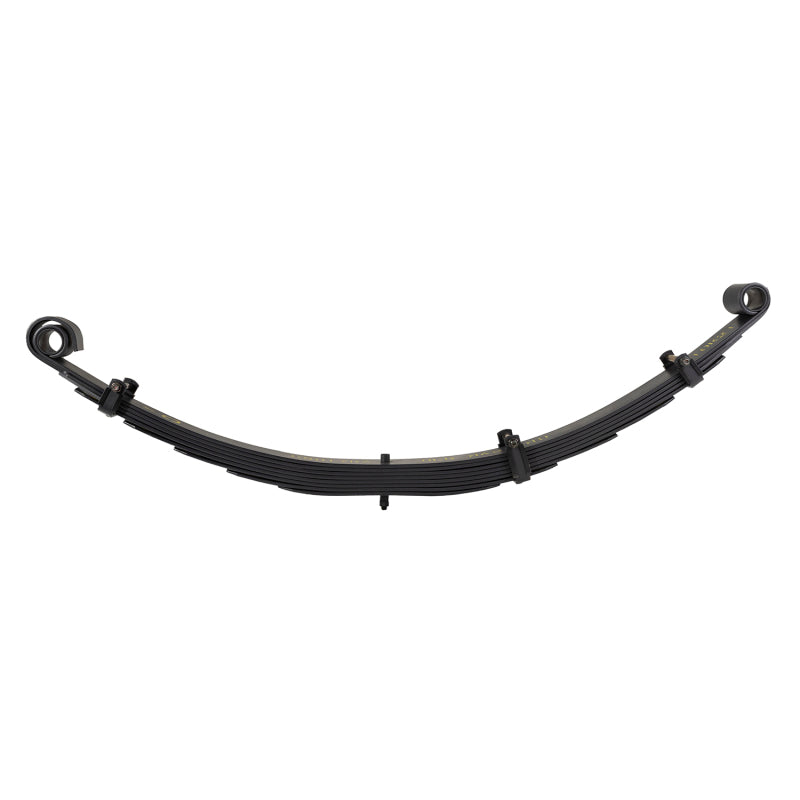

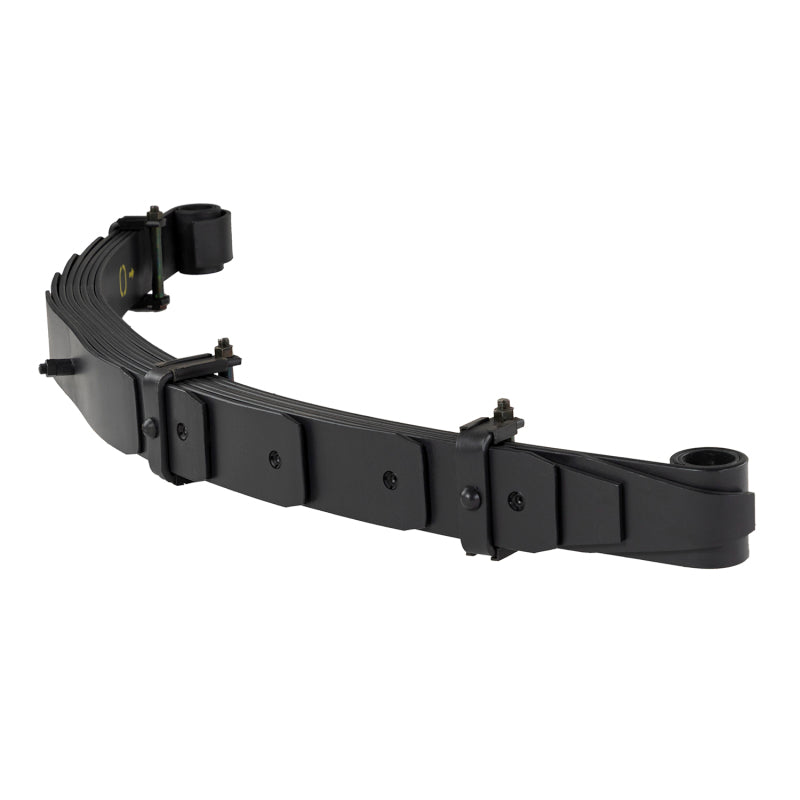

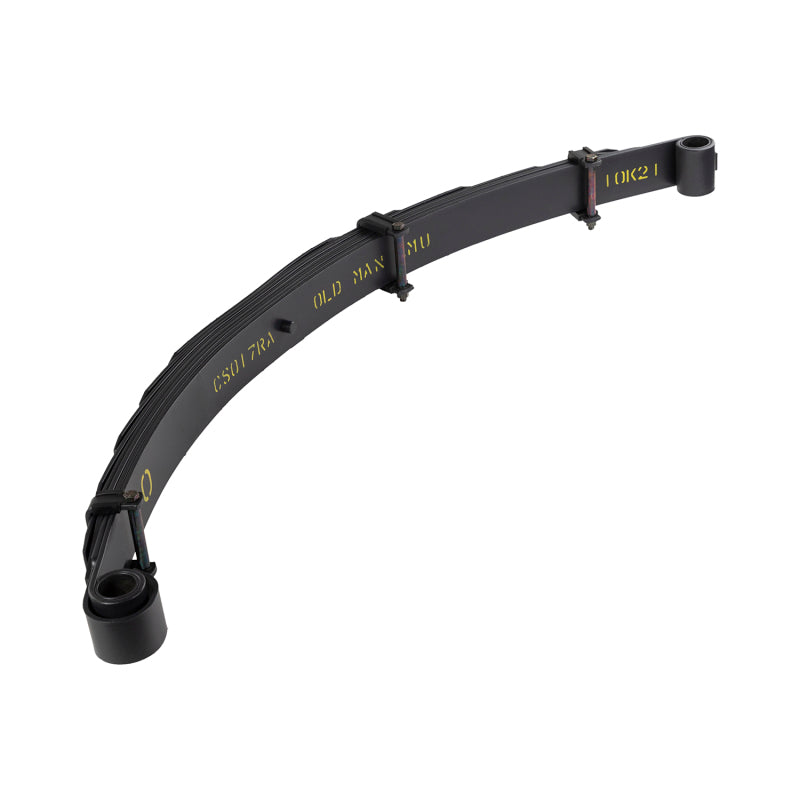

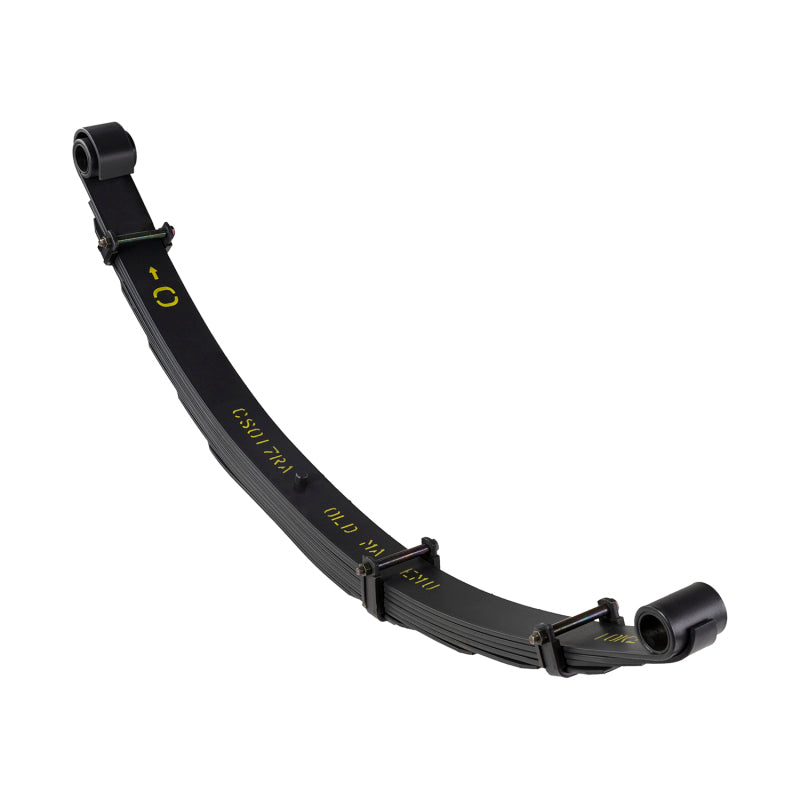

ARB/Old Man Emu CS017RA Rear Leaf Spring for 80-89 Toyota Land Cruiser FJ/BJ/HJ

Vehicle Fitment

• 1980-1987 Toyota Land Cruiser FJ40 (4.2L I6 Gas, 2-Door)
• 1980-1987 Toyota Land Cruiser FJ60 (4.2L I6 Gas, 4-Door)
• 1988-1989 Toyota Land Cruiser FJ62 (4.0L I6 Gas, 4-Door)
• 1981-1984 Toyota Land Cruiser BJ42 (4.2L I6 Diesel, 2-Door)
• 1981-1985 Toyota Land Cruiser BJ60 (3.4L I4 Diesel / 4.2L I6 Diesel, 4-Door)
• 1985-1987 Toyota Land Cruiser BJ70 (3.4L I4 Diesel, 2-Door)
• 1982-1983 Toyota Land Cruiser (3.4L I4 Diesel, 2-Door and 4-Door)
• 1986-1987 Toyota Land Cruiser HJ60 (2.4L I4 Diesel / 4.2L I6 Diesel, 4-Door)

Fitment Notes

• Rear axle only -- sold individually (one spring per listing)
• Medium load rating -- suited for stock to lightly loaded vehicles; delivers approximately 2 inches of rear lift
• For heavier constant loads, consider CS017RA-B (heavy load variant)
• Light load variant: CS017RB (stock to unloaded vehicles)
• Best paired with Old Man Emu rear shock absorbers for a fully integrated suspension system

Features

• OME Dakar series -- approximately 2 inches of rear lift over stock
• Medium load rating -- optimized for stock to lightly accessorized vehicles
• Draw-tapered and diamond cut leaves
• Bolted leaf clamps -- allows installation of anti-squeak nylon liners
• Fully scragged -- reduces risk of sagging under sustained load
• Load tested to verify spring rate meets specification
• Military wrap design -- added safety if primary eye fails
• Re-greasable nylon interleaf anti-friction pads -- reduces friction at leaf tips
• Flat axle seat area -- positive axle mount, reduces spring stress
• Shot peened -- reduces spring stress and extends service life
• Two-stage leaf pack -- optimizes comfort across load ranges
• Black powder coat finish

Specifications

• Position: Rear
• Series: Dakar
• Load rating: Medium
• Lift height: Approximately 2 inches
• Spring rate: 255 lbf/in
• Number of leaves: 8
• Primary free camber: 250 mm
• Eye diameter (front/rear): 35 mm / 35 mm
• Material: Steel
• Finish: Black powder coat
• Weight: 25.5 kg (56.2 lbs.)
• Sold as: Single spring
• Warranty: 3 years

Included Components

• 1x Old Man Emu Dakar rear leaf spring

Product Description

The Old Man Emu CS017RA is a Dakar series rear leaf spring for 1980-1989 Toyota Land Cruiser FJ40, FJ60, FJ62, BJ42, BJ60, BJ70, and HJ60 platforms, delivering approximately 2 inches of rear lift over stock ride height. Engineered as part of ARB's integrated 4x4 suspension system, the Dakar spring improves ride quality, load carrying, and handling over both on-road and off-road terrain compared to worn or stock Toyota leaf springs. The medium load rating makes it suited for trucks running stock weight to light accessory loads; owners carrying heavier gear, winches, or roof racks consistently should consider a higher-rated spring.

Construction features include draw-tapered and diamond-cut leaves for progressive rate behavior, a two-stage leaf pack for improved unladen ride comfort, re-greasable nylon interleaf pads to reduce friction and noise, and a military wrap eye design that retains the pack if the primary eye breaks. All springs are fully scragged and load-tested before leaving the factory. Sold individually -- order two for a complete rear axle replacement. Backed by a 3-year ARB warranty.
