ARB/Old Man Emu CS019R Rear Leaf Spring for 89-97 Toyota Pickup/Tacoma/Hilux 4WD

Vehicle Fitment

• 1988-1997 Toyota Hilux 4WD with IFS (International Markets)
• 1997-2004 Toyota Hilux 4WD (Series 6 / N140-N170)
• 1989-1995 Toyota Pickup 4WD 2.4L I4 (22R-E) (US Market)
• 1989-1995 Toyota Pickup 4WD 3.0L V6 (3VZ-E) (US Market)
• 1995.5-1997 Toyota Tacoma 4WD Xtra Cab 2.4L I4 (6 Lug)
• 1995.5-1997 Toyota Tacoma 4WD Xtra Cab 2.7L I4 (6 Lug)
• 1995.5-1997 Toyota Tacoma 4WD Xtra Cab 3.4L V6 (6 Lug)
• 1995.5-1997 Toyota Tacoma 4WD Double Cab 3.4L V6 (6 Lug)
• 1995.5-1997 Toyota Tacoma PreRunner Xtra Cab (6 Lug)

Fitment Notes

• Designed for Toyota Hilux and Pickup models with IFS (Independent Front Suspension) and rear leaf springs
• Provides approximately 2" (50mm) of rear lift on Toyota Pickup and pre-1997 Hilux models
• Provides approximately 3-3.5" of rear lift on 1995.5-1997 Toyota Tacoma Xtra Cab/Double Cab
• NOT recommended for single cab Tacoma models
• Does NOT fit 5 lug Tacoma models - 6 lug applications only
• Medium duty spring - ideal for light to moderate loads up to approximately 200 lbs constant weight
• OME Greasable Shackles OR Anti Inversion Kit mandatory on 1997-2004 Hilux to prevent spring inversion
• May require new U-bolts (7.5" recommended) - order separately
• Rear tailpipe relocation or modification required on Tacoma applications
• Requires SB43 bushings for installation - sold separately
• Sold individually - order quantity of 2 for a complete pair

Features

• Draw-tapered and diamond cut leaves for progressive load distribution
• Two-stage leaf pack design (3+3) for optimum comfort when unladen
• Bolted leaf clamps allow installation of anti-squeak nylon liners
• Fully scragged to reduce the risk of sagging over time
• Load tested to ensure spring meets required specifications
• Military wrap design provides added safety
• Re-greasable nylon interleaf anti-friction pads reduce friction at leaf tips
• Flat axle seat area allows positive safe axle mount and reduces spring stress
• Shot peened tension side to reduce spring stress and increase service life
• Graphite coated to reduce friction between spring leaves and friction pads
• Engineered and tested in Australian Outback conditions

Specifications

• Part Number: CS019R
• UPC: 09332018022813
• Brand: Old Man Emu by ARB
• Series: Dakar
• Position: Rear
• Spring Type: Two-Stage Leaf Pack
• Number of Leaves: 3 + 3
• Spring Rate: 125 / 485 lbf/in (Primary / Secondary)
• Estimated Lift: 1.75-2" (45-50mm)
• Stack Height: 52.5mm
• Primary Free Camber: 235mm
• Eye Diameter: 39mm (Front) / 30mm (Rear)
• Material: Steel
• Color: Black
• Weight: 27.3 kg (60.2 lbs)
• Quantity: 1 (Single Spring)
• Warranty: 3 Years / 35,000 Miles

Included Components

• Old Man Emu CS019R Dakar Rear Leaf Spring (Single)
• Bushings, shackles, and U-bolts NOT included - order separately

Product Description

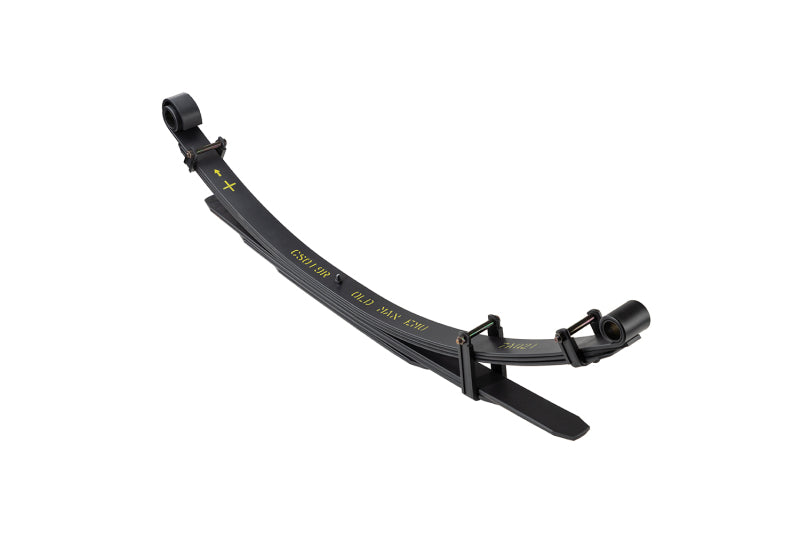

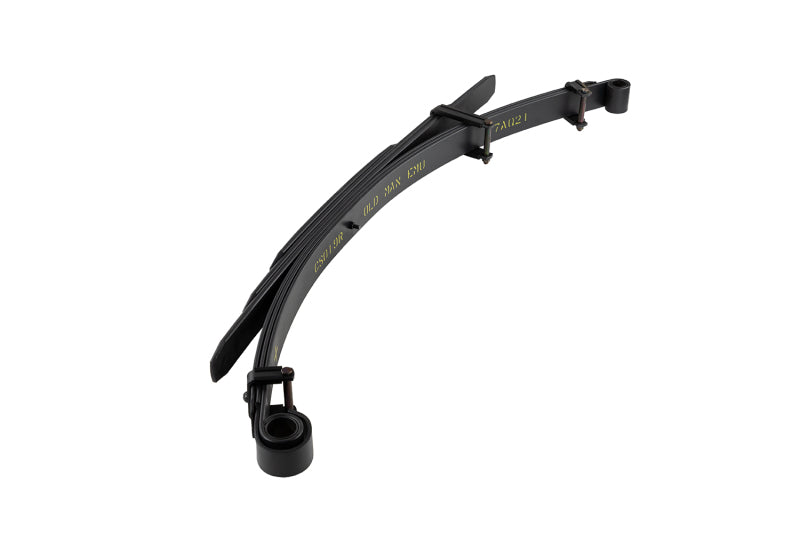

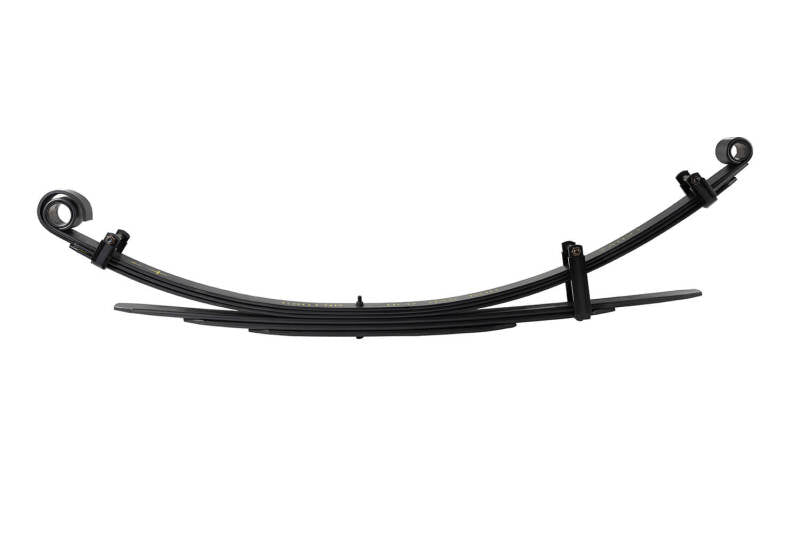

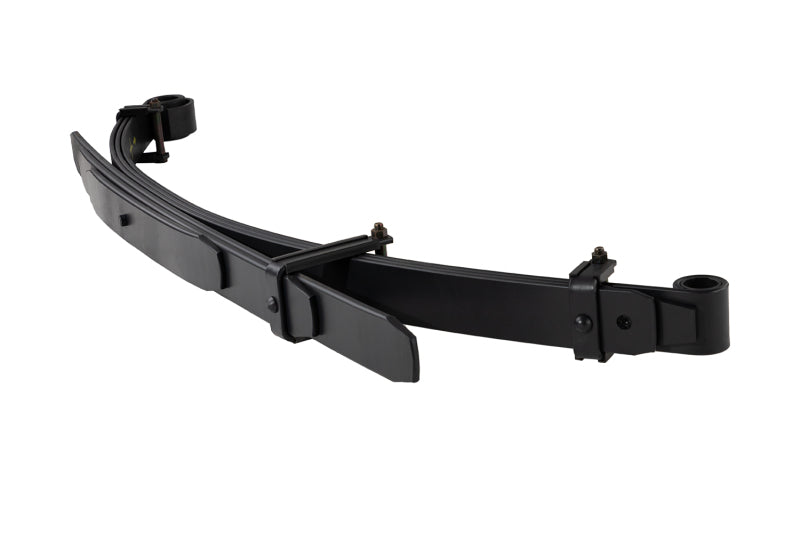

The Old Man Emu CS019R Dakar Rear Leaf Spring delivers exceptional ride quality and load-carrying capability for Toyota Hilux, Pickup, and first-generation Tacoma applications with IFS front suspension and rear leaf springs. As part of ARB's integrated 4x4 suspension systems, this medium-duty leaf spring features a two-stage 3+3 leaf pack design that provides comfortable ride quality when unladen while offering additional support when loads are added. The innovative draw-tapered and diamond cut leaves ensure progressive load distribution, reducing stress concentrations that can lead to premature failure. Each spring is fully scragged and load tested to meet precise specifications, while shot peening on the tension side can double the service life compared to untreated springs. Re-greasable nylon interleaf anti-friction pads minimize noise and friction at the leaf tips where forces are greatest. Engineered by Australian suspension specialists with extensive outback testing, the CS019R provides approximately 1.75-2 inches of lift on Hilux and Pickup applications, and 3-3.5 inches on Tacoma Xtra Cab models. For optimal performance, pair with Old Man Emu shock absorbers and front coil springs for a complete matched suspension system. Note: OME Greasable Shackles or Anti Inversion Kit are mandatory on 1997-2004 Hilux applications. Sold individually - order two springs for a complete rear pair.
