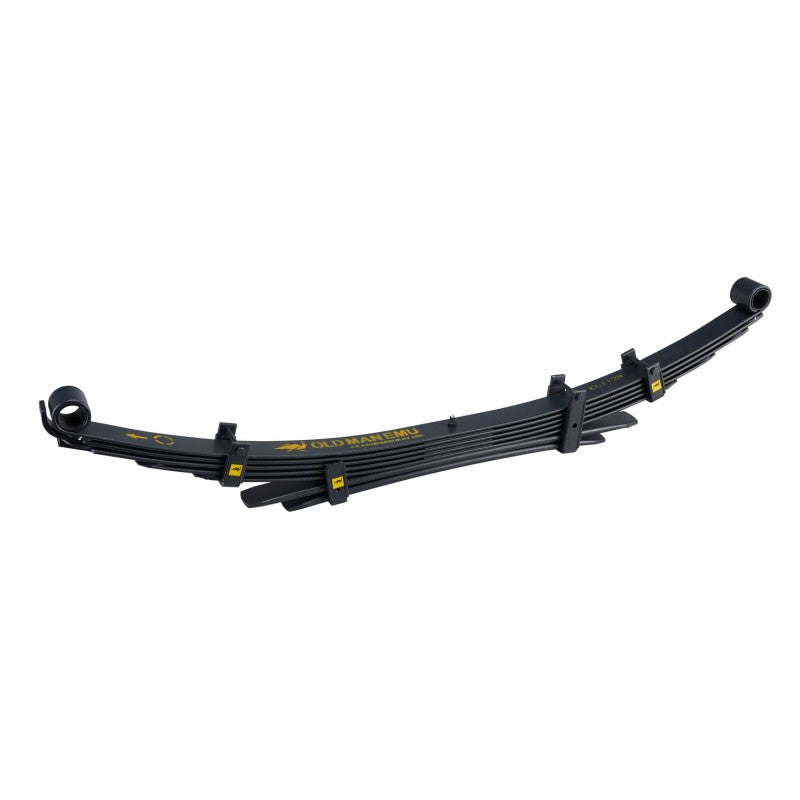

Old Man Emu EL112R Rear 2-2.75" Lift Leaf Spring for 05-23 Toyota Tacoma 6-Lug

Vehicle Fitment

• 2005-2023 Toyota Tacoma, 6-Lug, Rear

Fitment Notes

• Sold individually; order 2 for a complete pair
• Designed for constant 500+ lbs rear load (Overland use)
• Lift height varies by load and model year
• 2005-2015: approx. 2.50-2.75 in lift
• 2016+: approx. 2.00 in lift
• Replaces previous-generation CS047R and EL096R packs
• Does not include bushings
• Longer U-bolts required, sold separately
• Extended-travel rear shocks highly recommended
• 05-15 trucks: FK29 driveshaft packer kit recommended

Features

• Draw-tapered, diamond-cut leaves
• Military wrap design
• Bolted leaf clamps
• Anti-squeak nylon liner compatible
• Fully scragged
• Shot peened
• Load tested
• Re-greasable nylon interleaf pads
• Flat axle seat area
• Two-stage leaf pack
• Thicker leaf separation plates
• Plastic-lined spring clip retainers

Specifications

• Position: Rear
• Spring rate: 193 / 506 lbf/in
• Eye diameter: 40mm (F) / 40mm (R)
• Number of leaves: 5+2
• Primary free camber: 202mm
• Stack height: 76mm
• Weight: 32 kg
• Color: Black
• Material: Steel

Included Components

• 1x Rear Leaf Spring

Product Description

The Old Man Emu EL112R is a Dakar rear leaf spring built for 2005-2023 6-Lug Toyota Tacoma trucks carrying constant heavy rear loads, such as Overland builds with permanently installed weight. A two-stage leaf pack pairs a softer initial rate for daily-driving comfort with a stiffer secondary rate that engages under load, delivering 193/506 lbf/in of progressive spring rate.

Draw-tapered, diamond-cut leaves with a military wrap design add strength and reduce stress, while the pack is fully scragged and shot peened to resist sagging and fatigue over time. Re-greasable nylon interleaf pads cut friction at the leaf tips, and a flat axle seat area provides a positive, safe axle mount that reduces overall spring stress. Updated leaf separation plates and plastic-lined spring clip retainers specifically address the squeaking and noise issues found on earlier Tacoma leaf spring designs.

Lift height depends heavily on load and model year -- expect roughly 2.50 to 2.75 inches on 2005-2015 trucks and closer to 2.00 inches on 2016 and newer, with more added weight reducing the amount of lift gained. This spring does not include bushings, and longer-than-stock U-bolts are required but not included. Extended-travel rear shocks are strongly recommended alongside this upgrade, and 2005-2015 owners should also consider a driveshaft packer kit to manage driveline angle. Sold individually -- order two for a complete pair.
