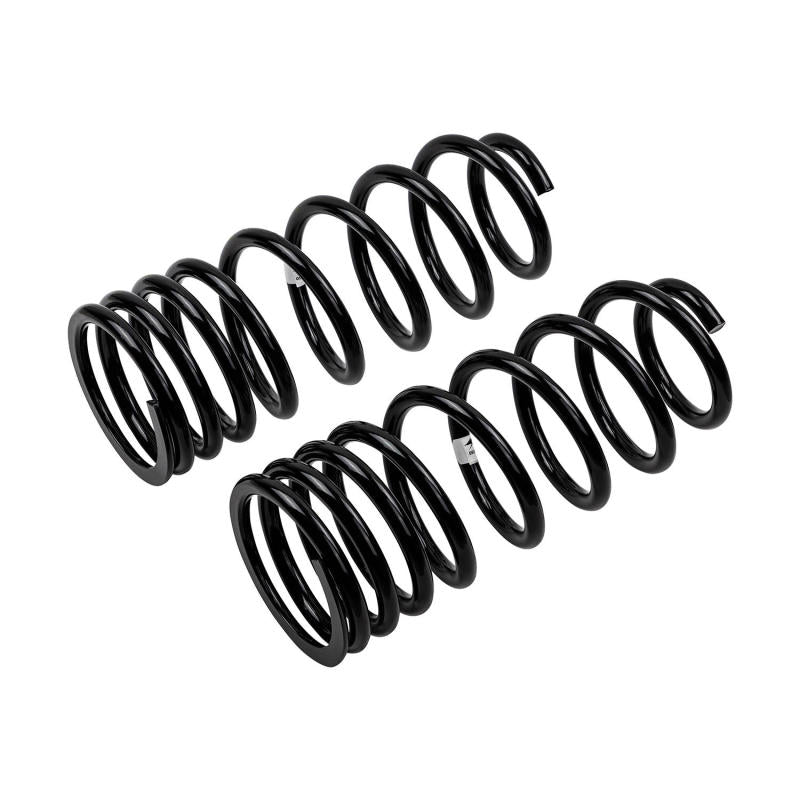

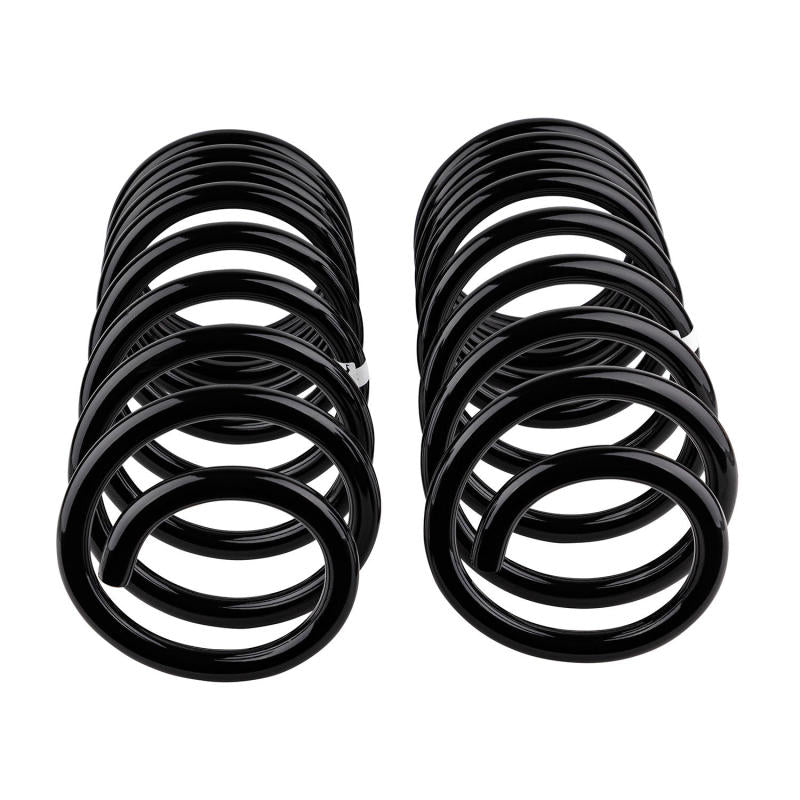

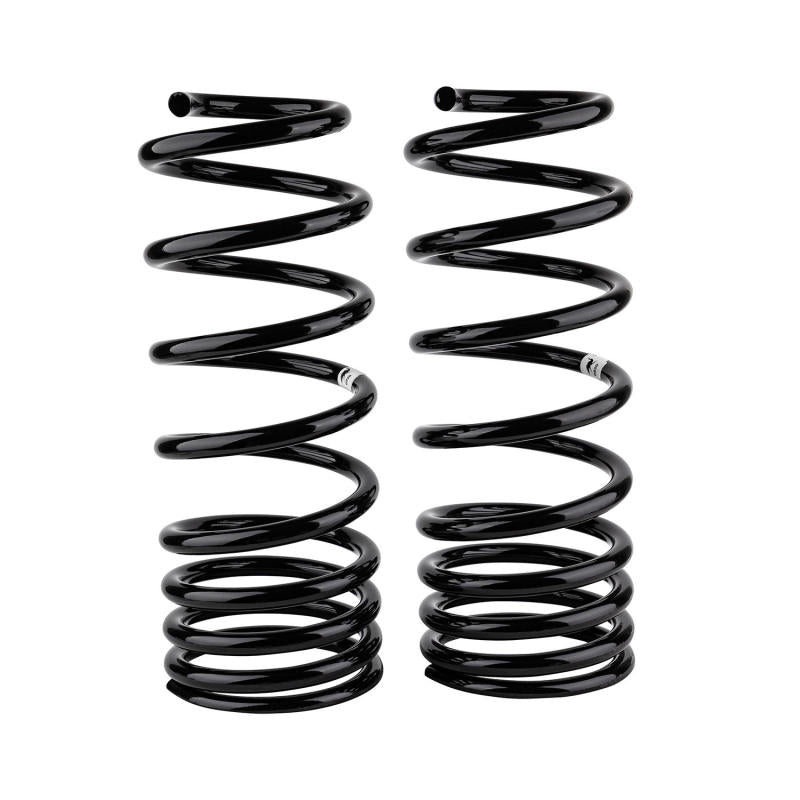

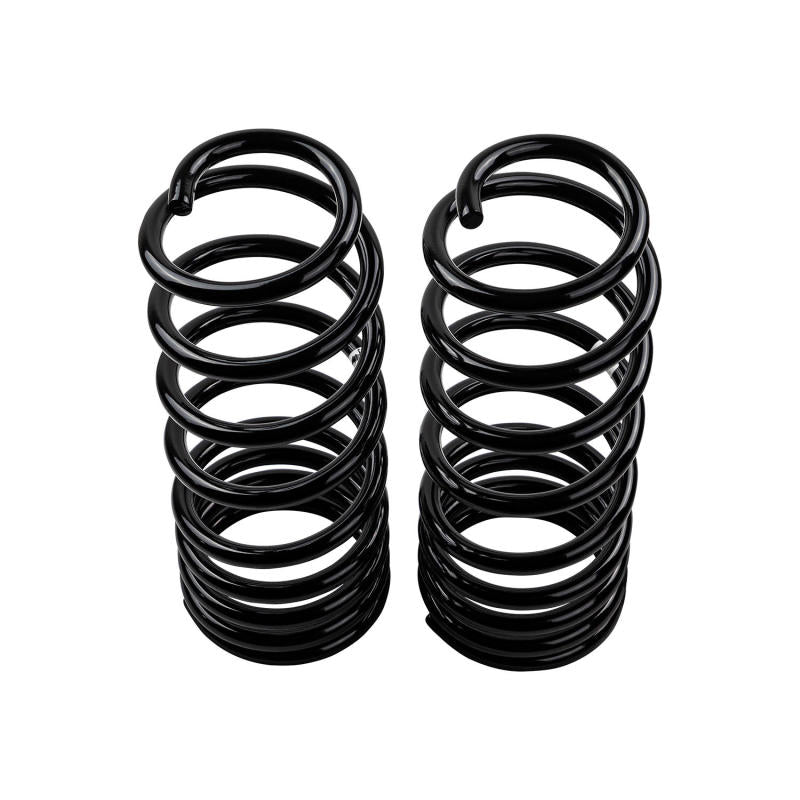

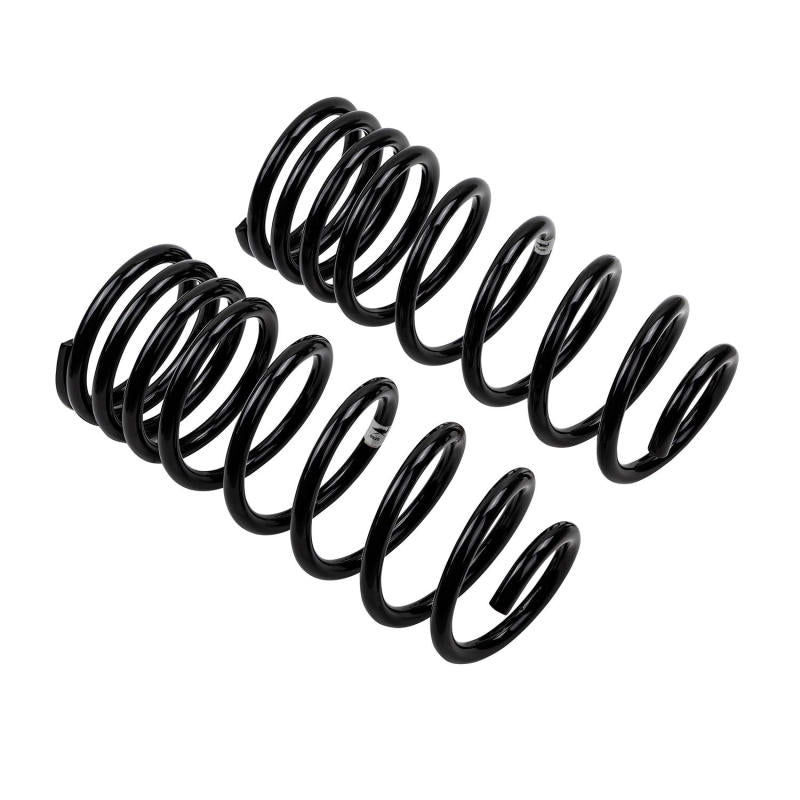

Old Man Emu 2866 Rear Coil Lift Springs for 98-07 Toyota Land Cruiser 100 Series

Vehicle Fitment

• 1998-2007 Toyota Land Cruiser (UZJ100) - 2UZ-FE 4.7L V8 - 4WD
• 1998-2007 Lexus LX470 (UZJ100) - 2UZ-FE 4.7L V8 - 4WD

Fitment Notes

• Rear axle only; sold as a pair
• Direct replacement for factory rear coil springs
• Progressive-rate spring for light to medium rear loads
• Provides ~0.5"-1.5" rear lift depending on vehicle weight
• LX470 with AHC requires AHC delete/conversion first
• Both springs identical; no left/right designation
• Trim packer: OMEJKPR10 (5mm); max 1 per spring
• Pair with OME Nitrocharger Sport or BP-51 rear shocks
• Alignment recommended after installation

Features

• Progressive variable spring rate for loaded/unloaded comfort
• Micro-alloyed spring steel for sag and corrosion resistance
• Double scragged before and after shot peening
• Formed on computer-precision mandrels
• OE-spec coil end configurations for direct fitment
• Black powder coat finish
• Designed and manufactured in Australia by ARB

Specifications

• Position: Rear
• Spring type: Progressive variable rate coil
• Spring rate: 240/300 lbs/in (42/52 N/mm)
• Free standing height: 465mm
• Estimated lift: ~0.5"-1.5"
• Finish: Black powder coat
• Warranty: 3 years / 35,000 miles
• UPC: 9319092022854
• Weight: 39.64 lbs (pair)
• Package dimensions: 20.67" L x 14.37" W x 7.48" H
• Sold as a pair

Included Components

• Rear coil springs (2)
• Reuse OE spring isolators/bushings (not included)

Product Description

The Old Man Emu 2866 is a progressive-rate rear coil spring set engineered specifically for the 1998-2007 Toyota Land Cruiser 100 Series and Lexus LX470, offering improved ride quality and moderate load-carrying capability over factory springs. The variable rate design starts at 240 lbs/in and progressively firms to 300 lbs/in under load, providing a comfortable ride when unloaded while maintaining control when carrying gear, fuel, and recovery equipment for overlanding and remote travel. With a free standing height of 465mm, these springs deliver approximately 0.5" to 1.5" of rear lift depending on vehicle weight and the condition of the original springs. Manufactured in Australia by ARB using micro-alloyed spring steel, each spring is formed on precision mandrels and double scragged to prevent sagging over time. The durable powder coat finish resists corrosion in harsh off-road environments. For a fully integrated suspension system, pair with Old Man Emu Nitrocharger Sport or BP-51 rear shocks and matching front torsion bars. Also available in heavier load ratings: OME 2863 (heavy duty, constant rate) and OME 2864 (heavy duty, higher rate) for vehicles with aftermarket bumpers, tire carriers, or frequent towing.
