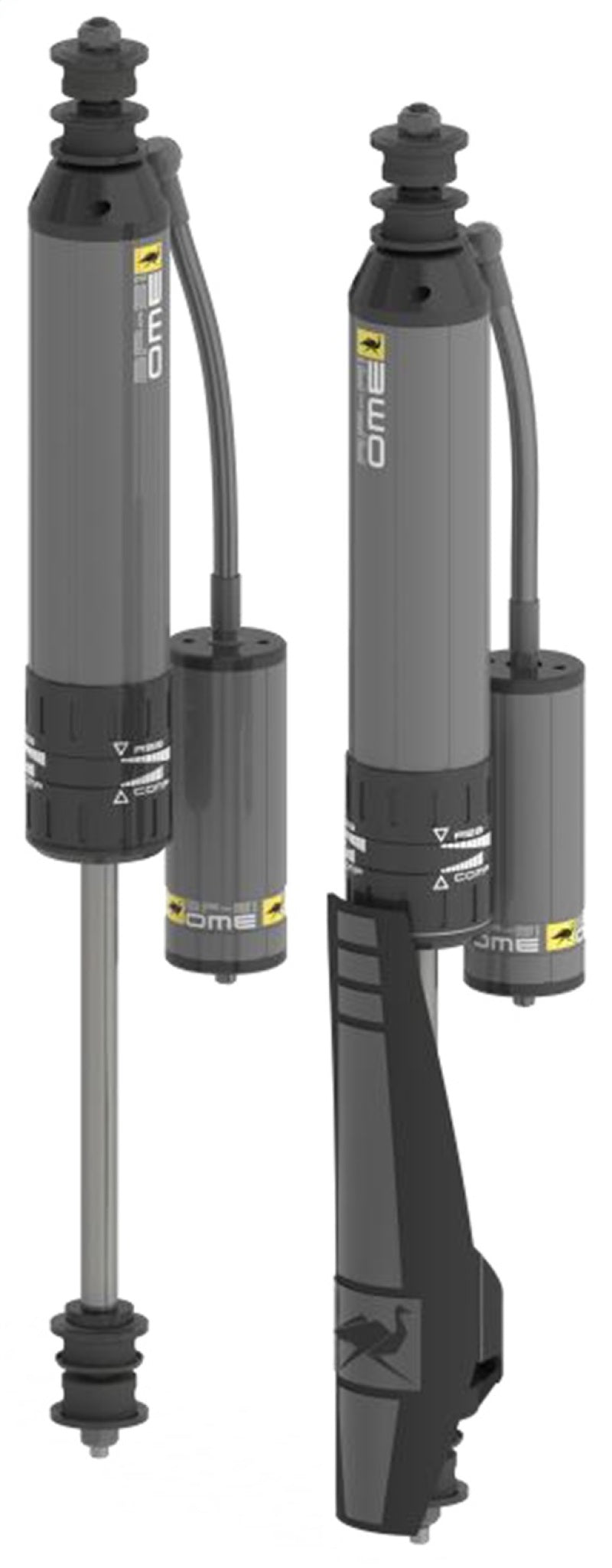

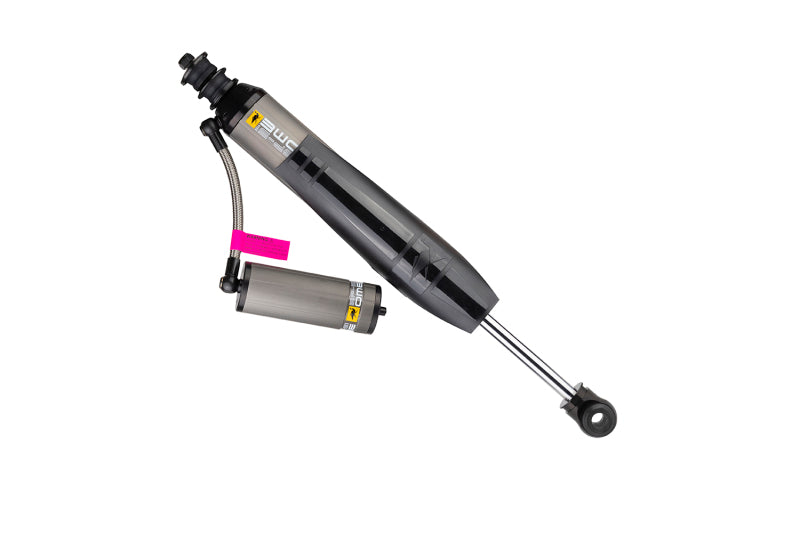

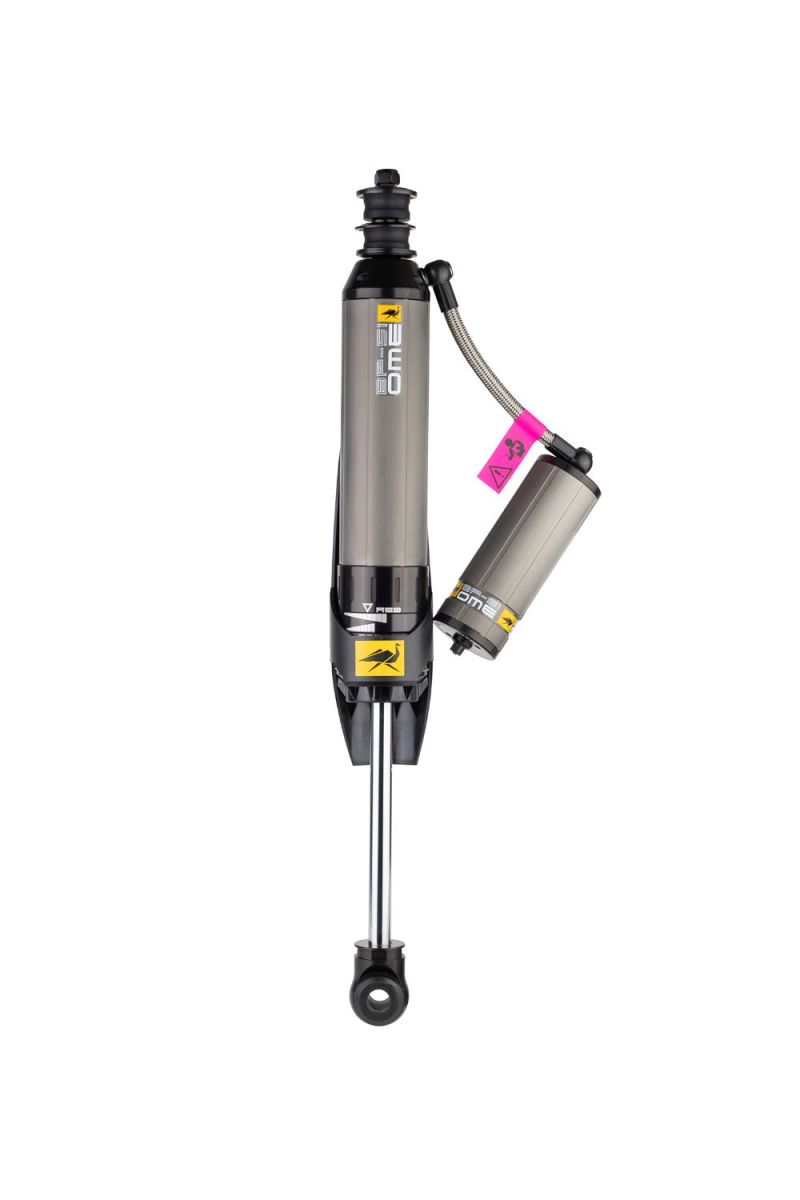

Old Man Emu BP5160025 Rear BP51 Bypass Shock for 10-24 Toyota 4Runner/FJ Cruiser

Vehicle Fitment

• 2003-2024 Toyota 4Runner (4WD, all trims)
• 2003-2010 Toyota Land Cruiser Prado 120 Series (4WD)
• 2010-2022 Toyota Land Cruiser Prado 150 Series (4WD)
• 2010-2014 Toyota FJ Cruiser (4WD)
• 2003-2010 Lexus GX470 (4WD)
• 2010-2022 Lexus GX460 (4WD)

Fitment Notes

• Rear application only--front requires BP5160011 or matching front BP-51
• Supports 0-2" rear lift with VM80010010 fit kit
• Not compatible with 2WD or dual-rear-wheel (DRW) vehicles
• Not optimized for OEM rear springs--may bottom out if used without matched spring kit

Features

• Position-sensitive bypass damping with 51 mm bore & remote reservoir
• User-adjustable compression & rebound via external knobs
• Constructed of 6061-T6 aluminum, Type-III hard anodized

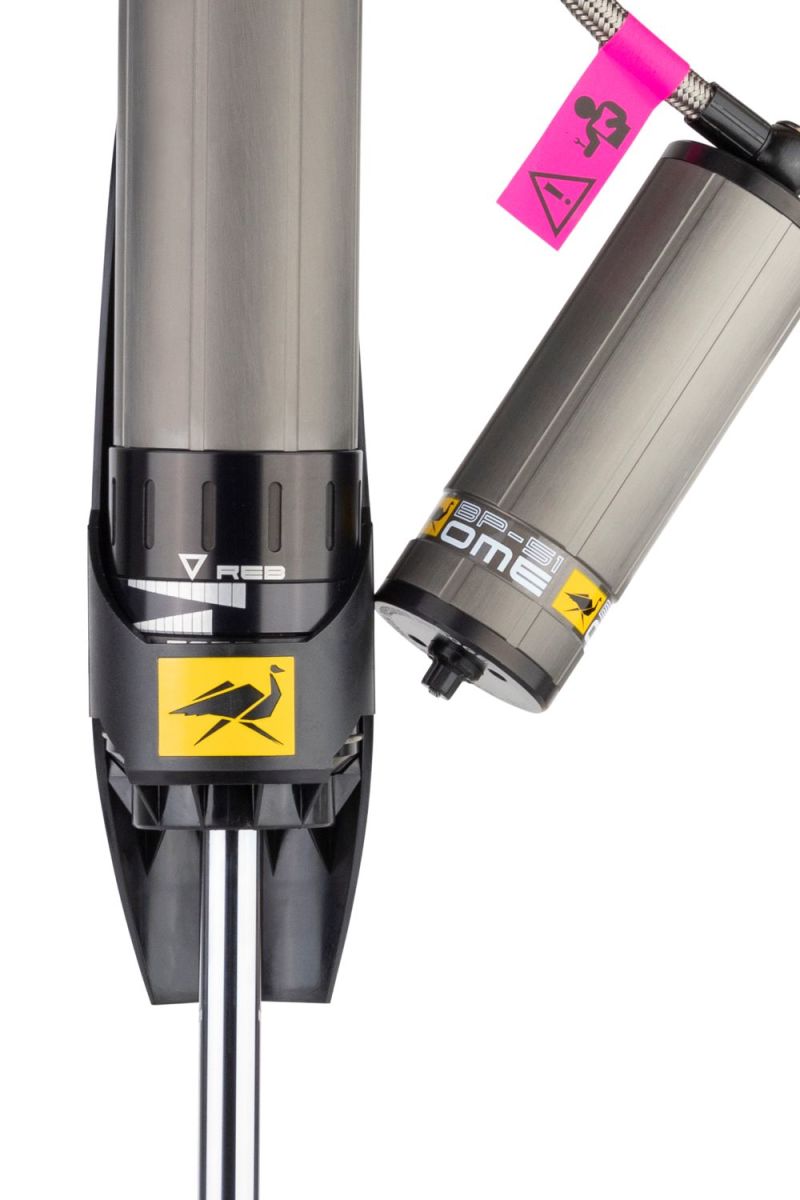

• Polyethylene shaft guard and rubber bushings resist trail debris
• Rebuildable and re-valvable design for long-term serviceability
• Provides smooth ride height damping and firm end-of-travel control
• Bolt-on fitment--no modifications required
• Tested and developed under Australian off-road conditions

Specifications

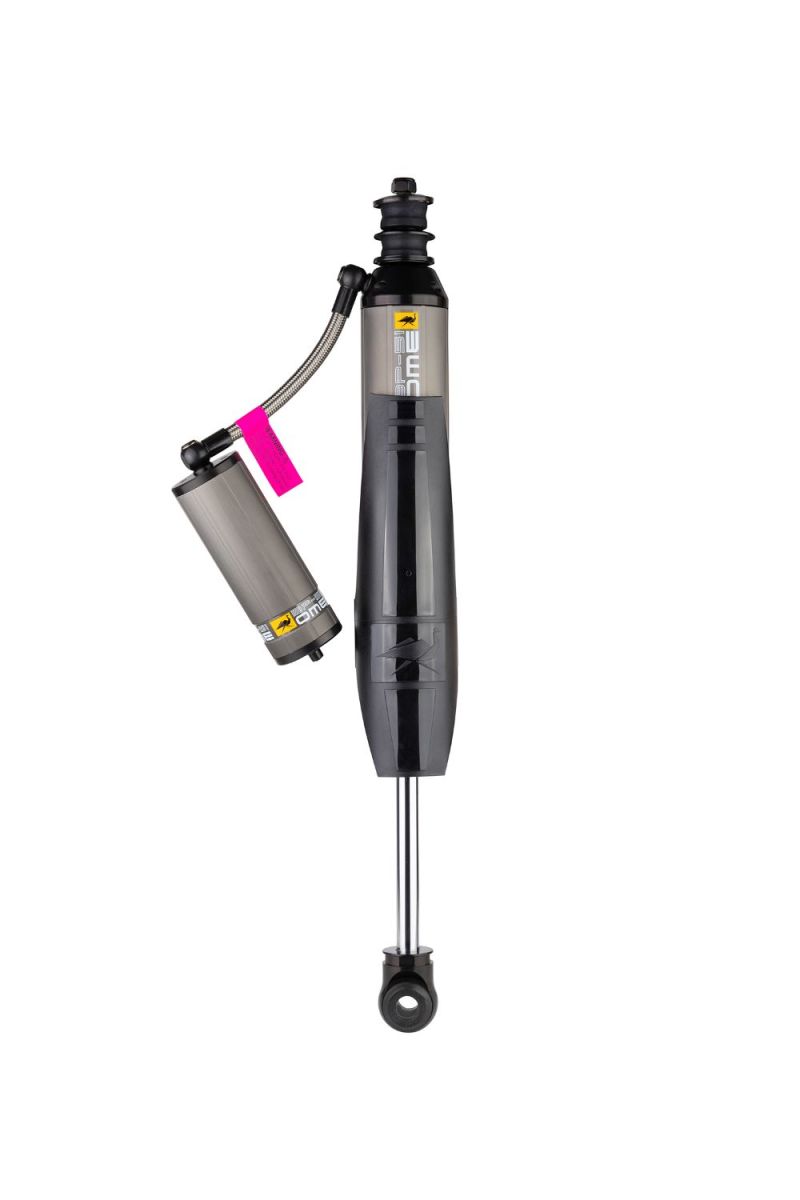

• Position: Rear shock absorber with remote reservoir
• Bore diameter: 51 mm
• Extended length: 607.5 mm
• Compressed length: 385 mm
• Travel: ~222.5 mm
• Material: 6061-T6 aluminum body
• Finish: Type-III hard anodizing
• Warranty: 3-year (Old Man Emu)

Included Components

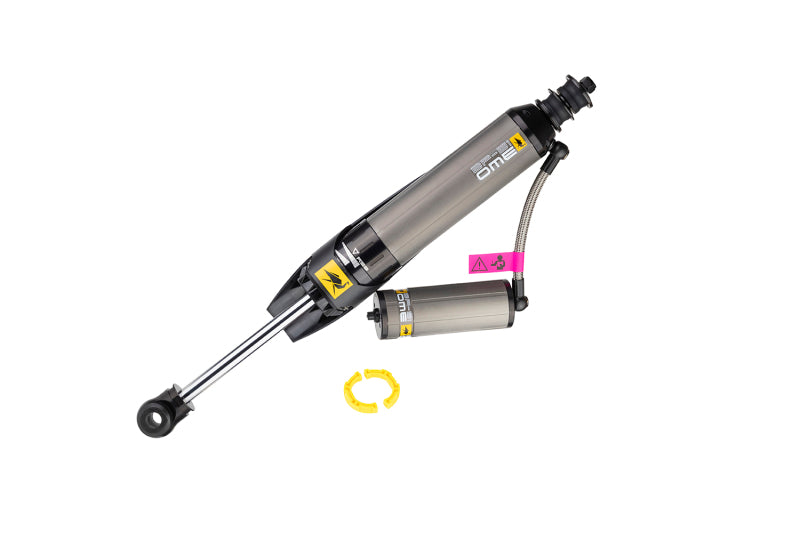

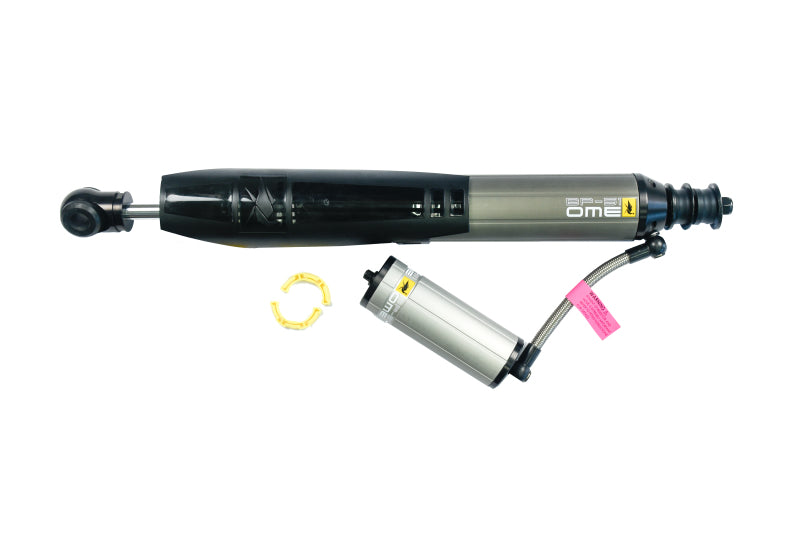

• 1x ARB BP5160025 rear BP-51 bypass shock absorber
• 1x Remote reservoir (pre-attached)

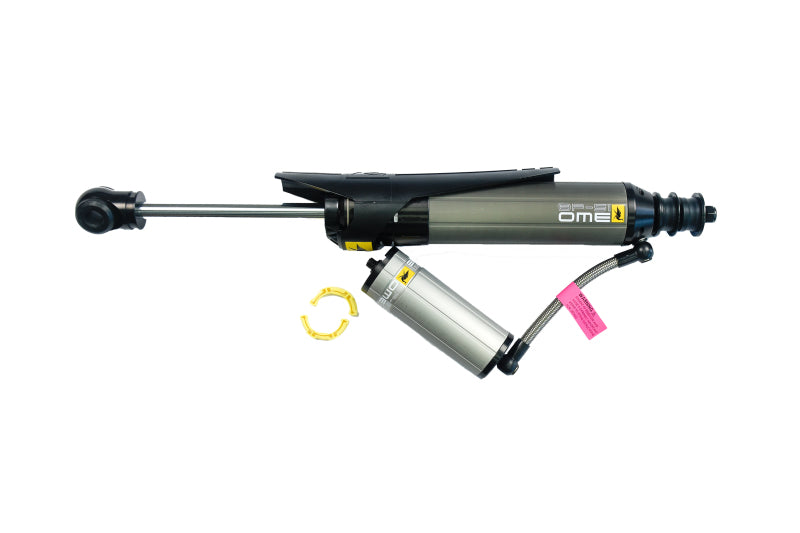

• 1x Pre-installed polyethylene shaft guard

Product Description

The ARB BP5160025 BP-51 rear bypass shock is engineered for ultimate off-road control and comfort across a wide range of Toyota and Lexus 4WD platforms--including 4Runner, Prado, GX, and FJ Cruiser. Featuring a 51 mm bore, remote reservoir, and internal bypass technology, this shock delivers smooth ride quality with firm support near end-of-travel to prevent harsh bottoming.

CNC-machined from aircraft-grade 6061-T6 aluminum and Type-III anodized for rust resistance, this shock is fully rebuildable and re-valvable. With external knobs for on-vehicle compression and rebound tuning, it adapts to different loads and terrains. Designed for up to 2" rear lift (with VM80010010 kit) and including a fit kit, it's a bolt-on upgrade that maintains factory-level mounting. Backed by a 3-year Old Man Emu warranty, it offers premium durability and performance.
