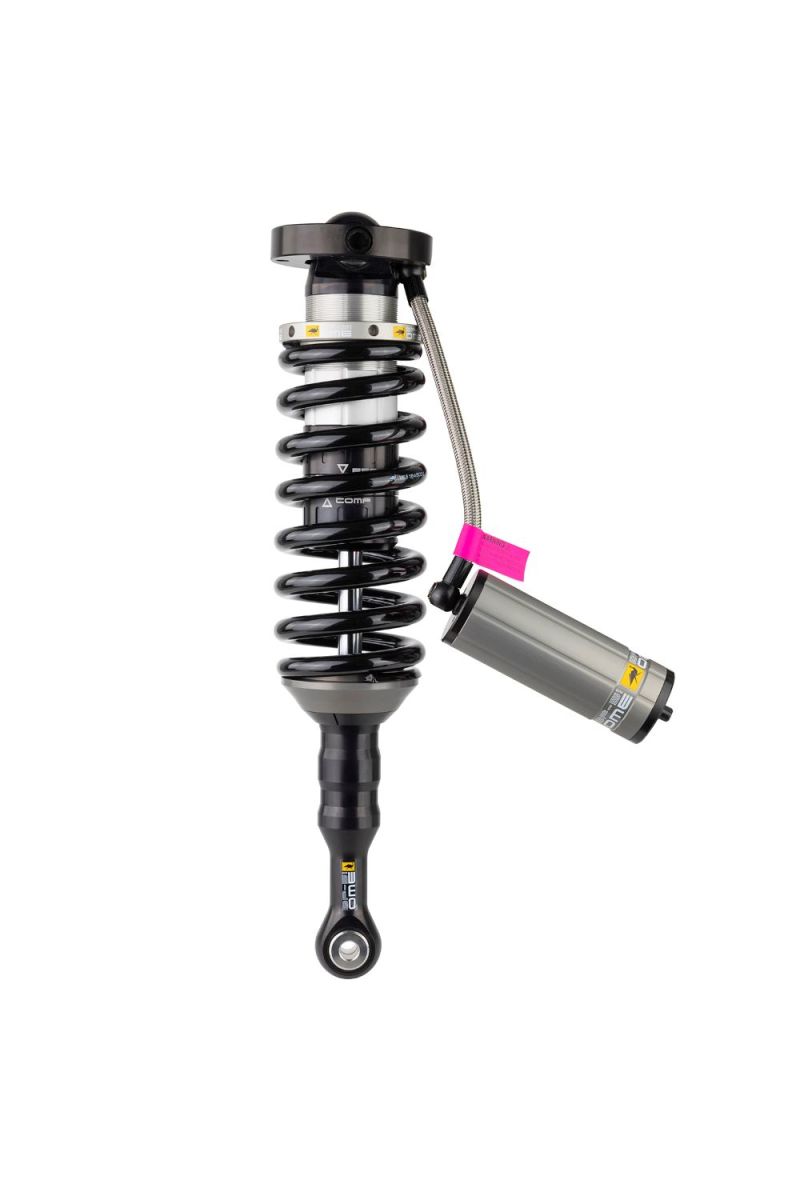

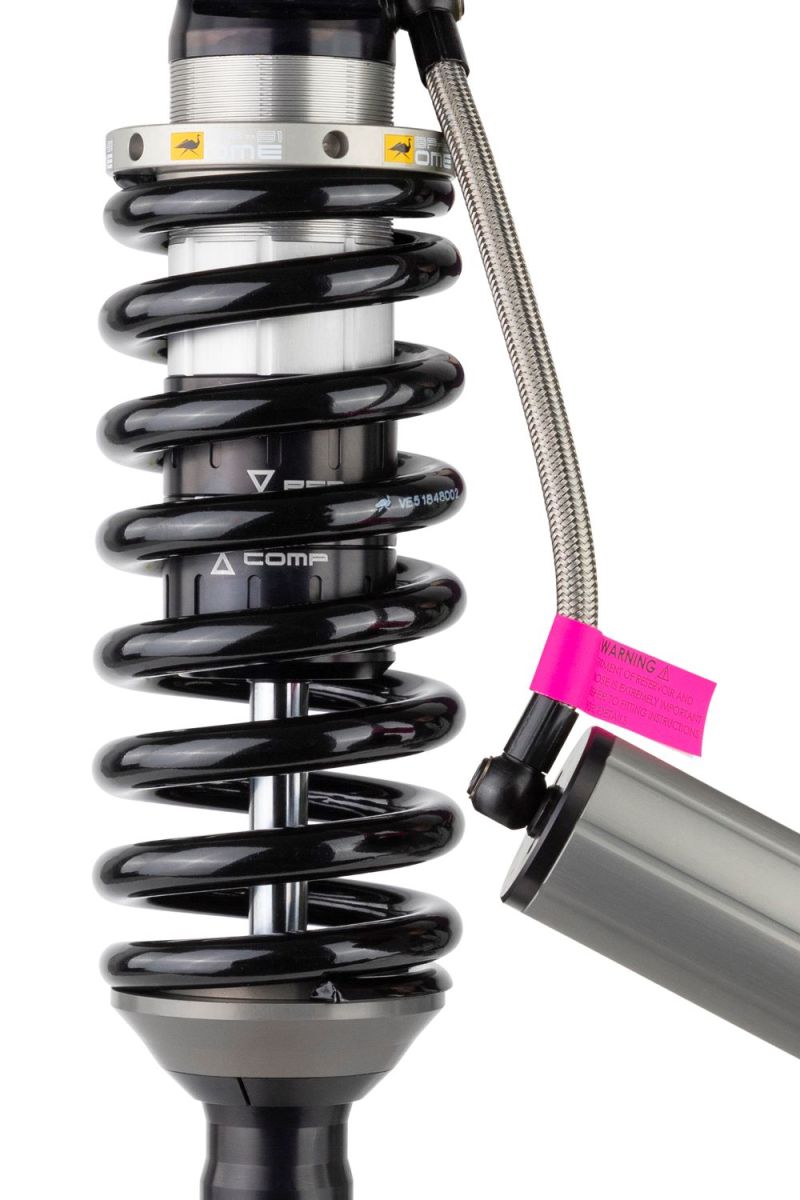

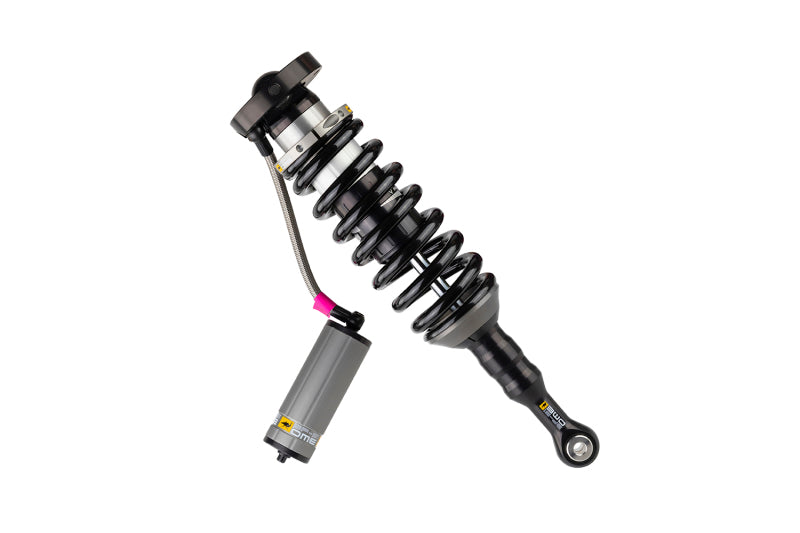

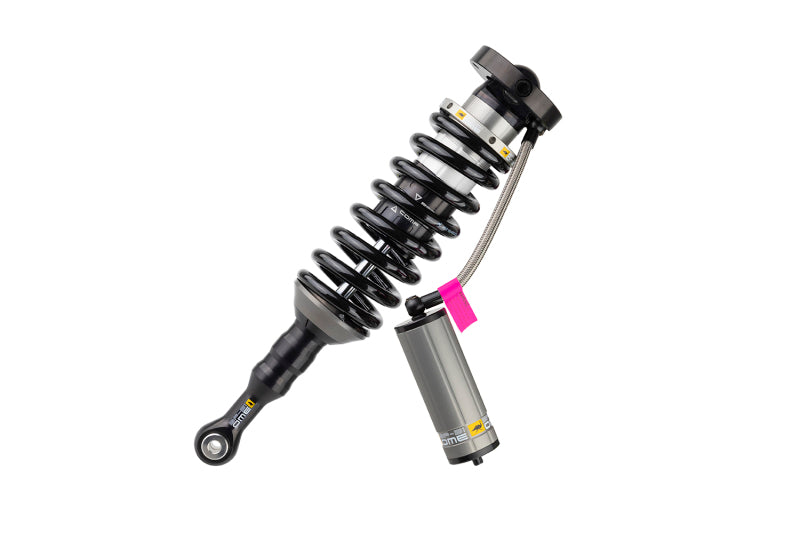

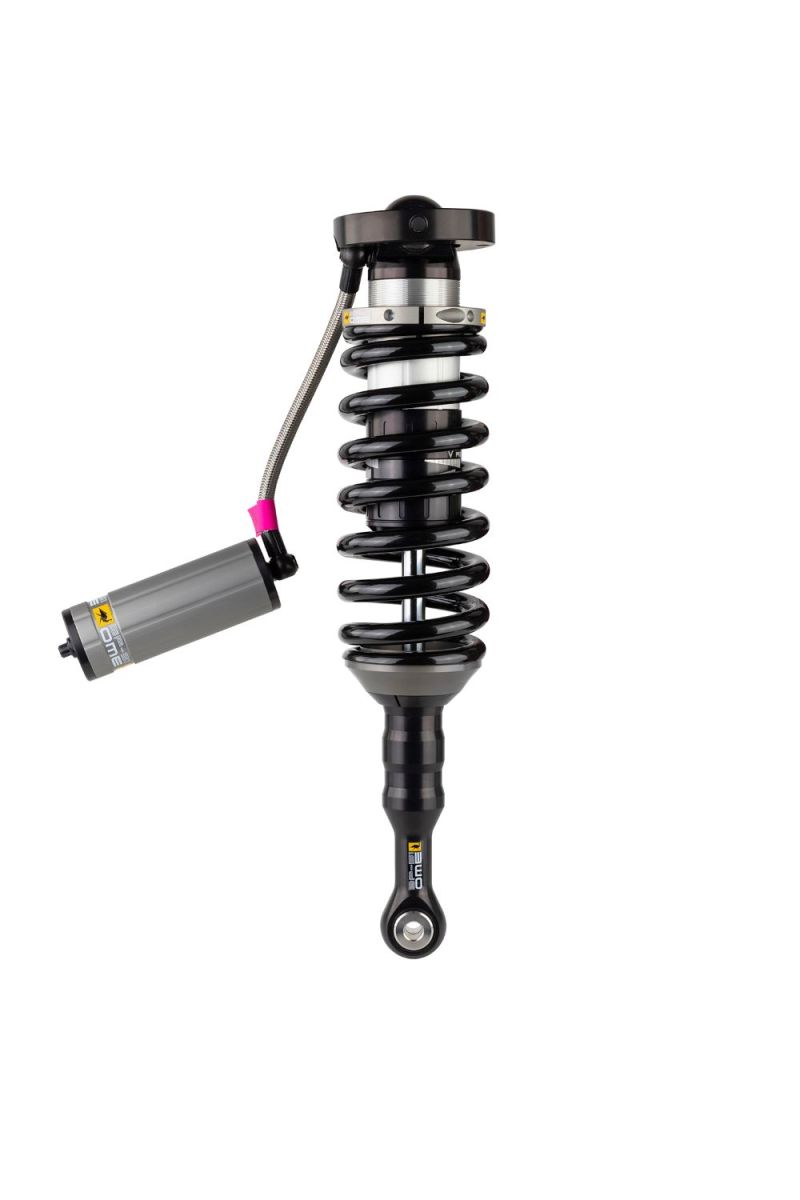

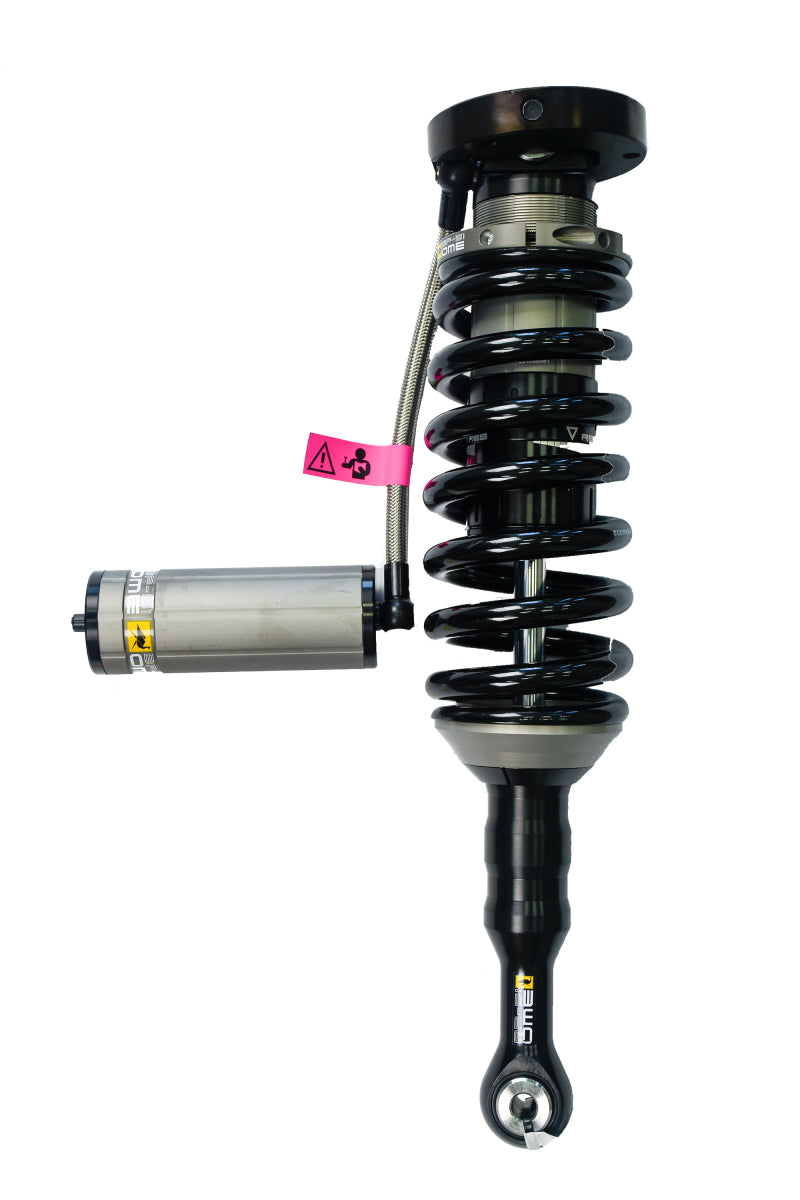

ARB BP5190002L Front Left BP-51 Coilover for 10-23 Toyota 4Runner/FJ Cruiser 4WD

Vehicle Fitment

• 2010-2023 Toyota 4Runner (All Trims, 4WD, 4.0L V6)
• 2010-2014 Toyota FJ Cruiser (All Trims, 4WD, 4.0L V6)
• 2003-2009 Toyota Prado 120 Series (LWB & SWB, 4WD, 4.0L V6)
• 2010-2023 Toyota Prado 150 Series (LWB, 4WD, 4.0L V6)

Features

• Internal bypass technology for position-sensitive damping
• Independent on-vehicle adjustment of compression and rebound
• 51mm bore diameter for increased oil volume and heat dissipation
• Remote reservoir design enhances cooling performance
• Constructed from 6061 T6 aluminum with Type III hard anodized finish
• Polyethylene shaft guard protects against debris and impacts
• Direct bolt-on installation with no vehicle modifications required
• Designed and tested in Australia's harshest off-road conditions

Specifications

• Part Number: BP5190002L
• Position: Front Left (Driver Side)
• Extended Length: 545mm
• Compressed Length: 439mm
• Material: 6061 T6 aluminum body with rubber bushings
• Finish: Grey anodized
• Adjustability: 10 levels each for compression and rebound damping
• Weight: Approximately 11.02 lbs (5 kg)
• Warranty: 3 years or 37,000 miles

Included Components

• 1 x ARB BP5190002L Front Left BP-51 Coilover
• 1 x Remote reservoir with mounting hardware
• Installation instructions

Product Description

The ARB BP5190002L Front Left BP-51 Coilover is engineered to enhance the off-road performance of your Toyota 4Runner, FJ Cruiser, or Prado. Featuring advanced internal bypass technology, this coilover delivers exceptional damping control by adjusting to the terrain and driving conditions, ensuring a comfortable ride on highways and superior handling off-road.

Constructed from high-quality 6061 T6 aluminum, the BP-51 coilover offers durability and resistance to corrosion. Its remote reservoir design increases oil capacity, reducing heat buildup during prolonged use. With 10 levels of compression and rebound adjustability, you can fine-tune the suspension to match your driving preferences and load conditions.

Designed for easy installation, the BP5190002L mounts directly to factory locations without the need for modifications. Whether you're navigating city streets or tackling rugged trails, this coilover provides the reliability and performance that off-road enthusiasts demand.
