ARB OMEGS4 OME Greasable Shackle Kit Front Toyota Hilux Pickup 1979-1985 4Runner

Vehicle Fitment

• 1984-1985 Toyota 4Runner (DLX, SR5, 2.4L I4, 2WD/4WD)
• 1979-1985 Toyota Pickup (Base, DLX, SR5, 2.2L I4 / 2.4L I4 Gas, 2WD/4WD)
• 1981-1985 Toyota Pickup DLX (2.2L I4 / 2.4L I4 Diesel)
• 1984-1985 Toyota Pickup DLX / LN56 (2.4L I4 Diesel)
• 1985 Toyota Pickup DLX Turbo (2.4L I4 Diesel Turbo)
• 1985 Toyota Pickup SR5 Turbo (2.4L I4 Gas Turbo)
• Toyota Hilux (RN/LN series, applicable 1979-1985 gas and diesel variants)

Fitment Notes

• Front leaf spring shackle kit - designed for the front shackle position on applicable Toyota Hilux / early-gen Pickup and 4Runner platforms
• Intended for use with Old Man Emu leaf springs requiring periodic bushing lubrication
• For rear shackle applications on the same platform, see OMEGS3; for later 1986-1990 models, see OMEGS3

Features

• Unique bolt-together assembly design eliminates out-of-angle shackle pin to side plate problems for easier, more reliable installation
• Each shackle pin features two grease outlet holes for maximum grease coverage between pin and spring bushing
• Enables on-vehicle lubrication without removing the shackles - greatly reducing maintenance time and effort
• Heat-treated pins withstand heavy loads and demanding off-road conditions without deformation
• Zinc-plated side plates provide corrosion resistance for extended service life
• Increases leaf spring bushing longevity and improves front suspension ride quality and stability

Specifications

• Part Number: OMEGS4
• Position: Front
• Pin Material: Heat-Treated Steel (with 2 grease outlet holes per pin)
• Side Plate Finish: Zinc-Plated
• UPC: 881348006011
• Warranty: 1 Year

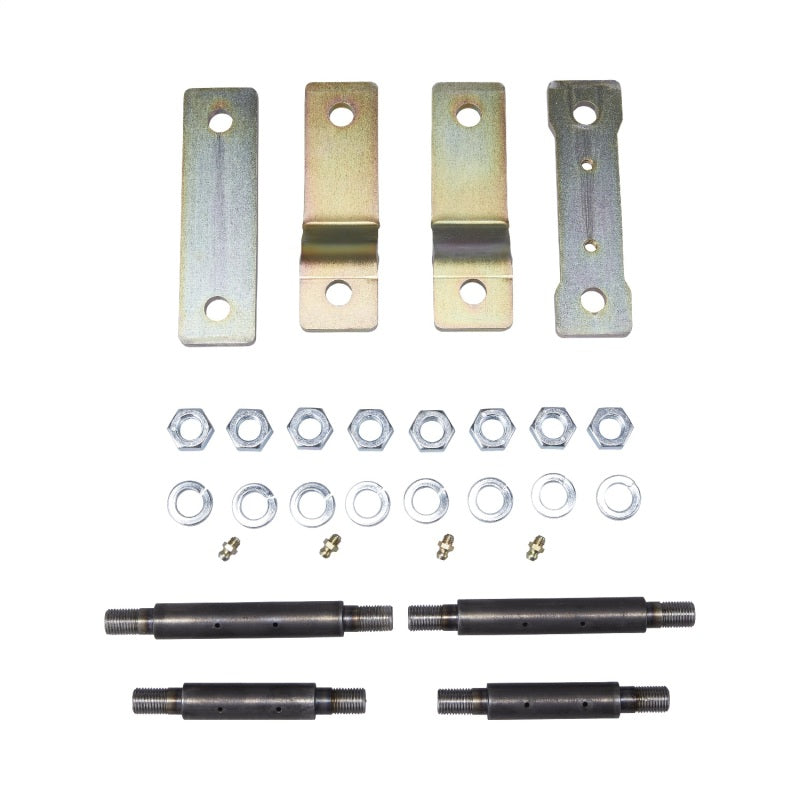

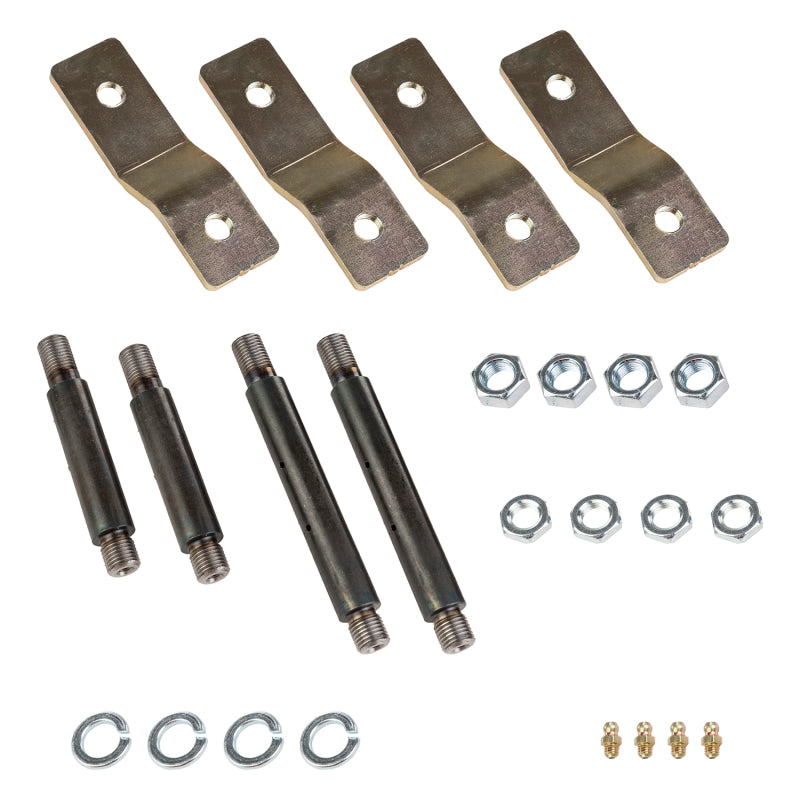

Included Components

• 2x Zinc-plated greasable shackle side plates
• 2x Heat-treated greasable shackle pins (with dual grease outlet holes)
• 1x Hardware and fastener pack

Product Description

The ARB OMEGS4 is a front greasable leaf spring shackle kit designed for 1979-1985 Toyota Pickups, 1984-1985 Toyota 4Runners, and compatible Toyota Hilux models running Old Man Emu leaf springs. Factory shackles and fixed pins corrode over time, destroying the bushings that stabilize front axle leaf spring movement - leading to imprecise handling, vibration, and premature suspension wear. The OMEGS4 replaces the OE hardware with a fully serviceable design that allows complete on-vehicle lubrication of the pin-to-bushing interface without disassembly.

Each heat-treated pin features two grease outlet holes for thorough, even coverage throughout the bushing contact area. The bolt-together side plate design eliminates the common out-of-angle pin alignment issues found with standard shackle hardware, ensuring consistent loading across the leaf spring eye. Zinc-plated side plates resist corrosion in all-weather and off-road conditions. This kit is a recommended maintenance or upgrade replacement whenever OME Dakar or other OME front leaf springs are installed on applicable Toyota platforms.
