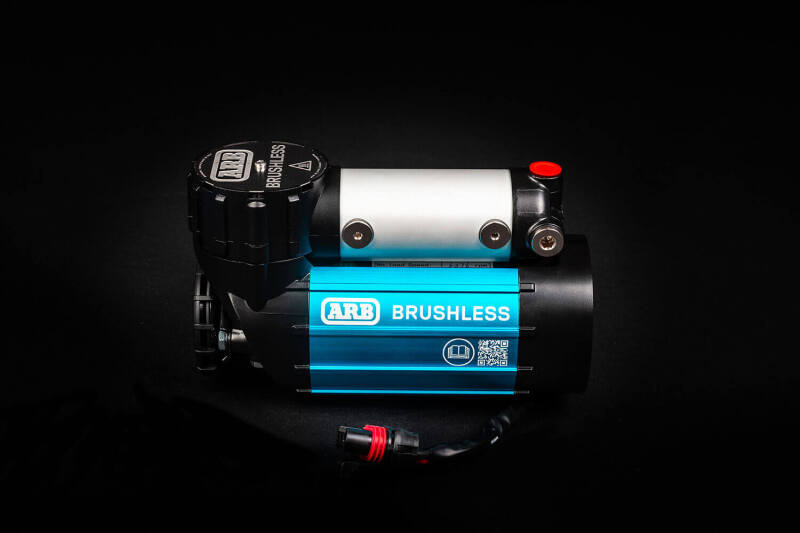

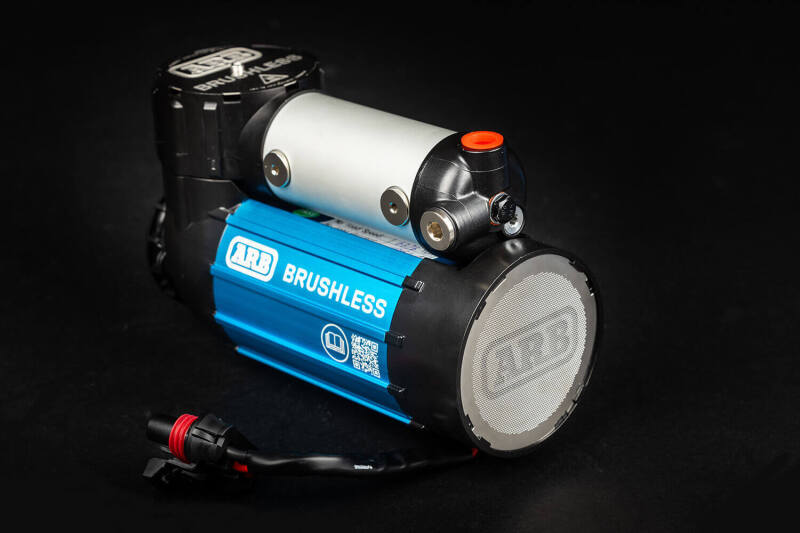

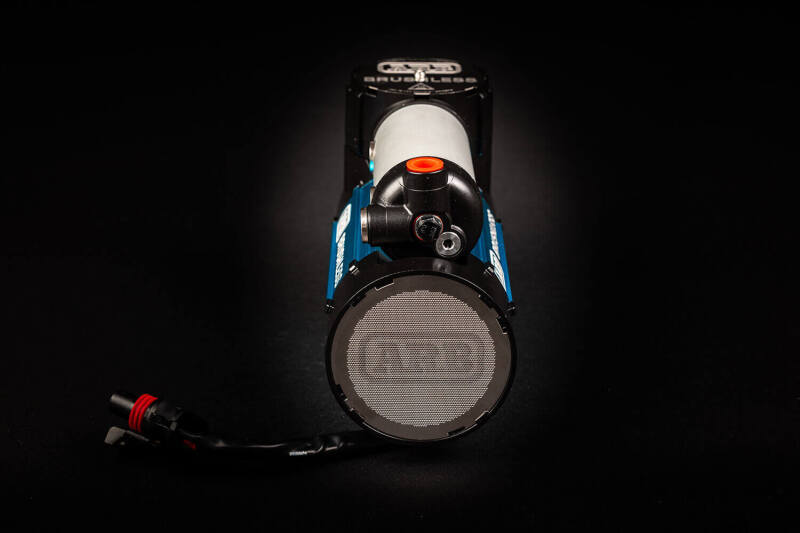

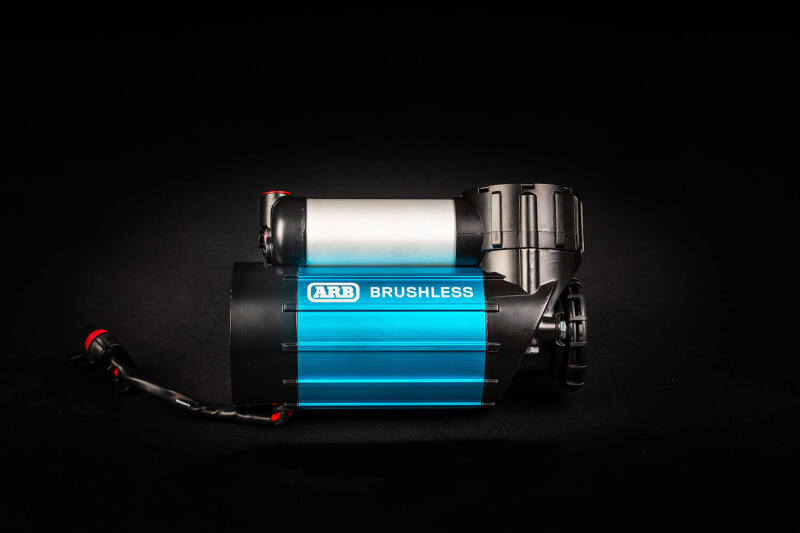

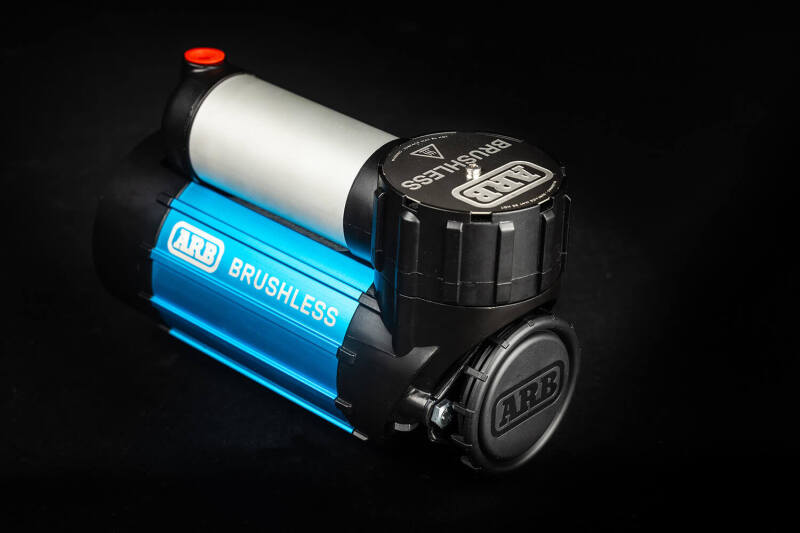

ARB CKBLA12 Brushless Single Motor Onboard Air Compressor Universal 12V 45Amp

Vehicle Fitment

• Universal -- 12V DC system compatible with ARB Air Lockers, existing ARB air accessories, and hose kits

Fitment Notes

• 12V applications only -- do not order for 24V systems, see ARB's separate 24V-specific listing
• Onboard mounted, single motor design
• Highly configurable mounting orientation for tight installation locations
• Requires drilling 4 mounting holes for bracket installation

Features

• Brushless electric motor
• Built-in active cooling fan
• Electronic speed control maintains performance across pressure and temperature ranges
• 50% increase in air output over ARB's prior market-leading brushed compressor
• Cutting-edge smart technology
• Compatible with ARB's full existing range of air accessories, hose kits, and Air Lockers
• Multiple articulation configurations for optimal port access and appearance

Specifications

• Design: Onboard
• Motor type: Brushless, single
• Voltage: 12V DC
• Max amperage: 45 amps
• Dimensions: 5.5" x 8.3" x 3.5"
• Weight: 6.8 lbs.
• Tank included: No

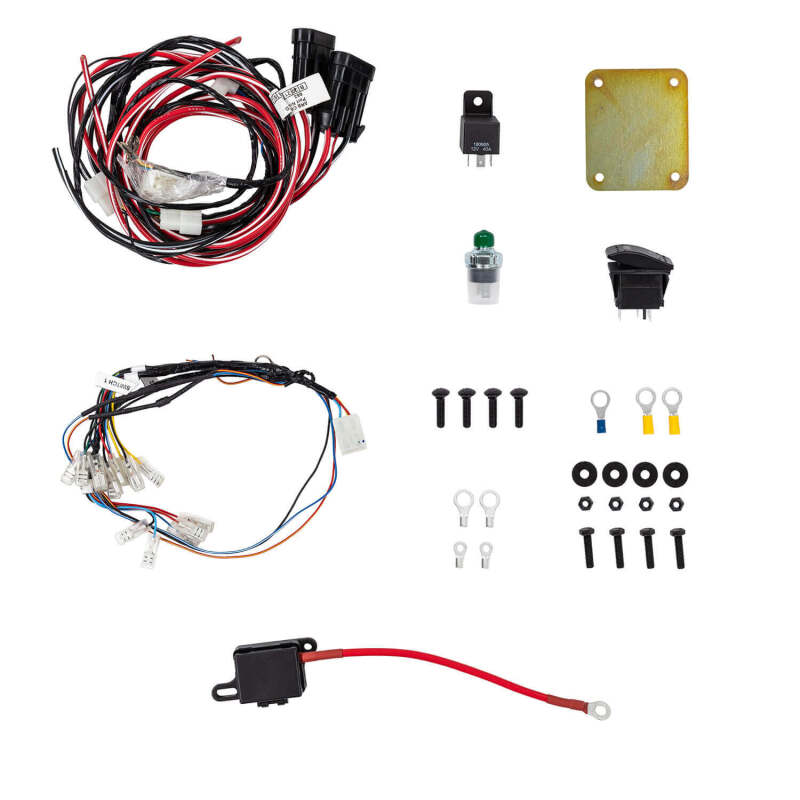

Included Components

• 1x Brushless single air compressor
• 1x Mounting bracket
• 1x Wiring harness
• 1x Rocker switch with cover
• 1x Air filter
• 1x Set of mounting hardware and fittings

Product Description

The ARB CKBLA12 is a brushless single motor onboard 12V air compressor, delivering a 50% increase in air output over ARB's previous market-leading brushed compressor. A brushless electric motor paired with a built-in active cooling fan keeps performance consistent even during extended inflation sessions, while electronic speed control maintains optimum output across varying pressure and ambient temperature conditions.

Fully compatible with ARB's existing range of air accessories, hose kits, and Air Lockers, this compressor makes upgrading an existing air system straightforward without needing to replace surrounding components. The unit is highly configurable to suit difficult mounting locations -- before drilling the four mounting holes, the compressor can be articulated in multiple ways to find the best fit for available space, port access, and finished appearance.

This is the 12V version specifically -- a separate 24V-specific listing exists for that voltage class, and this unit should not be ordered for 24V applications. Compact at just 5.5" x 8.3" x 3.5" and 6.8 lbs., this brushless compressor is built for overlanders and off-road enthusiasts who want faster tire inflation and dependable air supply for lockers and accessories without sacrificing mounting flexibility.
