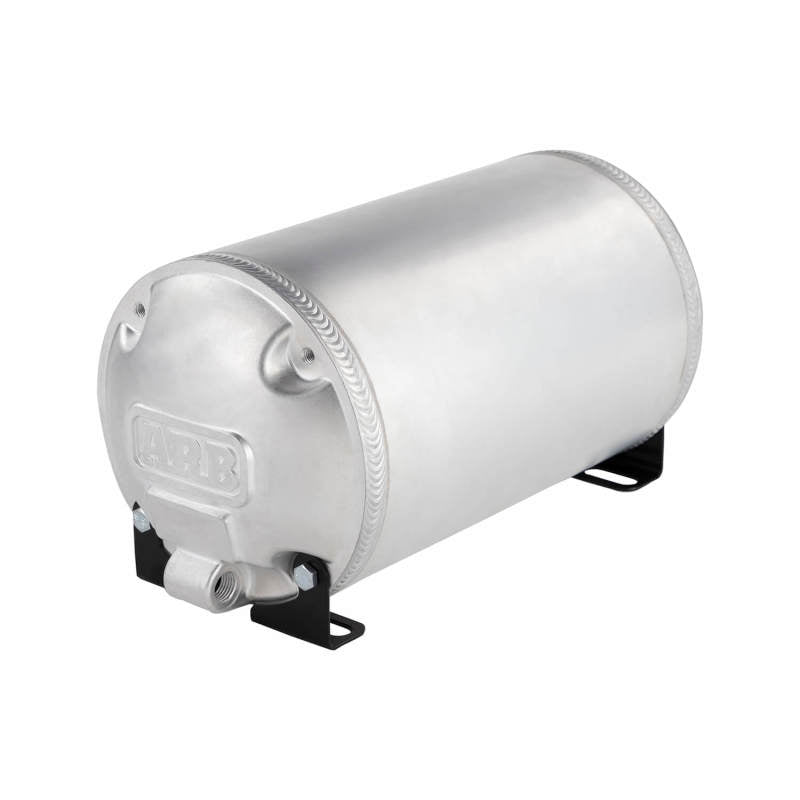

ARB 171507 Aluminum Air Tank 1-Gallon for Universal Onboard Air Systems

Vehicle Fitment

• Universal Fitment -- Compatible with ARB air compressors (CKMA12, CKMA24, CKMTA12, CKMTA24)

Features

• 1-gallon (4-liter) capacity for rapid tire inflation and air tool operation
• Rated to a maximum working pressure of 150 psi (1034 kPa)
• Forged aluminum end caps with TIG-welded extruded aluminum body
• 50% lighter than equivalent steel tanks, enhancing vehicle efficiency
• Horizontal or vertical mounting options with universal brackets included
• Four ¼" NPSC ports with two JIC-4 male fittings and two port plugs included
• Daisy-chain compatible for increased air storage capacity
• Low port positioning minimizes fluid retention by facilitating moisture drainage

Specifications

• Part Number: 171507
• Capacity: 1 gallon (4 liters)
• Material: Forged aluminum end caps, extruded aluminum body
• Working Pressure: 150 psi (1034 kPa)
• Ports: Four ¼" NPSC ports; includes 2x JIC-4 male fittings and 2x port plugs
• Mounting Options: Horizontal or vertical with universal brackets
• Dimensions: Approximately 13.4" L x 6" W x 6" H
• Weight: Approximately 4.1 lbs
• Warranty: 3-year limited warranty

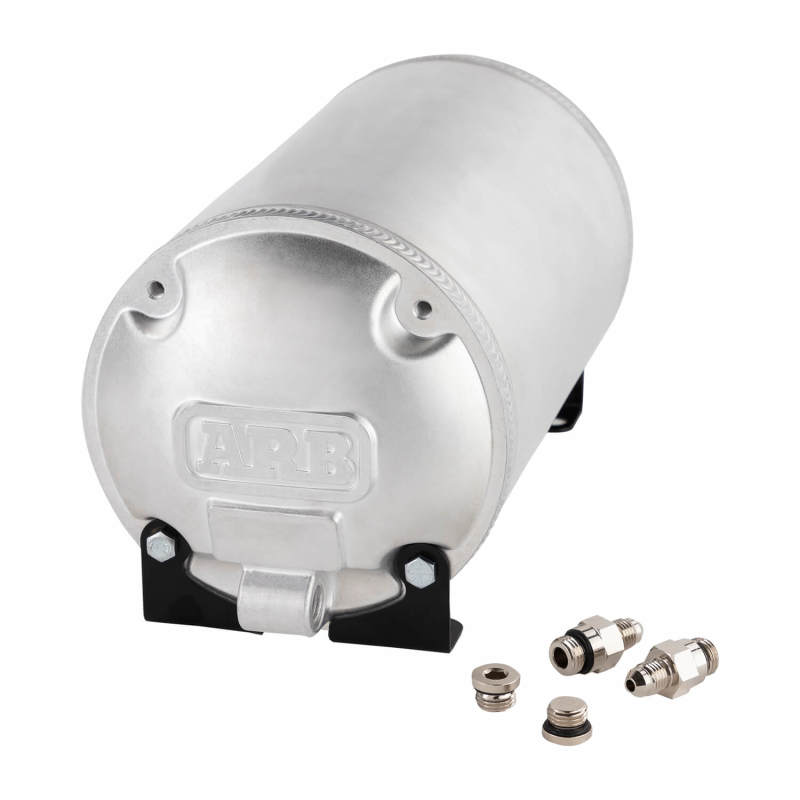

Included Components

• 1 x 1-gallon aluminum air tank (171507)
• 2 x JIC-4 male fittings
• 2 x ¼" NPSC port plugs
• 2 x Universal mounting brackets
• 4 x M6 x 10mm hex bolts
• Installation instructions

Product Description

The ARB 171507 1-Gallon Aluminum Air Tank is engineered to enhance the performance of your onboard air system. Designed for universal fitment, it seamlessly integrates with ARB air compressors, including models CKMA12, CKMA24, CKMTA12, and CKMTA24. Its 1-gallon capacity ensures rapid tire inflation and efficient operation of most air-powered tools, making it an essential component for off-road enthusiasts and professionals alike.

Constructed with forged aluminum end caps and a TIG-welded extruded aluminum body, this air tank offers superior strength while being 50% lighter than comparable steel tanks. Its versatile design allows for horizontal or vertical mounting, and the included universal brackets facilitate easy installation. The tank features four ¼" NPSC ports, with two JIC-4 male fittings and two port plugs included, providing flexibility for various air system configurations. Additionally, the low port positioning aids in moisture drainage, minimizing fluid retention and prolonging the life of your air system components.
