ANZO 111307 Chrome Projector Headlights Plank Style 2010-16 Cadillac SRX Halogen

Vehicle Fitment

• 2010-2016 Cadillac SRX - All Trims (Base, Luxury, Performance, Premium); equipped with factory halogen headlights ONLY

Fitment Notes

• Fits halogen-equipped 2010-2016 Cadillac SRX models ONLY - does NOT fit SRX models equipped with factory HID (High-Intensity Discharge) headlights; verify your vehicle's factory headlight type before ordering
• These headlights use different bulbs than the factory SRX halogen units - low beam is H7, high beam is H1; both bulbs are halogen and are included in the kit, but they are not the same as the OEM bulb specifications
• Plug-and-play installation using the factory wiring harness connectors and stock mounting locations - no drilling, cutting, or wiring modifications required; installation requires bumper cover removal on the SRX to access the headlight assemblies
• Headlight aim adjustment should be performed after installation using the factory adjustment screws to ensure proper beam pattern on the road surface
• The dust caps on the low beam housing are sealed tightly - applying lithium grease to the dust cap gaskets before installation is recommended to ease future bulb access

Features

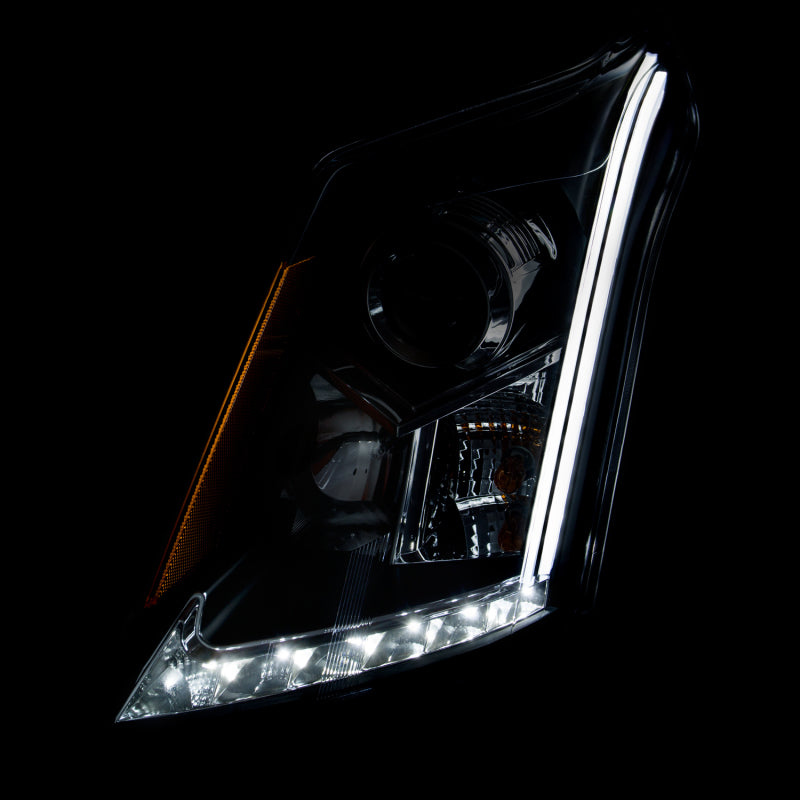

• Plank-style LED daytime running light / accent - horizontal LED strips illuminate across the lower portion of each headlight assembly, creating a distinctive layered light signature that replaces the standard SRX parking light appearance with a modern, upscale aesthetic; the LED planks operate independently of the main headlight beams
• Projector lens optics - the projector beam provides a more tightly focused, controlled beam pattern compared to the factory reflector-style halogen headlights on the standard SRX, improving forward road illumination and reducing uncontrolled scatter toward oncoming drivers
• Chrome housing - the electroplated chrome inner reflector and housing surround provides a polished, premium appearance visible through the clear lens, complementing the SRX's existing chrome trim elements
• Clear polycarbonate lens - the optically clear outer lens exposes the projector optic, LED plank, and chrome housing for a high-contrast visual depth that differentiates these headlights from the factory assembly
• OEM-style weather-tight wiring connectors and harness - factory-matched plugs ensure moisture-resistant electrical connections for reliable operation across all weather conditions
• Sealed housing construction - tested in thermohygrometer (temperature and humidity chamber) and rain-resistance environments; engineered to maintain performance through extreme temperature cycles and moisture exposure
• CAD/CAM-engineered dimensional accuracy - designed to factory mounting point specifications, validated on three-dimensional testing equipment to ensure flush, rattle-free fitment against SRX body panels and grille surround
• DOT compliant to SAE standards - 100% street legal
• Backed by ANZO's 1-year limited warranty against manufacturer defects

Specifications

• Part Type: Projector headlight assemblies with LED plank-style DRL accent
• Housing Color: Chrome
• Housing Material: Plastic
• Lens Color: Clear
• Lens Material: Polycarbonate
• DRL/Accent Type: LED plank style (horizontal strip)
• Low Beam Bulb: H7 halogen
• High Beam Bulb: H1 halogen
• Bulbs Included: Yes
• Attachment Method: Bolt-on (factory mounting locations)
• Quantity: Sold as a pair (driver side and passenger side)
• Compatible Factory Light Type: Halogen ONLY - does NOT fit factory HID-equipped models
• Voltage: 12V
• Compliance: DOT / SAE / FMVSS No. 108
• Warranty: 1-year manufacturer defect warranty
• UPC: 846959047389

Included Components

• 2x ANZO projector headlight assemblies with LED plank DRL (driver side and passenger side)
• 2x H7 halogen low beam bulbs
• 2x H1 halogen high beam bulbs

Product Description

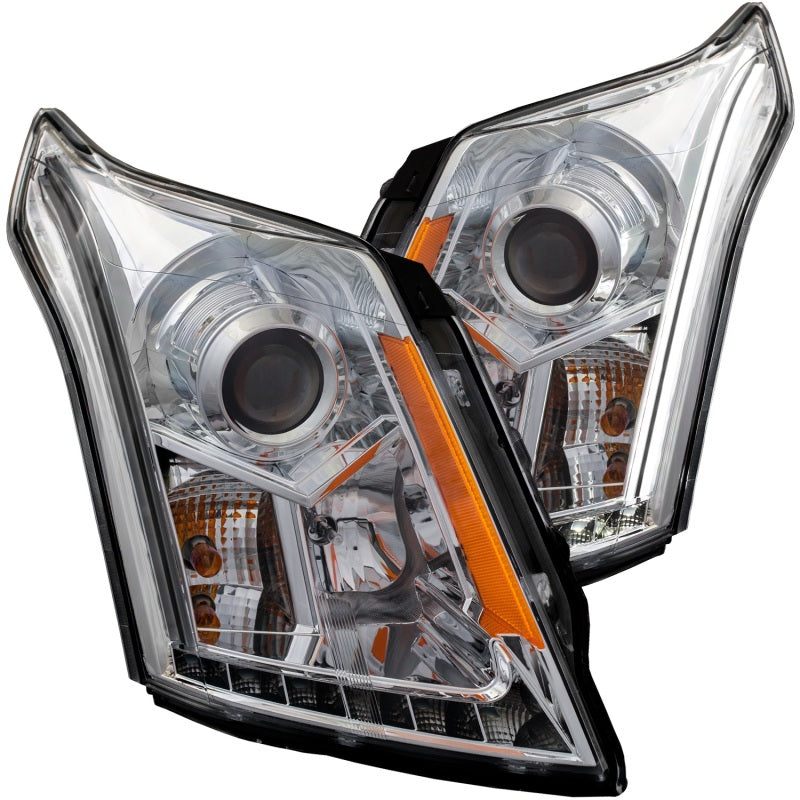

The ANZO 111307 is a projector headlight set with plank-style LED daytime running lights for the 2010-2016 Cadillac SRX, designed specifically for halogen-equipped models. These assemblies address a well-documented limitation of the factory SRX halogen headlight system - widely regarded as producing inadequate illumination for a vehicle of the SRX's class - by upgrading the optical system to a projector lens design that delivers a more controlled, focused beam pattern compared to the standard reflector housings.

The signature feature of the 111307 is the plank-style LED accent integrated into each assembly. Horizontal LED strips illuminate across the lower portion of each headlight, creating a layered, modern light signature that updates the SRX's front-end appearance with a contemporary DRL look. The chrome housing and clear lens complete the visual upgrade, exposing the projector optic and LED plank detail in a way the factory amber-accented housings do not.

These headlights are compatible with halogen-equipped SRX models only - they do not fit SRX trims equipped with factory HID (xenon) headlights. The low beam is H7 and the high beam is H1; both are halogen and are included in the kit, but are not the same bulb specifications as the OEM factory units. Installation requires bumper cover removal on the SRX platform to access the headlight mounting points. Headlight aim adjustment should be performed after installation. The assemblies are DOT compliant to SAE standards and are backed by ANZO's 1-year manufacturer defect warranty. Sold as a matched pair.
