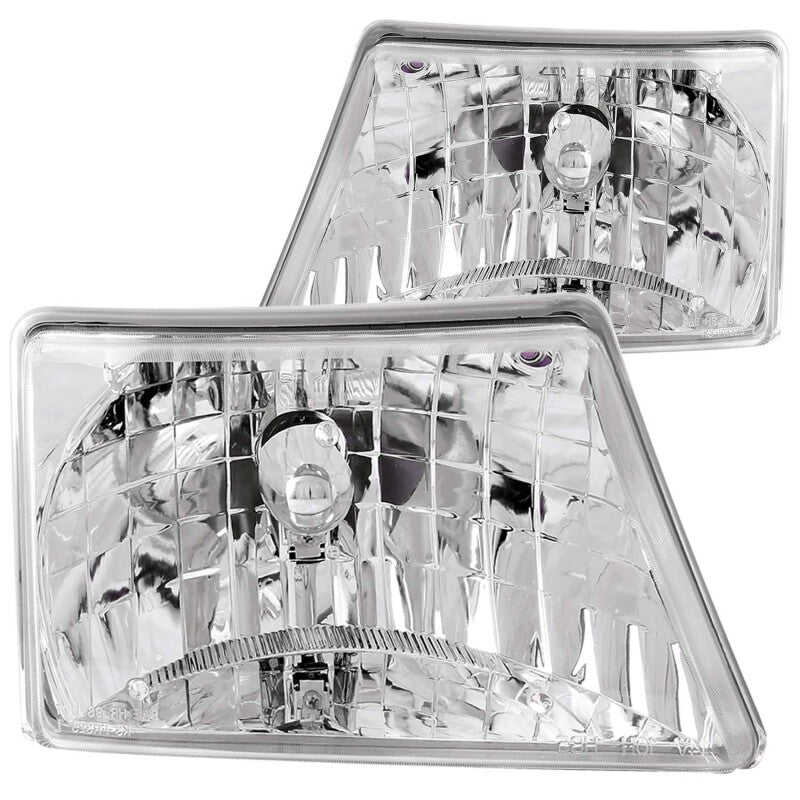

ANZO 111037 Chrome Crystal Headlights Clear Lens Pair 1998-2000 Ford Ranger

Vehicle Fitment

• 1998-2000 Ford Ranger - All Trims (Base, Splash, Sport, STX, XL, XLT, and all other available sub-trims); all cab styles (Regular Cab, SuperCab)

Fitment Notes

• Fits the 1998-2000 Ford Ranger only - the 1998 model year introduced a significant front-end redesign that changed the headlight housing shape; these assemblies are NOT compatible with the 1993-1997 Ranger (use ANZO 111036 for those model years) and are not interchangeable between generations
• Direct plug-and-play replacement using the factory 9007 (HB5) wiring harness connector and stock mounting locations - no drilling, cutting, wiring modifications, or relay kits are required
• Installation hardware is NOT included - the headlights install using the factory mounting hardware; retain all original mounting screws, adjusters, and clips during removal of the stock headlights
• Headlight aim adjustment should be performed after installation to ensure the beam pattern is correctly directed for safe road illumination; use the factory aiming screws retained from the original headlight assemblies

Features

• Crystal clear polycarbonate lens - replaces the factory lens with an optically clear surface that exposes the chrome inner reflector for a cleaner, more modern appearance; eliminates the ribbed or patterned texture of the original factory lens
• Chrome electroplated inner housing - the polished chrome reflector maximizes light output from the halogen bulb and delivers bright, even forward illumination while providing a reflective visual depth visible through the clear lens
• Single 9007 (HB5) dual-filament halogen bulb per side - provides both high beam and low beam functions through a single dual-filament capsule, maintaining the factory single-bulb wiring configuration for straightforward plug-and-play installation with no relay or adapter required
• OEM-style weather-tight wiring connector - the factory-matched harness plug seals against moisture and weather for reliable electrical performance in all driving conditions
• Fully sealed housing - tested in a thermohygrometer (temperature and humidity chamber) and rain-resistance tester to verify protection of internal components from moisture, dust, and temperature extremes
• CAD/CAM-engineered dimensional accuracy - ANZO designs headlight assemblies using computer-aided design and manufacturing processes, with mold accuracy validated on three-dimensional testing equipment to ensure precise fit at factory mounting points with no gaps or misalignment against the surrounding grille and fender panels
• DOT compliant to SAE standards and FMVSS No. 108 - 100% street legal for use on public roads
• Backed by ANZO's 1-year limited warranty against manufacturer defects

Specifications

• Part Type: Crystal headlight assemblies (reflector style)
• Housing Color: Chrome
• Housing Material: Plastic
• Lens Color: Clear
• Lens Material: Polycarbonate
• Bulb Type: Halogen - 9007 (HB5) dual-filament high/low beam
• Wattage: 60/55W
• Number of Bulb Openings: 2 (one per headlight)
• Number of Bulbs: 2 (one per headlight)
• Bulbs Included: Yes
• Installation Hardware Included: No
• Attachment Method: Bolt-on (factory mounting locations)
• Quantity: Sold as a pair (driver side and passenger side)
• Voltage: 12V
• Weight: ~6.0 lbs
• Compliance: DOT / SAE / FMVSS No. 108
• Warranty: 1-year manufacturer defect warranty
• UPC: 810169012628

Included Components

• 2x ANZO crystal headlight assemblies (driver side and passenger side)
• 2x Halogen bulbs - 9007 (HB5) 60/55W
• Note: Mounting hardware is NOT included - factory hardware is reused during installation

Product Description

The ANZO 111037 is a crystal headlight pair for the 1998-2000 Ford Ranger, covering the restyled second-generation Ranger front end that debuted for the 1998 model year. These assemblies replace the factory headlights with clear-lens, chrome-housing units that provide a cleaner, more modern look while maintaining full plug-and-play compatibility with the factory wiring and mounting hardware.

These are reflector-style crystal headlights - no projector optic and no halo ring - making them a direct, visually upgraded replacement for the stock units. The clear polycarbonate lens eliminates the ribbed factory lens surface and exposes the electroplated chrome inner housing, while the 9007 (HB5) dual-filament halogen bulb handles both high and low beam through the factory single-plug harness connector. The assemblies seat into the factory mounting locations using the original hardware, which is retained from the stock headlights since no mounting hardware is included in the kit.

It is important to note that 111037 fits only the 1998-2000 Ranger - it is not interchangeable with 111036, which covers the 1993-1997 Ranger. The 1998 redesign changed the headlight housing geometry, and the two generations require separate assemblies. All ANZO assemblies are sealed, DOT compliant to SAE standards and FMVSS No. 108, and backed by a 1-year manufacturer defect warranty. Sold as a matched pair.
