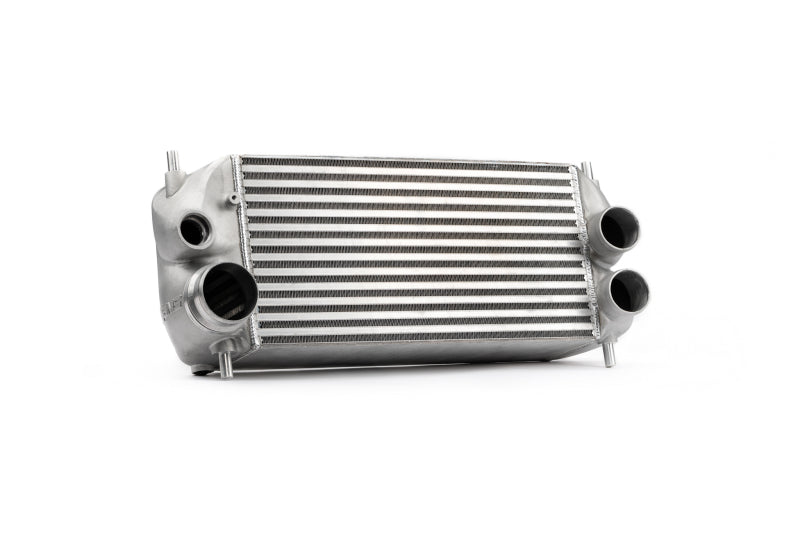

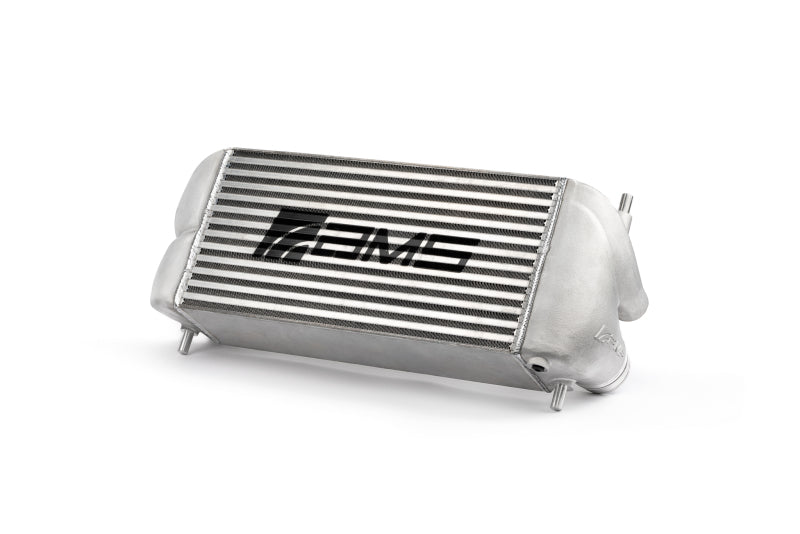

AMS AMS.55.09.0001-1 Silver Logo Intercooler for 2015-2026 Ford F-150/Raptor

Vehicle Fitment

• 2015-2026 Ford F-150, 2.7L EcoBoost I4, RWD/4WD, all applicable trims equipped with 2.7L EcoBoost
• 2015-2026 Ford F-150, 3.5L EcoBoost V6, RWD/4WD, all applicable trims equipped with 3.5L EcoBoost
• 2017-2026 Ford F-150 Raptor, 3.5L EcoBoost V6, 4WD
• 2021-2026 Ford F-150 PowerBoost, 3.5L EcoBoost V6 Hybrid, 4WD

Fitment Notes

• Stock-location intercooler designed for Ford F-150 and Raptor 2.7L and 3.5L EcoBoost applications.
• 2021-2026 F-150 PowerBoost models require the OEM external speaker to be relocated or removed for intercooler installation.

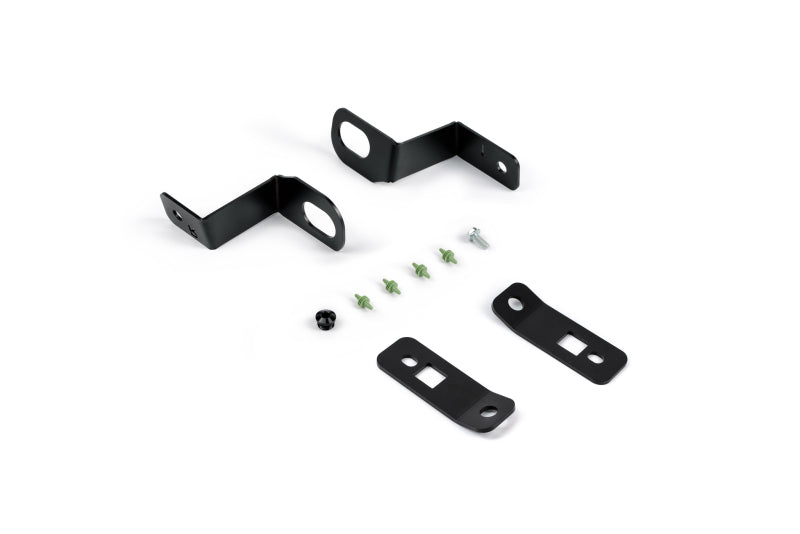

• AMS external speaker relocation bracket AMS.55.09.0001-5 is available separately for PowerBoost applications.
• Raptor fitment is limited to the 3.5L EcoBoost engine.
• Part is the silver, uncoated finish with AMS logo configuration.

Features

• OEM-location intercooler engineered specifically for the EcoBoost F-150/Raptor platform.
• 21 x 10.25 x 5.5-inch dense bar-and-plate intercooler core.
• 115% larger core volume than the factory intercooler.
• Up to 80°F cooler charge-air temperature under AMS test conditions.
• Up to 93% intercooler efficiency compared with as low as 59% for the OEM unit.
• 20.5% reduction in pressure drop compared with the OEM intercooler.
• Tested 12.3 WHP gain with no ECU calibration changes.
• Flow-optimized cast end tanks improve charge-air distribution.
• Chamfered inlets and smooth, sharp-edge-free airflow path support efficient flow.

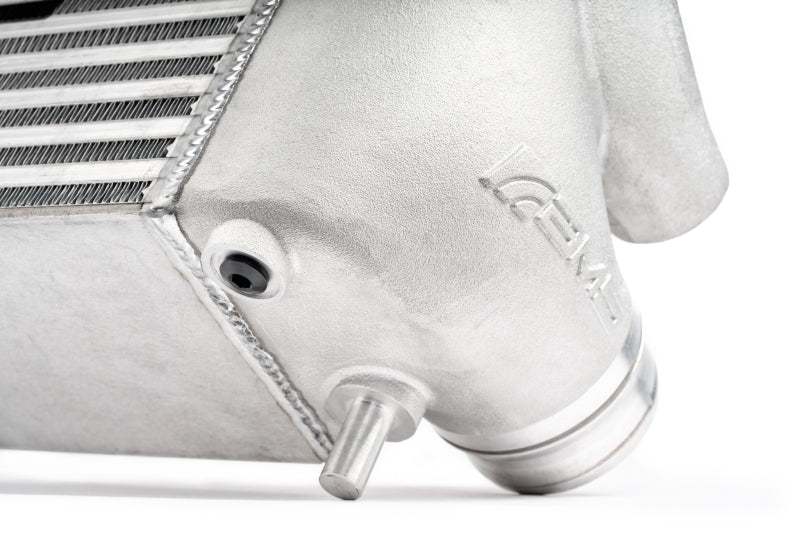

• Integrated drain port simplifies intercooler servicing.
• Retains factory mounting locations and factory piping fitment.
• Compatible with popular aftermarket blow-off valve applications including Turbosmart VeePort.

Specifications

• Brand: AMS Performance
• Part Number: AMS.55.09.0001-1
• Product Type: Stock-location intercooler
• Core Construction: Dense bar-and-plate
• Core Size: 21 x 10.25 x 5.5 inches
• Core Volume: 115% larger than OEM
• Finish: Silver, uncoated
• Logo: AMS logo
• Installation Position: OEM intercooler location
• Mounting: Factory mounting locations
• Weight: 38 lbs
• Package Dimensions: 32 x 16 x 13 inches

Included Components

• 1x AMS Performance Stock-Location Intercooler, Silver with AMS Logo

Product Description

The AMS Performance AMS.55.09.0001-1 Stock Location Intercooler is engineered as a high-performance charge-air cooling upgrade for Ford F-150 and Raptor EcoBoost applications. Its large 21 x 10.25 x 5.5-inch bar-and-plate core provides 115% greater core volume than the factory intercooler, helping reduce charge-air temperatures and improve intercooler efficiency during demanding operation. The OEM-location design maintains factory mounting locations and piping fitment for a clean, direct-fit installation.

AMS engineered the intercooler with flow-optimized cast end tanks, chamfered inlets, a smooth airflow path, and an integrated drain port. Testing demonstrated up to an 80°F charge-air temperature advantage, up to 93% intercooler efficiency, a 20.5% pressure-drop reduction, and a 12.3 WHP improvement without ECU calibration changes. The silver uncoated finish with AMS logo provides the appearance-specific configuration represented by part number AMS.55.09.0001-1.

The intercooler is applicable to 2.7L and 3.5L EcoBoost F-150 models, 3.5L EcoBoost Raptor models, and 3.5L PowerBoost hybrid F-150 models within the verified year ranges. PowerBoost applications require the factory external speaker to be relocated or removed for clearance; the AMS external speaker relocation bracket is available separately.
